cabo multiplexado al triplex 3x16mm2 aluminum xlpe cable
Cabo Multiplex 1kv

1.1 APPLICATION

The self-sustaining multiplexed power cable is designed for power distribution cables for voltages up to 0.6/1 kV, in permanent aerial installations to posts or building facings.
Power Multiplexed Self-supporting cables with PE Extruded Insulation (thermoplastic) or XLPE (Thermoset) for voltages up to 0.6 / 1 kV.
Suitable for all urban network of secondary distribution and also for rural secondary

1.2 CONSTRUCTION

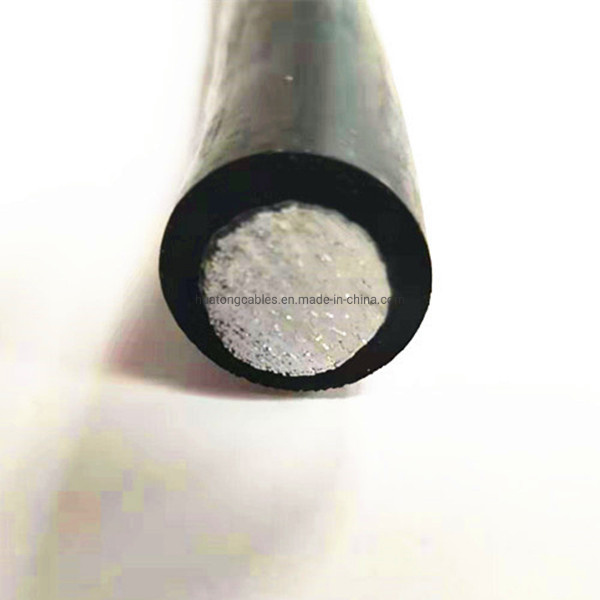

Phase conductor: Aluminum wires 1350, stringing class 2, compact, acc. to NM 280.

Insulation: Polyethylene compound (PE) 70° or cross-linked polyethylene (XLPE) 90°C, weather resistant.
Identificación:
1 phase: black
2 phases: black and gray
3 phases: black, grey and red

Neutral conductor:
Bare aluminum (Al), aluminum alloy (CAL), or steel core (ACSR) String class 2 regular circled
Neutral conductor insulation: if requested, in XLPE in light blue.

1.3 ELECTRICAL CHARACTERISTICS

Maximum Operating Temperatures
In continuous regime: 90°C
In overload: 130°C
In short circuit: 250°C

1.4 Reference Standards

ABNT NBR 8182 – Self-sustained multiplex power cables with extruded insulation of PE or XLPE, for voltages up to 0,6/1 kV – Performance requirements.
ABNT NBR NM 280 – Conductors of insulated cables (IEC 60228, MOD).
ABNT NBR 10298 – Bare cables with alloy aluminum-magnesium-silicon, for overhead lines – Specification.

1.5 Conditioning

In rolls of 100 m or reels, for section up to 25 mm². For other constructions, in reels.

1.6 CONDUCTOR INDENTIFICATION:

DUPLEX: Black

TRIPLEX: Black – Gray

QUADRUPLEX: Black – Gray – Red

NEUTRAL WHEN INSULATED: Light Blue

Conduspar – Multiplex Cable 1 kV

Nominal Dimensions

*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.
