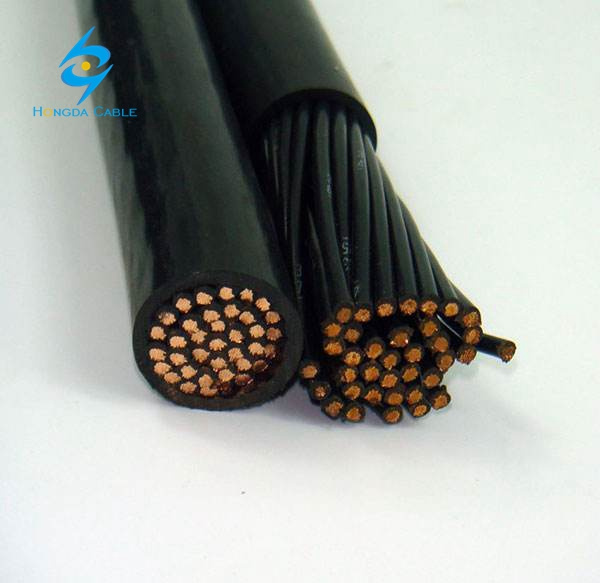

XTU/XLPE Insulation Copper tape Shield PVC sheath Electric cable RVOV-K
RVOV-K Cable
Applicable Standard:IEC-60502
DESCRIPTION
Electric cables for industrial use with rated voltage 0.6/1 kV, shielded with PVC sheath.
APPLICATION
Suitable for connecting industrial equipment.
Constructive characteristics:
- Conductor: Flexible bare copper, class 5 according to UNE-EN 60228
- Insulation: Cross linked polyethylene, type XLPE according to IEC 60502-1
- Formation: Cored stranded in layers
- Inner sheath: PVC type ST2, color black according to IEC 60502-1
- Shield: Copper tape of thickness 0.10 mm. Overlap ≥ 20%
- Outer sheath: PVC type ST2, color black according to IEC 60502-1
Technical characteristics:
- Rated voltage: 0.6 / 1 kV
- Test voltage: 3.500 V
- Operating temperature: -15ºC to +90ºC
- Maximum short-circuit temperature: 250ºC (max. 5 s)
- Bending radius: 10 Ø
|
Section |
Resistance |
Insulation |
Sheath |
Outer Ø |
Weight |
| 2×1.5 | 13.3 | 0.7 | 1.4 | 11.0 | 154 |
| 2×2.5 | 7.98 | 0.7 | 1.4 | 12.1 | 195 |
| 2×4 | 4.95 | 0.7 | 1.4 | 13.2 | 251 |
| 2×6 | 3.30 | 0.7 | 1.4 | 13.9 | 291 |
| 2×10 | 1.91 | 0.7 | 1.4 | 15.8 | 409 |
| 2×16 | 1.21 | 0.7 | 1.5 | 18.7 | 560 |
| 2×25 | 0.780 | 0.9 | 1.6 | 21.5 | 850 |
| 2×35 | 0.554 | 0.9 | 1.7 | 24.4 | 1.135 |
| 3×2.5 | 7.98 | 0.7 | 1.4 | 13.0 | 232 |
| 3×4 | 4.95 | 0.7 | 1.4 | 13.6 | 284 |
| 4×1.5 | 13.3 | 0.7 | 1.4 | 12.7 | 214 |
| 4×2.5 | 7.98 | 0.7 | 1.4 | 13.7 | 269 |
| 4×4 | 4.95 | 0.7 | 1.4 | 14.8 | 342 |
| 4×6 | 3.30 | 0.7 | 1.5 | 16.4 | 443 |
| 4×10 | 1.91 | 0.7 | 1.5 | 18.5 | 625 |
| 4×16 | 1.21 | 0.7 | 1.5 | 21.3 | 877 |
| 4×25 | 0.780 | 0.9 | 1.7 | 25.7 | 1.334 |
| 4×35 | 0.554 | 0.9 | 1.8 | 28.6 | 1.766 |
| 5×2.5 | 7.98 | 0.7 | 1.4 | 14.8 | 310 |
| 5×4 | 4.95 | 0.7 | 1.4 | 16.3 | 407 |
| 6×1.5 | 13.3 | 0.7 | 1.4 | 14.1 | 255 |
| 6×2.5 | 7.98 | 0.7 | 1.4 | 15.2 | 332 |
| 6×4 | 4.95 | 0.7 | 1.4 | 16.7 | 433 |
| 7×1.5 | 13.3 | 0.7 | 1.4 | 14.4 | 288 |
| 7×2.5 | 7.98 | 0.7 | 1.4 | 15.4 | 356 |
| 7×4 | 4.95 | 0.7 | 1.5 | 17.5 | 500 |
| 12×1.5 | 13.3 | 0.7 | 1.5 | 18.1 | 454 |
| 12×2.5 | 7.98 | 0.7 | 1.6 | 20.1 | 613 |
| 12×4 | 4.95 | 0.7 | 1.7 | 22.4 | 823 |
| 12×6 | 3.30 | 0.7 | 1.7 | 24.7 | 1.084 |
| 14×1.5 | 13.3 | 0.7 | 1.5 | 19.0 | 530 |
| 14×2.5 | 7.98 | 0.7 | 1.6 | 21.0 | 675 |
