XLPE Insulated (Twisted Cable) Low Voltage Aluminium Bundled Overhead Cable NFA2X-T

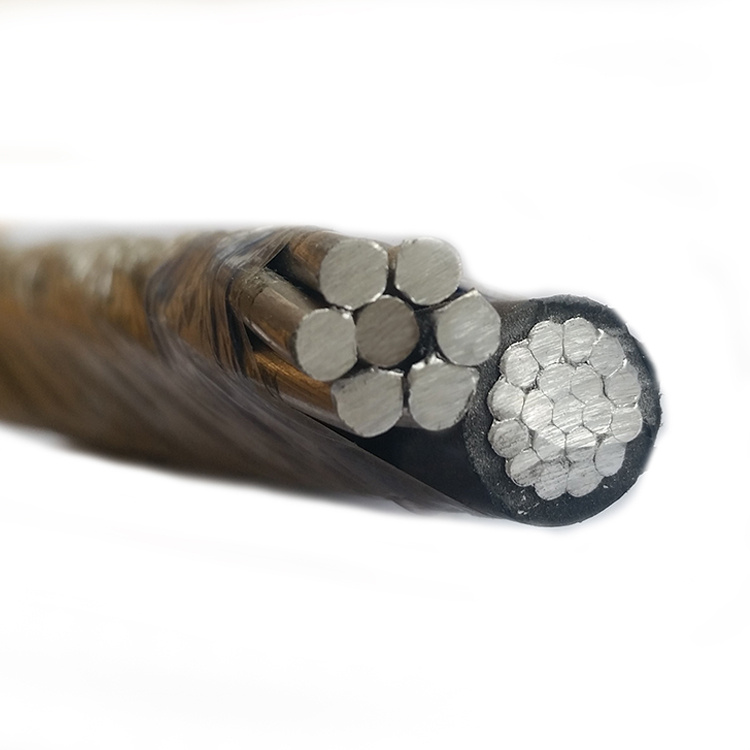

XLPE Insulated (Twisted Cable) Low Voltage Aluminium Bundled Overhead Cable NFA2X-T image

Get Latest Price Request a quote

Product Details

Model NO.

NFA2X-T cable

Current

DC & AC

Insulation Material

XLPE

Sheath Material

Crosslinking

Material Shape

Round Wire

Wire Core Material

Aluminum

Certification

ISO, CCC

Model

Jklyj

Brand

Hongda Cable

Standard

IEC, NFC33 209, Spln 42-10

Conductor

Stranded Aluminum AAC

Messenger

Aluminum Alloy AAAC

Insulation

Extruded XLPE

Transport Package

Wooden Drum or as Customer Requirement

Specification

6mm2 to 120mm2

Trademark

Hongda Cable

Origin

China

HS Code

8544492100

Production Capacity

1200km/Month

Packaging & Delivery

Package Size

100.00cm * 10.00cm * 10.00cm

Package Gross Weight

5.000kg

Product Description

XLPE Insulated (Twisted Cable) Low Voltage Aluminium Bundled Overhead Cable NFA2X-T

1. 0.6/1kV, NFA2X-T

1.1 Application

Bundle conductor for overhead distribution network without and with public lighting. (between pole to pole)

1.2 Construction:

Conductor Phase	Stranded All Aluminium conductor (AAC)
Neutral/Messenger	Stranded All Alloy Aluminium Conductor (AAAC)
Insulation	Extrude of XLPE, capable for continous operation at maximum cable’s temperature.

1.3 Classification:

Low Voltage Cable Aerial Bundled Conductor, Twisted Cable

Physical Properties
Cable size	Insulation Thickness			Approx Maximum Diameter			Approx. Net. Weight	Standard Length
Cable size	Phase	Neutral / Messenger	Public Lighting	Phase	Neutral/Messenger	Public Lighting	Approx. Net. Weight	Standard Length
mm2	mm	mm	mm	mm	mm	mm	kg/km	m
2×25+25	1.4	1.4	–	10.0	10.0	10.0	338	500
2×35+25	1.6	1.4	–	11.2	10.0	10.0	394	500
2×50+35	1.6	1.6	–	12.6	11.2	11.2	526	500
2×70+50	1.8	1.6	–	15.4	12.6	12.6	760	500
2×95+70	2.0	1.8	–	17.0	15.4	15.4	975	500
3×25+25	1.4	1.4	–	10.0	10.0	10.0	452	500
3×35+25	1.6	1.4	–	11.2	10.0	10.0	537	500
3×50+35	1.6	1.6	–	12.6	11.2	11.2	717	500
3×70+50	1.8	1.6	–	15.4	12.6	12.6	1057	500
3×95+70	2.0	1.8	–	17.0	15.4	15.4	1360	500
3×25+25+2×16	1.4	1.4	1.2	10.0	10.0	8.1	602	500
3×35+25+2×16	1.6	1.4	1.2	11.2	10.0	8.1	687	500
3×50+35+2×16	1.6	1.6	1.2	12.6	11.2	8.1	867	500
3×70+50+2×16	1.8	1.6	1.2	15.4	12.6	8.1	1207	500
3×95+70+2×16	2.0	1.8	1.2	17.0	15.4	8.1	1510	500
3×25+25+16	1.4	1.4	1.2	10.0	10.0	8.1	527	500
3×35+25+16	1.6	1.4	1.2	11.2	10.0	8.1	612	500
3×50+35+16	1.6	1.6	1.2	12.6	11.2	8.1	792	500
3×70+50+16	1.8	1.6	1.2	15.4	12.6	8.1	1132	500
3×95+70+16	2.0	1.8	1.2	17.0	15.4	8.1	1435	500

Tips: Symbols According to TS HD 361.S3
Symbols	Materials
	Insulating and Unmetalic Sheath Materials
E	Polyethylene
N	Polychloroprene
V	PVC
X	Cross-linked polyethylene
Z1	Thermoplastik material has a suitable low level corrosive gas emission
	Matelic Covers
AT	Aluminium screen
A8	Aluminium screen over each cores
C4	Copper wire braiding over core
C7	Copper screen from the ribbon or tape or copper wire
C8	Over each core as C7
	Armouring
Z2	Galvenized or plain round steel wire armour
Z3	Galvenized or plain flat steel wire armour
Z4	Galvenized or plain steel tape armour
Y2	Round aliminium wire armour
Y3	Flat aliminium wire armour
	Special Construction
Without symbols	Circular constructed cable
H	Sheathed or unsheathed separable flat constructed cable
H2	Unseparable flat constructed cables and cordon
H4	Multicore flat cable with non insulated one conductor
H5	Stranded cable with two or more cores together
H6	Flat cable with two or more
	Conductor Material
Without symbols	Copper
-A	Aluminium
	Conductor Shape
-F	Twisted cable or twisted conductor of cordon
-H	Twisted cable or high level twisted conductor of cordon
-K	One cable conductor for fixed installation
-R	Rigid, round conductor braided
-S	Rigid, with sector shape conductor, braided
-U	Rigid, round conductor solid
-W	Rigid, with sector shaped conductor, solid
-Y	Conductor with the shape of the bride wire

*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.
