Uvg02acm Instrument Cable 0.5 1.0 1.5
Uvg02acm Instrument Cable 0.5 1.0 1.5 image
Get Latest Price Request a quote
You May Like
Product Details
Model NO.
BV
Current
AC Cable
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC
Model
YJV
Brand
OEM
Transport Package
in Drum or in Coil
Specification
4**10
Trademark
OEM
Origin
Henan
HS Code
8544492100
Production Capacity
10000 M Per Day
Product Description
Areas of Use
Instrument cable is suitable for instruments and other electrical equipment in the signal transmission and control circuit.
Usedfor communicationandinstrumentationpurposes inindustries likeoil exploration, cement,paper, steel,powergenerationas well as inintrinsically safe
systems inhazardous areas likepetrochemicalplants andthermalpowerplants tomonitor measuringequipment inprocess automationapplications. HFFR
types areless flammableincaseof fire, mostly selfextinguishing,havelow smokedensityandtheydonotemitpoisonous andcorrosivegassesduringfire.
Armouredtypesprovide mechanical strengthandprotects thecablecoreagainstouter mechanical effects.

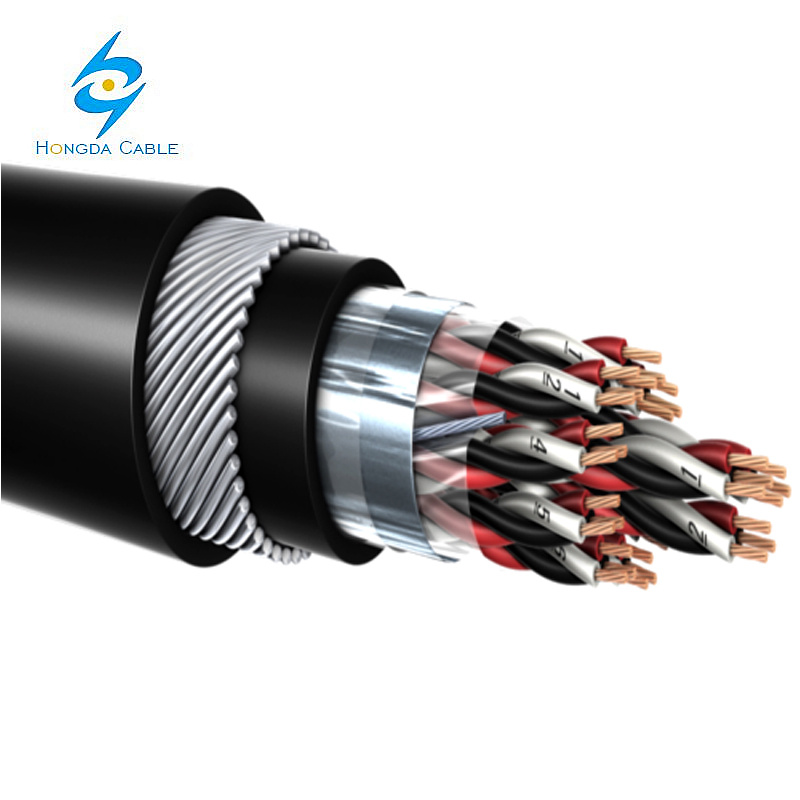

CableConstruction
Conductor StrandedAnnealedCopper (IEC/EN 60228,Class2)
Insulation XLPE(EN 50290-2-29)
CoreColors Pair: Black / White, NumberedTriples: Balck / White/ Red, Numbered Quad: Black /
White/ Red/ Blue, Numbered
Separator PETFoil
IndividualScreen Al-PETFoil (with0.60 mm TinnedCopper DrainWire)
Lay-up Shieldedpairs / triples /quads arestrandedinlayers
Separator PETFoil
OverallScreen Al-PETFoil (with7x0.30 mm TinnedCopper DrainWire)
InnerSheath HalogenFreeFlame RetardantCompound(HFFR/LSZH/LSOH/FRNC) (EN 50290-2-27)
Armour Round GalvanizedSteel Wire(Min. Diameter0.90 mm ±0.02 mm)
OuterSheath HalogenFreeFlame RetardantCompound(HFFR /LSZH/LSOH/FRNC) (EN 50290-2-27),
RAL9005- Black, RAL5015- Blue(other colorsuponrequest)
ReferenceStandards BS/EN 50288-7
TechnicalProperties
OperatingVoltage 500V*
TestVoltage Core-Core:1000V;Core-Screen:1000V
Conductor Resistance 0.50 mm²- ≤36 Ω/km;0.75 mm²- ≤24.5 Ω/km;1.00 mm²- ≤18.1 Ω/km;1.30 mm²- ≤14.2 Ω/km;1.50 mm²- ≤12.1 Ω/km;2.50 mm²- ≤7.41 Ω/km
Insulation Resistance >5000 M.Ωxkm
Capacitance Unbalance(800 Hz) ≤500pF/500m
Capacitance(@800Hz) ≤115nF/km (Capacitancevalues may increaseby20%upto4pairs)
L/R Ratio 0.50 mm²..1.00 mm²- ≤25µH/Ω;1.30 mm²..1.50 mm²- ≤40µH/Ω;2.50 mm²- ≤60
µH/Ω
Temperature Range Fixed: -40°C……..+90°C,Flexible: -5°C……..+50°C
Flame Retardancy IEC/EN 60332-1, IEC/EN 60332-3-24(CATC)
Smoke Density IEC/EN 61034-1
Amountof HalogenAcidGas IEC/EN 60754-1
CorrosiveGases Measurement IEC/EN 60754-2
Oil Resistance IEC/EN 60811-404,ASTM No2oil70°C4hoursMin.Bending Radius (Fixed) 12xCable Diameter
We are China Uvg02acm Instrument Cable 0.5 1.0 1.5 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
