U500 SV H07V-K Standard cables and wires Building Souple Cable
Wires and wiring cables are used to supply power for lighting and electric appliances and equipment in residences, offices, and similar environments.
General Information
Single conductor PVC (Polyvinyl Chloride) insulated building wire is rated 600 volts as defined in the Electrical Code. They are designed for dry and wet locations.
Specifications
Conductors – stranded soft annealed copper.
Insulation – PVC insulation.
Product Features
Tough and Light weight ‘
Oil resistant
Easy to terminate ‘
Flame retardant
Good heat and moisture resistant ‘
Resistant to most chemicals
Technical Data of Type H07v-k flexible cable
| Nominal Cross Section |
Approx. No & Nom. strand Diameter | Diameter of Conductor Approx. | Insulation Thickness | Overall Diameter |
Weight of Finished Cable Approx. | Maximum DC Resistance at 20 ° C |
|---|---|---|---|---|---|---|
| mm2 | No x mm | mm | mm | mm | Kg/Km | Ohm/Km |
| 1×0.5 | 16×0.2 | 0.93 | 0.6 | 2.2 | 9.2 | 39.0 |
| 1×0.75 | 24×0.2 | 1.12 | 0.6 | 2.4 | 12.1 | 26.0 |
| 1×1.0 | 32×0.2 | 1.3 | 0.6 | 2.6 | 15 | 19.5 |
| 1×1.5 | 30×0.25 | 1.7 | 0.7 | 3.4 | 23 | 13.3 |
| 1×2.5 | 49×0.25 | 2.2 | 0.8 | 4.1 | 35 | 7.98 |
| 1×4 | 56×0.30 | 3.1 | 0.8 | 4.8 | 51 | 4.95 |
| 1×6 | 84×0.30 | 3.8 | 0.8 | 5.3 | 71 | 3.30 |
| 1×10 | 77×0.40 | 5.0 | 1.0 | 6.8 | 125 | 1.91 |
| 1×16 | 119×0.40 | 6.3 | 1.0 | 8.1 | 195 | 1.21 |
| 1×25 | 182×0.40 | 6.4 | 1.2 | 9.2 | 300 | 0.780 |
| 1×35 | 259×0.40 | 9.2 | 1.2 | 10.5 | 410 | 0.554 |
| 1×50 | 380×0.40 | 11.0 | 1.4 | 13.9 | 585 | 0.386 |
| 1×70 | 342×0.50 | 13.0 | 1.4 | 16.0 | 810 | 0.272 |
| 1×95 | 437×0.50 | 15.2 | 1.6 | 18.2 | 1065 | 0.206 |
| 1×120 | 570×0.50 | 17.0 | 1.6 | 20.2 | 1335 | 0.161 |
| 1×150 | 703×0.50 | 19.0 | 1.8 | 22.5 | 1600 | 0.129 |
| 1×185 | 851×0.50 | 21.0 | 2.0 | 24.9 | 2000 | 0.106 |
| 1×240 | 1147×0.50 | 24.0 | 2.2 | 28.4 | 2500 | 0.0801 |
Cable accept cut in different length.
Our Service
1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
Contact Us
Ms. Vivian Yuan
We are China U500 Sv H07V-K Standard Cables and Wires Building Souple Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: H07V-K, Henan Hongda Cable Co., Ltd., U500 SvSimilar Or Related
-

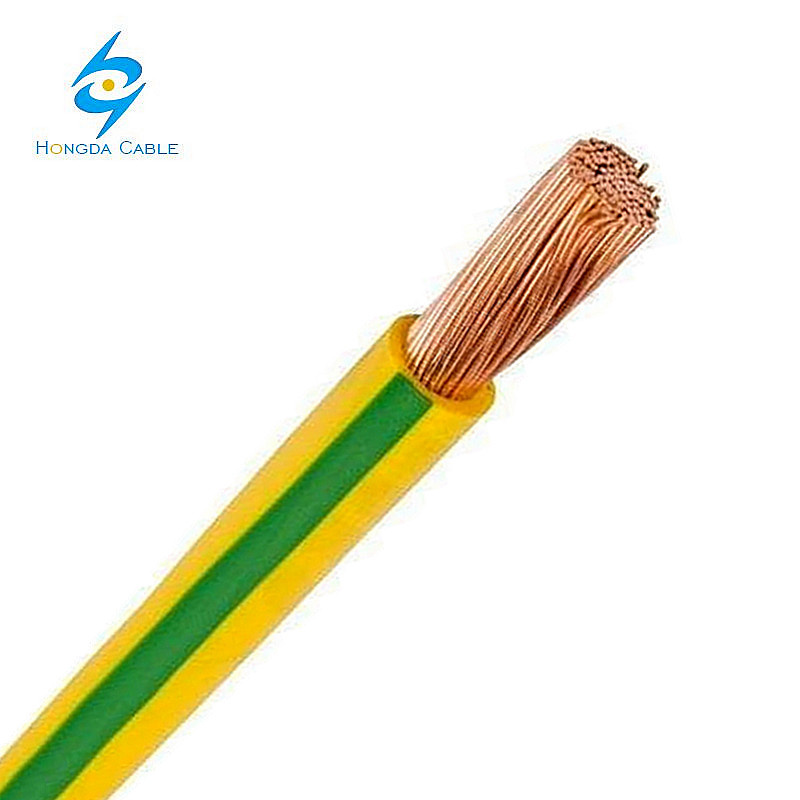

450/750V Class 5 PVC Insulated Soft Flexible Cable Copper Electric Wire H07V-K Nyaf
-
