Tfr-Cvvs 0.6/1kv PVC Insulated Flame Retardant Sheathed Cvv Control Cable

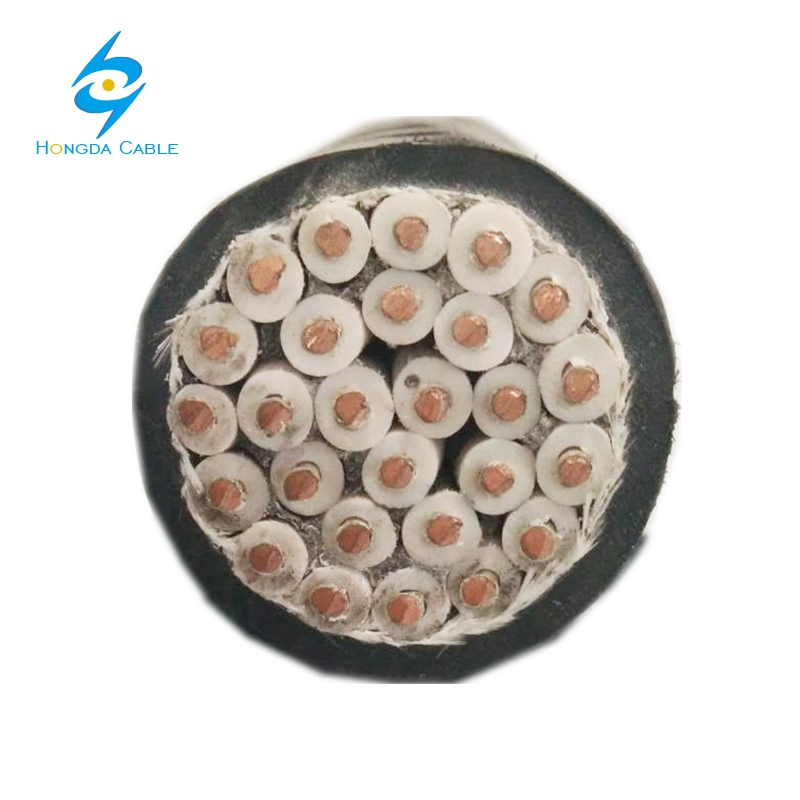

Tfr-Cvvs 0.6/1kv PVC Insulated Flame Retardant Sheathed Cvv Control Cable image

Get Latest Price Request a quote

Product Details

Model NO.

TFR-CVV

Application

Underground, Electrical Equipment, Station Control Circuits

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

PVC

Material Shape

Round Wire

Range of Application

Flame Retardant

Certification

ISO9001, CCC, SGS

Brand

Hongda

Standard

IEC 60332,1, BS5307

Rated Voltage

0.6/1 Kv DC

Transport Package

Drum or as Customer Require

Specification

0.5mm2 to 2.5mm2

Trademark

Hongda

Origin

China

HS Code

8544492100

Production Capacity

900km/Month

Product Description

TFR-CVVS 0.6/1kV PVC Insulated Flame Retardant Sheathed Cvv Control Cable

APPLICATION

Supervisory electrical equipment, station control circuits. Out door, suitable installation in the wet or dry cable trenches.

CONSTRUCTION

Conductor : Concentric lay strand annealed copper conductor

Insulation : Polyvinyl chloride (PVC) : Black colour with marking number.

Filler : PVC Rod and/or Polypropylene (Nonhygroscopic material) Wrapping Tape : Polyester (Mylar) tape.

Outer Sheath : Black polyvinyl chloride (PVC) .

*** Colours sequence for circuit identification & other colours for outer sheath to special order.

CLASSIFICATION

Maximum conductor temperature 75 C,

Circuit voltage does not exceed 600 volts

OPTIONAL

A Special FR-PVC flame retardant sheath can be supplied.

Cable Design Parameters

No. of Cores	Nominal Cross Sectional Area(Sq. mm)	Nominal Insulation Thickness (mm)	Max. D.C. Conductor Resistance at 20°C(Ω/km)	Nominal Thickness of Sheath (mm)	Maximum Overall Dimensions (mm)
1	0.5	0.60	39.0	0.9	4.3
2	0.5	0.60	39.0	0.9	6.9
3	0.5	0.60	39.0	0.9	7.3
4	0.5	0.60	39.0	0.9	8.0
5	0.5	0.60	39.0	0.9	8.7
1	0.75	0.60	26.0	0.9	4.5
2	0.75	0.60	26.0	0.9	7.3
3	0.75	0.60	26.0	0.9	7.7
4	0.75	0.60	26.0	0.9	8.4
5	0.75	0.60	26.0	0.9	9.2
1	1	0.60	19.5	0.9	4.7
2	1	0.60	19.5	0.9	7.6
3	1	0.60	19.5	0.9	8.1
4	1	0.60	19.5	0.9	8.8
5	1	0.60	19.5	1.0	9.6
1	1.5	0.60	13.3	0.9	5.4
2	1.5	0.60	13.3	0.9	8.9
3	1.5	0.60	13.3	0.9	9.4
4	1.5	0.60	13.3	1.0	10.4
5	1.5	0.60	13.3	1.0	11.4
1	2.5	0.70	7.98	1.0	6.2
2	2.5	0.70	7.98	1.0	10.3
3	2.5	0.70	7.98	1.0	10.9
4	2.5	0.70	7.98	1.0	12.0
5	2.5	0.70	7.98	1.0	13.2
1	4	0.80	4.95	1.0	6.8
2	4	0.80	4.95	1.0	11.6
3	4	0.80	4.95	1.0	12.4
4	4	0.80	4.95	1.0	13.6
5	4	0.80	4.95	1.1	15.3
1	6	0.80	3.30	1.1	7.5
2	6	0.80	3.30	1.1	13.0
3	6	0.80	3.30	1.2	13.8
4	6	0.80	3.30	1.2	15.5
1	10	1.00	1.91	1.3	9.4
2	10	1.00	1.91	1.3	16.5
3	10	1.00	1.91	1.4	17.7
4	10	1.00	1.91	1.4	19.5
1	16	1.00	1.21	1.4	10.9
2	16	1.00	1.21	1.4	19.4
3	16	1.00	1.21	1.4	20.6
4	16	1.00	1.21	1.4	23.0
1	25	1.20	0.780	1.4	13.6
2	25	1.20	0.780	1.4	23.8
3	25	1.20	0.780	1.5	25.6
4	25	1.20	0.780	1.6	28.5
1	35	1.20	0.554	1.6	15.5
2	35	1.20	0.554	1.6	27.2
3	35	1.20	0.554	1.6	29.3
4	35	1.20	0.554	1.7	32.7
1	50	1.40	0.386	2.0	18.1
2	50	1.40	0.386	2.0	32.0
3	50	1.40	0.386	2.0	34.6
4	50	1.40	0.386	2.0	38.6
1	70	1.40	0.272	2.2	20.8
2	70	1.40	0.272	2.2	36.8
3	70	1.40	0.272	2.2	39.6
4	70	1.40	0.272	2.2	44.3
1	95	1.60	0.206	2.4	23.6
2	95	1.60	0.206	2.4	41.8
3	95	1.60	0.206	2.4	47.0
4	95	1.60	0.206	2.4	50.2
1	120	1.60	0.161	2.5	26.0
2	120	1.60	0.161	2.5	46.2
3	120	1.60	0.161	2.5	51.0
4	120	1.60	0.161	2.5	55.7
3	150	1.80	0.129	2.6	54.8
4	150	1.80	0.129	2.6	62.1
3	185	2.00	0.106	2.8	61.2
4	185	2.00	0.106	2.8	68.5
3	240	2.20	0.0801	3.0	69.7
4	240	2.20	0.0801	3.0	77.9
3	300	2.40	0.0641	3.2	75.7
4	300	2.40	0.0641	3.2	84.4

CVVS Control Cable with Copper tape Screening – Applications

Usage:

The power cables with copper screening are used mainly in distribution points of high voltage and very high voltage, for connecting in systems where the resistance to interference (EMC) is required, in the circuits of pulsed supply with frequency converters and everywhere that higher requirement against penetration or radiation of interfering signals is demanded. It is possible to use them in dry or wet environment and for placement into the soil.

The cables can be placed in the environment with the explosion danger (zone 1, 2) providing compliances with the conditions of intrinsic safety according to 60079-11.

Power cable from PVC with copper screening meeting the requirements of EMC

Construction:

1. Conductor Cu conductor of the category 1 or 2 according to IEC 60228

2. Insulation PVC

3. Cable core wrapping by PET foil

4. Bedding PVC

5. Screening Cu tape

6. Sheath PVC

Technical parameters:

Rated voltage U0/U: 0,6/1 kV AC

Highest voltage of the Um system: 1,2 kV AC

Testing voltage between cores: 4 kV AC 5 min

Testing voltage between core and screening: 4 kV AC 5 min

Surrounding temperatures (fixed placement): – 30°C up to + 70°C

Surrounding temperatures (during installation): -5°C up to +50°C

Minimum bending radius (fixed placement): 10D

Basic characteristics:

Self-extinguishing PVC: EN 60332-1-2

Colour marking of cores: HD 308 S2

Sheath colour: black

CVVS Control Cable Parameter

Cores x Section Area	Insulation Thickness	Jacket Thickness	Maximum resistance at 20ºC	Cable Diameter	Copper approx. weight	Cable Approx. Weight	Packing Length
mm2	mm	mm	Ω/km	mm	kg/km	kg/km	m
7 x 1	0.6	1.2	18.10	13.00	115	270	2750
12 x 1	0.6	1.2	18.10	15.50	175	400	2500
19 x 1	0.6	1.2	18.10	17.50	248	520	1750
2 x 1.5	0.7	1.2	12.10	11.00	70	190	2000
3 x 1.5	0.7	1.2	12.10	11.50	86	210	2000
4 x 1.5	0.7	1.2	12.10	12.50	110	250	2000
5 x 1.5	0.7	1.2	12.10	13.50	125	280	2000
7 x 1.5	0.7	1.2	12.10	4.50	153	340	2000
12 x 1.5	0.7	1.2	12.10	17.50	239	510	1750
14 x 1.5	0.7	1.4	12.10	18.50	297	560	1750
19 x 1.5	0.7	1.4	12.10	21.00	347	720	1250
24 x 1.5	0.7	1.4	12.10	24.00	432	1000	1000
27 x 1.5	0.7	1.4	12.10	24.50	477	1000	750
37 x 1.5	0.7	1.4	12.10	27.50	622	1250	750
48 x 1.5	0.7	1.6	12.10	31.50	750	1600	500
2 x 2.5	0.7	1.2	7.41	12.00	93	220	1500
3 x 2.5	0.7	1.2	7.41	12.50	119	260	1500
4 x 2.5	0.7	1.2	7.41	13.50	146	310	1500
5 x 2.5	0.7	1.2	7.41	14.50	173	350	1500
7 x 2.5	0.7	1.2	7.41	15.50	223	420	1500
12 x 2.5	0.7	1.4	7.41	20.00	358	680	1500
19 x 2.5	0.7	1.4	7.41	22.50	529	930	1000
24 x 2.5	0.7	1.4	7.41	26.50	663	1310	750
27 x 2.5	0.7	1.4	7.41	27.00	680	1400	750
2 x 4	0.7	1.2	4.61	13.50	125	290	1000
3 x 4	0.7	1.2	4.61	14.00	165	330	1000
4 x 4	0.7	1.2	4.61	15.00	206	400	1000
5 x 4	0.7	1.2	4.61	16.00	247	460	1000
7 x 4	0.7	1.2	4.61	17.50	325	560	1000
12 x 4	0.7	1.4	4.61	22.50	530	920	1000
2 x 6	0.7	1.2	3.08	14.50	167	350	1500
3 x 6	0.7	1.2	3.08	15.00	210	410	1500
4 x 6	0.7	1.2	3.08	16.00	285	500	1500
5 x 6	0.7	1.2	3.08	17.50	345	590	1500
7 x 6	0.7	1.4	3.08	18.20	430	719	1500
3 x 10	0.8	1.2	1.83	17.50	345	580	1000
3 x 10	0.8	1.4	1.83	18.50	441	710	1000
4 x 10	0.8	1.4	1.83	20.50	540	870	750
5 x 16	0.8	1.4	1.15	20.00	520	830	1500
4 x 16	0.8	1.4	1.15	21.50	671	1020	750
5 x 16	0.8	1.4	1.15	23.50	825	1230	750
