Standard building Wires & Cables Cable THW-90 6mm2 10 mm2
Standard wires & cables <1kV
THW-90 450/750 V less than or equal to 10 mm2
Description
General application in fixed installations, resistant to humidity and heat.
STANDARD
International: IEC 60228
National: NTP 370,252; NTP-IEC 60228; UL 2556
DESCRIPTION
Application:
In fixed installations, in buildings, inside premises with a dry or humid environment, control panel connections and, in general, in all installations that require greater current capacity to the TW-80 cable.
Construction:
1. Conductor: Compressed soft copper, class 2.
2. Insulation: Double layer PVC compound.
Main features:
Good dielectric strength, resistance to moisture, grease, oil and heat up to service temperature. Does not spread VW-1 flame.
Section:
From 2.5 mm2 to 10 mm2.
Packaging:
From 2.5 mm2 to 6 mm2 in 100 meter rolls.
10 mm2 cables on reels.
cable thw Colour:
At the request of the client.
ELECTRICAL CHARACTERISTICS
| Nominal operating voltage Uo / U (Um) | 450/750 V |
| Dielectric strength | 2.5kV |
| Dielectric Rigidity Time Vac to insulation | 5min |
CHARACTERISTICS OF USE
| Maximum operating temperature | 90 ° C |
| Emergency overload temperature | 130 ° C |
| Maximum short-circuit conductor temperature | 250 ° C |
cable thw DIMENSION
| Name | Section | Diam. Conductor (mm) | Insulation Thickness (mm) | Cable Diameter (mm) | Approx. Weight (kg/km) |
| THW-90 2,5 mm2 | 2.5 | 1.9 | 0.8 | 3.6 | 32 |
| THW-90 4 mm2 | 4 | 2.4 | 0.8 | 4.1 | 47 |
| THW-90 6 mm2 | 6 | 3.0 | 0.8 | 4.7 | 67 |
| THW-90 10 mm2 | 10 | 3.7 | 1.1 | 6.0 | 111 |
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact with Vivian Yuan we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
Contact Details:
Vivian Yuan
HENAN HONGDA CABLE CO., LTD.
We are China Standard Building Wires & Cables Cable Thw-90 6mm2 10 mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Cables, Henan Hongda Cable Co., Ltd., WiresSimilar Or Related
-
Aacsr Aluminium Alloy Conductor Steel Reinforced IEC 61089 Bare Conductor Overhead Overhead Wires
-

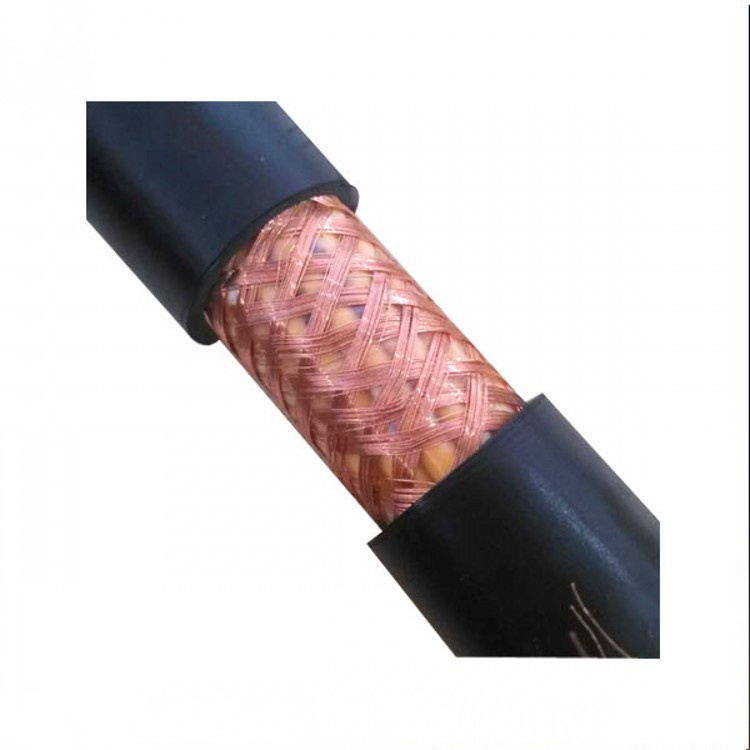

PVC Insulated Flexible Electric Power Cable Wire Multicore Control Cable
-
