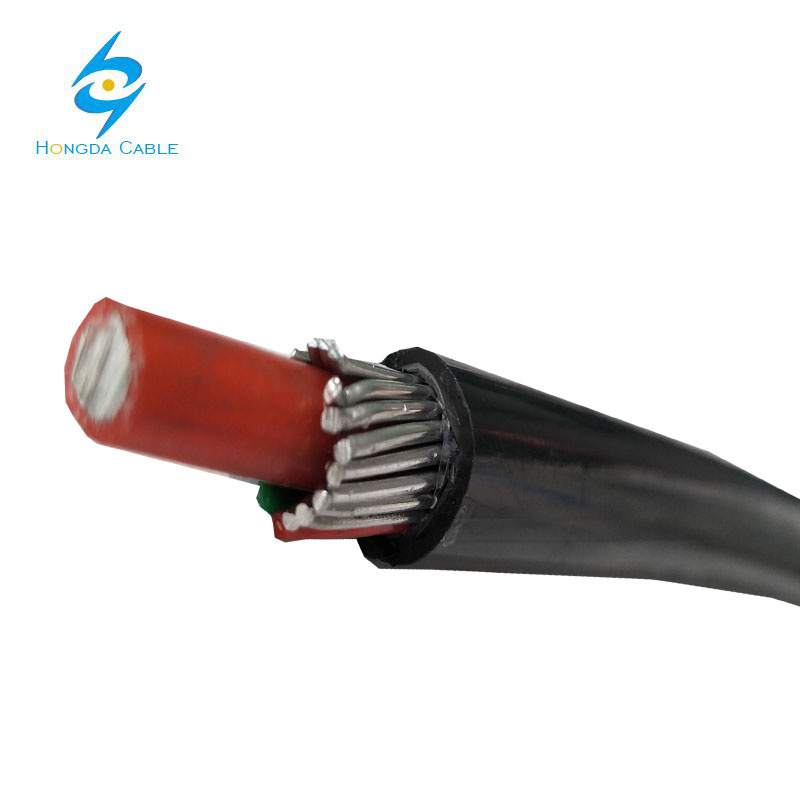

Solid Core Aluminum Wire Insulated Concentric Cable 10/16mm2
Solid Core Aluminum Wire Insulated Concentric Cable 10/16mm2 image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
600/1000V SINGLE PHASE CONCENTRIC CABLES WITH STRANDED ALUMINIUM
CONDUCTORS AND ALUMINIUM WIRE NEUTRAL CONDUCTORS
| PHASE CONDUCTOR | CONCENTRIC NEUTRAL CONDUCTOR NUMBER AND APPROX. DIAMETER OF WIRES |
LAY LENGTHS |
THICKNESS OF OVER SHEATH |
APPROX. OVERALL DIAMETER OF CABLE |
max.d.c. CONDUCTOR RESISTANCE PER 1000 m OF CABLEAT 20 ºC |
||||
| Nominal area | Number and approximate diameter of wires |
Thicknesof insulation | Phase | Neutral | |||||
| mm2 | mm | mm | mm | min mm |
max mm |
mm | mm | WΩ | WΩ |
| 10 | 7/1.35 | 1.55 | 23/1.13 | 75 | 151 | 1.4 | 12.21 | 3.08 | 1.335 |
| 16 | 7/1.70 | 1.55 | 26/1.13 | 84 | 167 | 1.4 | 13.34 | 1.91 | 1.808 |
| 25 | 7/2.14 | 1.60 | 29/1.13 | 95 | 190 | 1.5 | 14.88 | 1.20 | 1.058 6 |
| 35 | 19/1.53 | 1.65 | 27/1.35 | 109 | 218 | 1.6 | 16.75 | 0.868 | 1.796 6 |

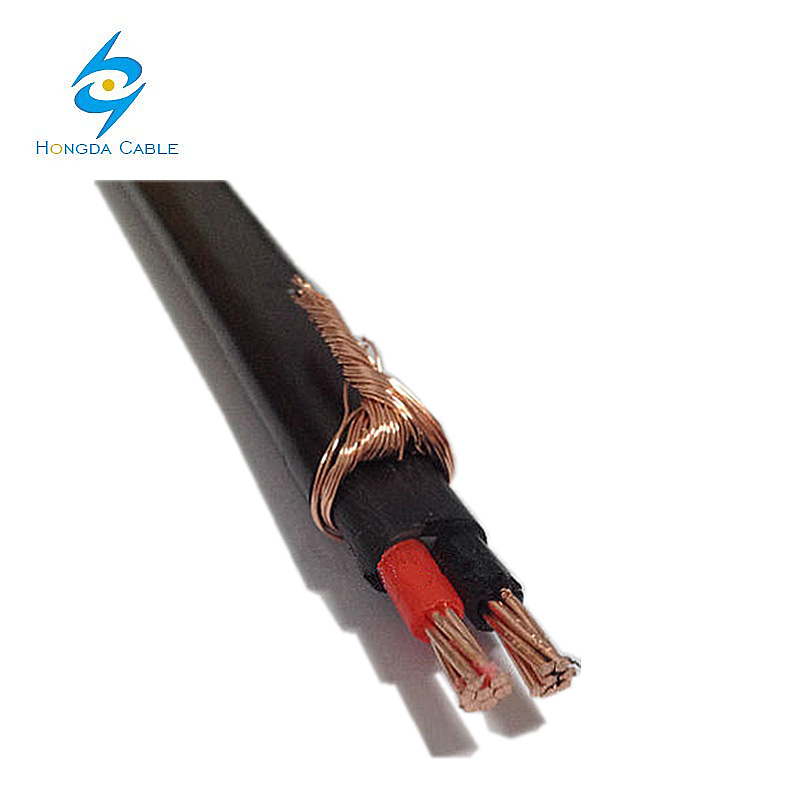

600/1000V SINGLE PHASE CONCENTRIC CABLES WITH STRANDED COPPER
CONDUCTORS AND COPPER WIRE NEUTRAL CONDUCTORS
| PHASE CONDUCTOR | CONCENTRIC NEUTRAL CONDUCTOR NUMBER AND APPROX. DIAMETER OF WIRES |
LAY LENGTHS |
THICKNESS OF OVER SHEATH |
APPROX. OVERALL DIAMETER OF CABLE |
max.d.c. CONDUCTOR RESISTANCE PER 1000 m OF CABLEAT 20 ºC |
||||
| Nominal area | Number and approximate diameter of wires |
Thicknesof insulation | Phase | Neutral | |||||
| mm2 | mm | mm | mm | min mm |
max mm |
mm | mm | WΩ | WΩ |
| 4 | 7/0.85 | 1.55 | 24/0.85 | 59 | 118 | 1.4 | 9.75 | 4.61 | 1.343 |
| 6 | 7/1.04 | 1.55 | 26/0.85 | 63 | 127 | 1.4 | 10.72 | 3.08 | 1.240 |
| 10 | 7/1.35 | 1.55 | 29/0.85 | 71 | 142 | 1.4 | 11.73 | 1.83 | 1.151 |
| 16 | 7/1.70 | 1.55 | 26/1.13 | 84 | 167 | 1.4 | 12.78 | 1.15 | 1.007 4 |
| 25 | 7/2.14 | 1.60 | 29/1.13 | 95 | 190 | 1.5 | 14.88 | 0.727 | 0.629 |
| 35 | 19/1.53 | 1.65 | 28/1.35 | 109 | 218 | 1.6 | 16.75 | 0.524 | 0.473 |
| ITEM | SPECIFICATION (PARTICULARS | UNIT | Data |
| 1 | Insulation Voltage | V | 600/1000 |
| 2 | Conductor size | mm² | 16 |
| 3 | Phase Conductor material | N/A | Hard drawn Aluminium conductor -Single core |
| 4 | Insulation Material | N/A | XLPE |
| 5 | Earth wire material type | N/A | Bare Aluminium conductor |
| 6 | Rip Chord | N/A | Nylon |
| 7 | Reference Standards | N/A | SANS 1507, NRS 063, IEC 60502/228 ESI 09-7 |
| 8 | Phase conductor Insulation thickness | mm | 1.0 |
| Construction (Phase conductor) | |||
| 9 | Structure | mm | Single core |
| 10 | Insulation Thickness | mm | 1.0 |
| 11 | Reference Insulation O.D | mm | 7.1 |
| Construction (Earth Wire) | |||
| 12 | Structure | Numbers | 12 |
| 13 | Wire structure | N/A | 12/1.7 |
| Construction (Pilot/Communication Wires) | |||
| 14 | Structure | mm² | 4X0.5 |
| 15 | Reference Insulation O.D | mm | 1.13 |
| 16 | Conductor material | N/A | Copper |
| 17 | Insulation Material | N/A | LLPDE/XLPE |
| 18 | Number of conductors | Numbers | 4 |
| Construction (Sheath) | |||
| 19 | Nominal Thickness | mm | 1.6 |
| 20 | Reference Insulation O.D | mm | 14.5 |
| 21 | Sheath Material | N/A | LLPE Black UV stable/HQ PVC |
| Insulation material colours | |||
| 22 | Phase conductor | N/A | Red |
| 23 | Pilot wires (04) | N/A | Red, Green, White, Blue |
| 24 | Sheath | N/A | Black |
| Performance (Electrical Characteristics) | |||
| 25 | Phase Conductor – Maximum resistance at | ≤1.91 | |
| 26 | Earth Wires – – Maximum resistance at | ≤7.40 | |
| 27 | Pilot Wires – Maximum resistance at 20 | ≤36 |
1.Phase conductor:Solidal 16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black )
We are China Solid Core Aluminum Wire Insulated Concentric Cable 10/16mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
