PVC Insulated Nylon Jacket Thhn Building Wires Cable

PVC Insulated Nylon Jacket Thhn Building Wires Cable image

Get Latest Price Request a quote

Product Details

Model NO.

THHN

Application

Overhead, Underground

Conductor Material

Copper

Sheath Material

Nylon

Insulation Material

PVC

Material Shape

Round Wire

Range of Application

Flame Retardant

Certification

ISO9001, CE, CCC

Brand

OEM

Conductor

Bare Copper, Soft Drawn

Insulation

Polyvinylchloride (PVC)

Jacket

Nylon

Thhn Wire

in Dry Locations

Thwn Wire

in Wet Locations

Rated Voltage

600V

Transport Package

Roll

Specification

1.6mm to 500mm

Trademark

Hongda

Origin

Henan, China

HS Code

8544492100

Production Capacity

5000000m/Month

Product Description

Thhn Thwn 600V Copper Conductor Nylon Coated Wire

THHN Building Wire

THHN wire is a very popular type of building wire used in all types of industrial, commercial and residential construction. This type of building wire is effective in damp and dry locations. THHN stands for Thermoplastic High Heat Nylon which is a description of the wire jacket and insulation components. The conductor comes in many strands for anything over 10 gauge in the stranded or solid conductor for gauges 14-10. THHN wire has an advantage as build wire because of its ability to handle up to 600 volts which covers most common appliances. The installation of THHN as building wire will fall within most building codes set out in the list of National Electrical Codes. This wire has a thermoplastic jacket releases toxic gases when burned. It cannot be used outside or buried due to its minimal protection. This is because this wire is used in building conditions where very little can hurt it. The jacketing protection is abrasion resistance but has little else in means of wire protection.

THHN Wires specs in AWG size.

AWG Size	Conductor Stranding	Nom. O.D. (in)	Nom. Insul. Thick. (in)	Jacket Thick	Approx LBS/MFT	Ampacity @ 90°C
14	Solid	0.1020	0.015	0.004	15.00	15
14	19/27	0.1090	0.015	0.004	16.00	15
12	Solid	0.1190	0.015	0.004	23.00	20
12	19/25	0.1280	0.015	0.004	24.00	20
10	Solid	0.1610	0.020	0.004	38.00	30
10	19/23	0.1610	0.020	0.004	38.00	30
8	19/21	0.2130	0.030	0.005	63.00	55
6	19/.0372	0.2490	0.030	0.005	95.00	75
4	19/.0469	0.3180	0.040	0.006	152.00	95
3	19/.0526	0.3460	0.040	0.006	189.00	110
2	19/.0591	0.3780	0.040	0.006	234.00	130
1	19/.0664	0.4350	0.050	0.007	299.00	150
1/0	19/.0745	0.4740	0.050	0.007	372.00	170
2/0	19/.0837	0.5180	0.050	0.007	462.00	195
3/0	19/.0940	0.5680	0.050	0.007	575.00	225
4/0	19/.1055	0.6240	0.050	0.007	718.00	260
250	37/.0822	0.6780	0.060	0.008	851.00	290
300	37/.0822	0.7300	0.060	0.008	1012.00	320
350	37/.0973	0.7770	0.060	0.008	1174.00	350
400	37	0.8210	0.060	0.008	1334.00	380
500	37	0.9020	0.060	0.008	1655.00	430
600	61	0.9980	0.070	0.009	1987.00	475
750	61	1.1260	0.070	0.009	2464.00	535
1000	61	1.2750	0.070	0.009	1275.00	615

THHN Philippines specs:

SIZE	CONSTRUCTION	APPROX. OD in mm	AMPACITY IN AMPERES
1.6 mm	SOLID	2.65	25
2.0 mm	SOLID	3.05	30
2.6 mm	SOLID	3.9	40
3.2 mm	SOLID	5.15	50
2.0 sq. mm	7 X 0.60 mm	2.85	25
3.5 sq. mm	7 X 0.80 mm	3.45	30
5.5 sq. mm	7 X 1.00 mm	4.3	40
8.0 sq. mm	7 X 1.20 mm	5.55	50
14 sq. mm	7 X 1.60 mm	6.75	70
22 sq. mm	7 X 2.00 mm	8.45	90
30 sq. mm	7 X 2.30 mm	9.35	115
38 sq. mm	19 X `1.6 mm	11	130
50 sq. mm	19 X 1.8 mm	12	150
60 sq. mm	19 X 2.0 mm	13	170
80 sq. mm	19 X 2.3 mm	14.5	205
100 sq. mm	19 X 2.6 mm	16	225
125 sq. mm	37 X 2.1 mm	18.25	265
150 sq. mm	37 X 2.3 mm	19.65	295
200 sq. mm	37 X 2.6 mm	21.75	355
250 sq. mm	61 X 2.3 mm	24.25	400
325 sq. mm	61 X 2.6 mm	27.5	470
400 sq. mm	61 X 2.9 mm	30.2	515
500 sq. mm	61 X 3.2 mm	32.9	580

THHN Wire Applications:

THHN electrical wire is meant for use as general-purpose wiring for installation in conduit or other recognized raceway. THHN wire may also be used for machine tool, appliance, and control circuit wiring. Read on below for THHN wire specs.

THHN Wire Specifications:

Conductor: Bare Copper, Soft Drawn
Insulation: Polyvinylchloride (PVC)
Jacket: Nylon
Standard Colors (denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.
Gasoline & oil resistant – Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C when exposed to oil.

THHN Wire Ratings:

THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V
THWN-2: 75°C Oil, 90°C Wet, 90°C Dry, 600V
MTW: 60°C Oil, 60°C Wet, 90°C Dry, 600V
AWM 1316 to 1321: 80°C Oil, – Wet, 105°C Dry, 600V
AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, 600V
AWM 1452 to 1453: 80°C Oil, – Wet, 90°C Dry, 600V
T90 NYLON: 60°C Oil, – Wet, 90°C Dry, 1000V
TWN 75: – Oil, 75°C Wet, – Dry, 600V

Packing:

Contact Details:

Vivian Yuan
HENAN HONGDA CABLE CO., LTD.

We are China PVC Insulated Nylon Jacket Thhn Building Wires Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Get Latest Price Request a quote

Tags: Henan Hongda Cable Co., Ltd., Thhn Wire, Thwn Wire

PVC Insulated Nylon Jacket Thhn Building Wires Cable

You May Like

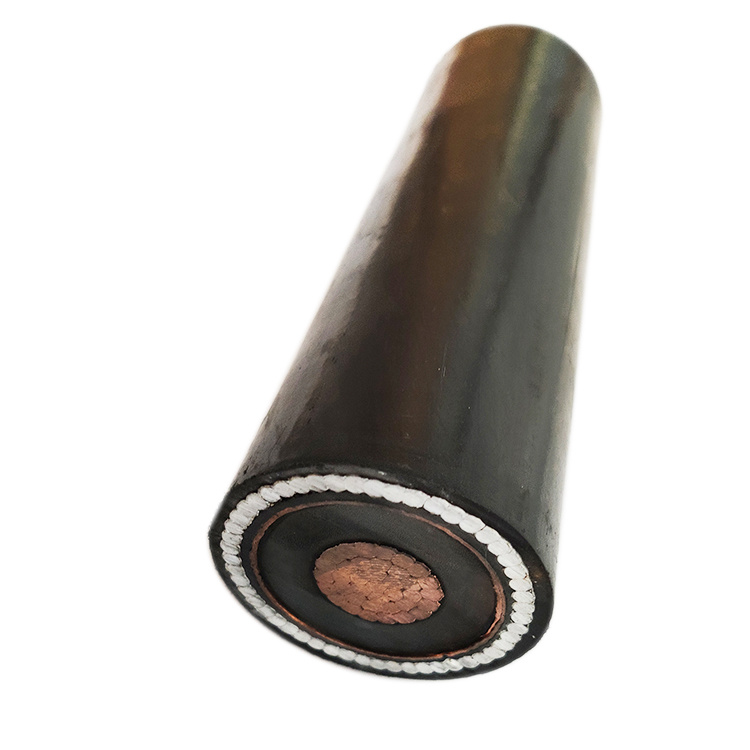

Copper Conductor Screened 185mm2 95mm2 240mm2 500mm2 XLPE Single Core Armoured Cable

Underground Swa Armoured 4 Core 10mm 16mm 25mm 35mm 50mm 70mm 95mm 120mm 185mm 240mm 300mm Power Cable

0.6/1kv Power Cable PVC Sheathed XLPE Insulated Copper Core Cables

Electric Power Cable Bare 50mm2 Hard-Drawn Steel Core Aluminium Conductor Electric Sca Conductor Sca Cable ACSR 100mm2

Spt-1/-2/-3 Low Voltage Flexible Power Cord PVC Insulated Jacket Clocks Radio Household Electronic Appliances Electric Cable

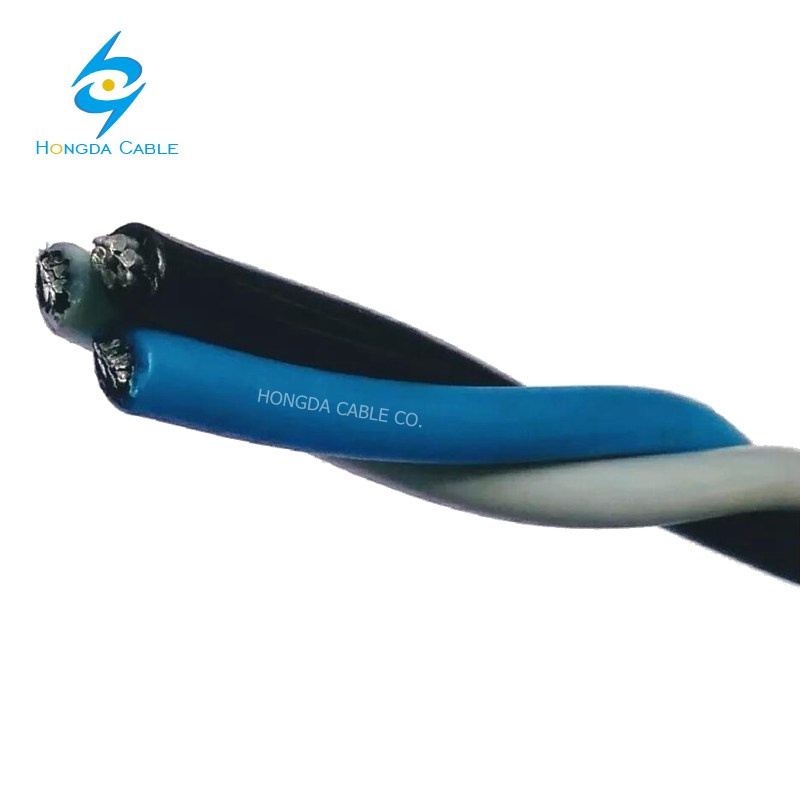

Cabo Multiplexado Al Triplex 3X16mm2 Aluminum XLPE Cable

ACSR Conductor with ASTM Standard Made in China

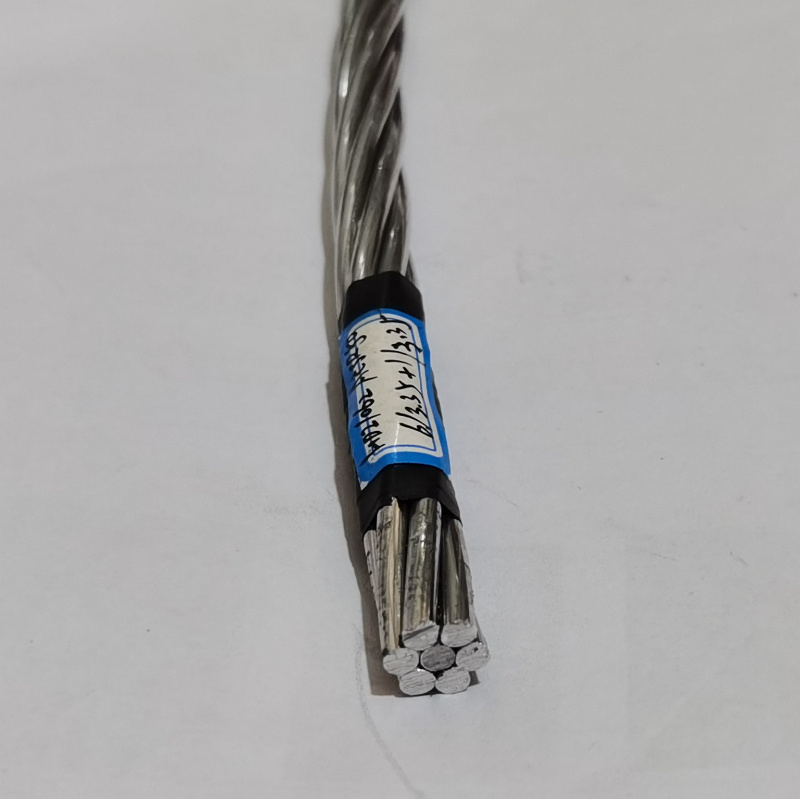

Factory U. S. a Sizes Grosbeak Scoter Egret Peacock Squab Wood Duck Overhead Bare Conductor
