Polyethylene Insulated Aluminum Conductor Steel Reinforced
Hard drawn pure aluminum concentrically stranded over a high carbon steel core. Laid in right hand lay direction. The steel core provides support and serves as messenger for the aluminum conductor; helps minimize sagging on long span installation. Insulated with black polyethylene insulation (PE) highly resistant to moisture, water salts, acids and solvents. It is also high resistant to sunlight, abrasion and environmental impact.
Application
Use as overhead power transmission line. Can also be use power distribution line at a maximum operating temperature of 75ºC or 90ºC.
Highly efficient power distribution and transmission. Tough and durable polyethylene (PE) insulation to protect the ACSR Conductor.
Poly ACSR Cable Product Parameters:
| SIZE | Codename | WIRE CONSTRUCTION, mm (nom.) | Cross-sectional Area | |
| ALUMINUM | STEEL | |||
| #6 AWG | Walnut | 6 x 1.679 | 1 x 1.679 | 14 mm² |
| #4 AWG | Butternut | 6 x 2.118 | 1 x 2.118 | 22 mm² |
| #2 AWG | Pignut | 6 x 2.672 | 1 x 2.672 | 30 mm² |
| #1/0 AWG | Almond | 6 x 3.371 | 1 x 3.371 | 50 mm² |
| #2/0 AWG | Pecan | 6 x 3.782 | 1 x 3.782 | 60 mm² |
| #3/0 AWG | Filbert | 6 x 4.247 | 1 x 4.247 | 80 mm² |
| #4/0 AWG | Buckeye | 6 x 4.770 | 1 x 4.770 | 100 mm² |
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) All raw materials we selected are the highest quality.
2) Professional and skillful workers care every details in handling the producing.
3) Quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China PE Poly ACSR #4 #2 #1/0 #2/0 #3/0 #6 AWG Overhead Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: ABC Cable, Aluminum Wire, Henan Huadong Cable Co., Ltd.Similar Or Related
-
-
NFC Standard Aluminium Conductor 4c 95mm2 10mm2 50mm ABC Aluminum Overhead Cable
-
Rubber EPDM/CPE 48V 400AMP Power Weld Ultrason Cables Orange 16mm2 Welding Cable
-
Aluminium Conductor Overhead 4 Core 95mm ABC Aerial Bundled Cable
-

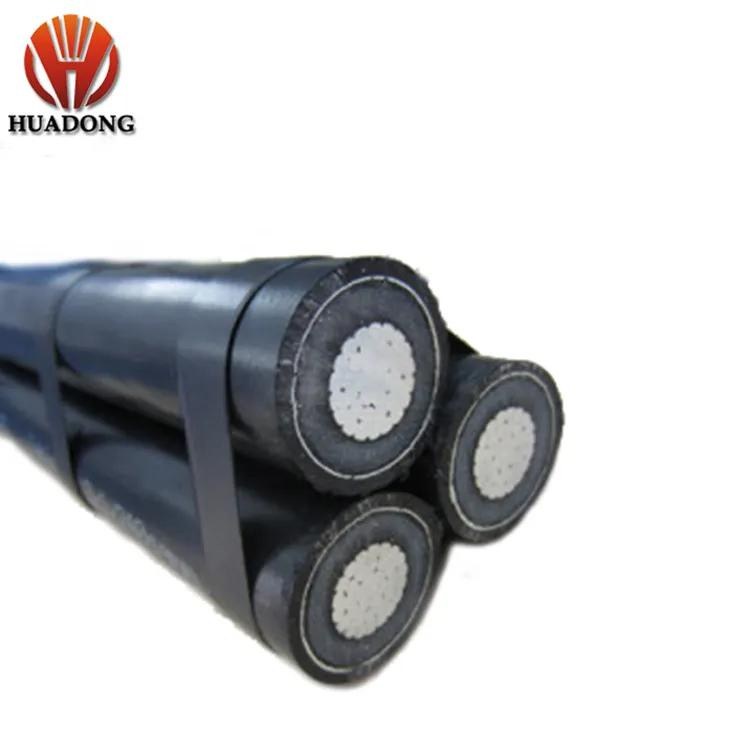

HDPE 15kv 25kv 35kv Aerial Bundle Specification 350mcm 11kv Medium Voltage ABC Cable
