Overhead Aluminum Cable 0.6/1kv 1c *95mm2 1c *50mm2ABC Cable

Application



Overhead, outdoors or in some low voltage areas.

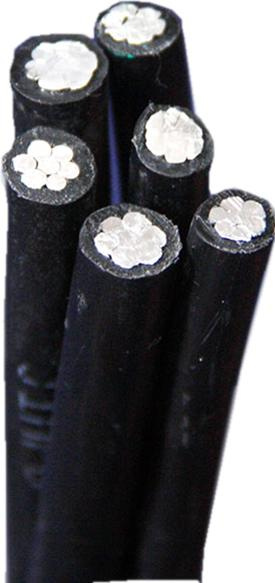

Aerial Bundle Cable(ABC Cable)

is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level safety and reliability, lower power losses and ultimate system economy by reducing installation , maintenance and operative cost.



Standards



ASTM, BS, IEC, NFC, GB, AS/NZS



Construction



Conductor: Aluminum conductor, round stranded conpressed(RM).



Insulation: XLPE compound



Core identification: 1, 2 resp.3 raised longitudinal ribs on the surface of the cores. The surface of the neutral should have at least 12 ribs for cross-sections up to 50mm2 and a  minimum of 16 ribs for cores above 50mm2. In the case of five core bundles the surface of the protective core should be smooth.



Models and descriptions

Covered line wire:

JKY: Copper core PE insulated aerial cable

JKYJ: Copper core XLPE insulated aerial cable

Service drop cable:

JKLY: Aluminum core PE insulated aerial cable

JKLYJ: Aluminum core XLPE insulated aerial cable

Secondary UD cable:

JKLHY: Aluminum alloy core PE insulated aerial cable

JKLHYJ: Aluminum alloy core XLPE insulated aerial cable



Nominal Cross-sectional Areas(sqmm)



10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2
