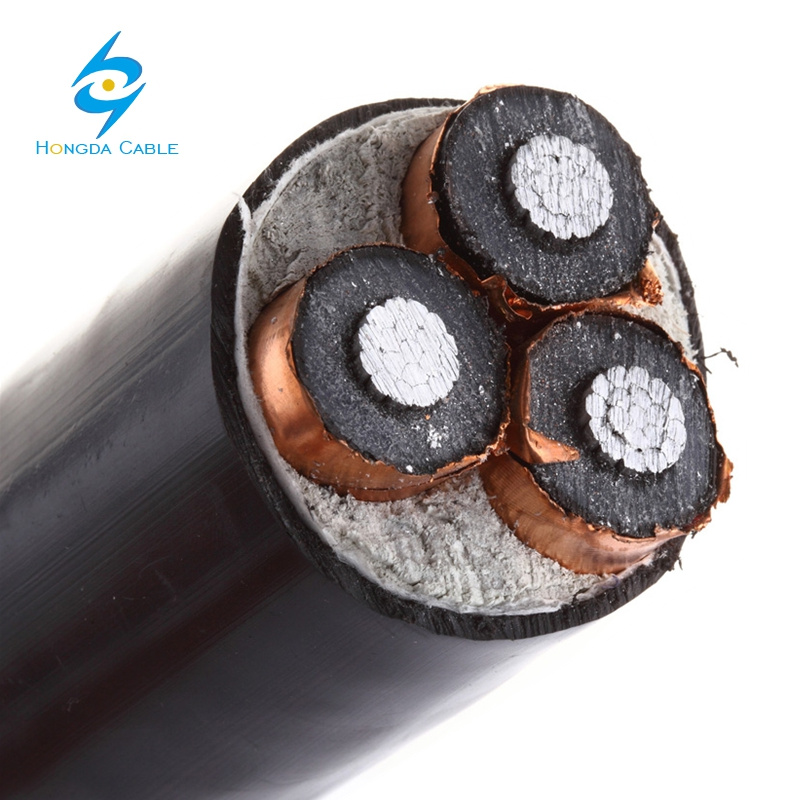

N2xsey 12 Kv 3 Core Cu/XLPE/Cws/PVC Power Cable

N2xsey 12 Kv 3 Core Cu/XLPE/Cws/PVC Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

N2XSEY

Current

AC Cable

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC

Model

YJV

Brand

Hongda

Inner Semi-Conductive Layer

Semi-Conductive Material

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi-Conductive Layer

Semi-Conductive Material

Screen

Copper Wires

Sheath

PVC (Polyvinyl Chloride)

Transport Package

500m Per Drum

Specification

1.5 - 630 sq. mm

Trademark

Hongda

Origin

China

HS Code

8544601200

Production Capacity

5 Kilometers Per Day

Product Description

N2XSEY XLPE PVC – 6/10 (12)kV Cable

1. Cable construction

Conductor	Class 2 stranded copper conductor according to BS EN 60228
Inner Semi-Conductive Layer	Semi-conductive material
Insulation	XLPE (Cross-Linked Polyethylene)
Outer Semi-Conductive Layer	Semi-conductive material
Screen	Copper wires
Sheath	PVC (Polyvinyl Chloride)

2. Dimensions

No. of Cores	Nominal Cross Sectional Area mm²		NOMINAL OVERALL DIAMETER	Nominal Weight
No. of Cores	Conductor mm²	Copper Wire Screen mm²	mm	kg/km
3	35	RM/16	49	2600
3	50	RM/16	51	2900
3	70	RM/16	55	3350
3	95	RM/16	58	4200
3	120	RM/16	62	5050
3	150	RM/25	66	6000
3	185	RM/25	69	7200
3	240	RM/25	75	9000

3. Current Carrying Capacity

NO. OF CORES	Nominal Cross Sectional Area		Current Carrying Capacity
NO. OF CORES	Conductor mm²	Copper Wire Screen mm	In Ground Amps	In Air Amps
3	35	RM/16	213	213
3	50	RM/16	220	236
3	70	RM/16	261	265
3	95	RM/16	312	322
3	120	RM/16	355	370
3	150	RM/25	399	420
3	185	RM/25	451	481
3	240	RM/25	523	566
