Product Details
Product Description
N2XRY Cable Application
Can be used in underground installations since the cable is very suitable for mechanical compulsion and harsh operating conditions. Suitable for comparatively high ambient temperature due to high maximum permissible conductor temperature.
N2xry Cable Standard
IEC 60502-1
Flame Retardant according to IEC/EN 60332-1-2
N2xry Cable construction
Conductor:Class 2 stranded copper conductor
Insulation:XLPE (Cross-Linked Polyethylene)
Filler:PVC (Polyvinyl Chloride)
Armour:SWA (Galvanized round steel wire)
Sheath:PVC (Polyvinyl Chloride)
N2xry Cable Technical Data
| ELECTRICAL PERFORMANCE | Cables manufactured to BS 5467 and BS 6346 are rated for 0.6/1kV, 1.9/3.3kV |
| CHEMICAL PERFORMANCE | Chemical & Oil resistance: Good |
| MECHANICAL PERFORMANCE | Minimum bending raduis: x10 cable diameter (unarmoured) Minimum bending raduis: x20 cable diameter (unarmoured) |
| FIRE PERFORMANCE | Flame non-propagation base on IEC 60332-1 Reduced emission of Halogens chlorine<15% |
| TERMINAL PERFORMANCE | Maximum service temperature: 90°C Maximum short-circuit temperature: 160°C(max. 5s) Minimum service temperature: -40°C |
N2xry Cable Parameter
| 0.6/1kV-3 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable | |||||
| Nominal cross sectional area | Approximate outer diameter | Approx. weight |
Max.D.C resistance of conductor(20ºC) | Current carrying capacity | |
| mm2 | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 3X2.5 | 15.3 | 405 | 7.41 | 20 | 27 |
| 3X4 | 16.2 | 481 | 4.61 | 26 | 36 |
| 3X6 | 18.3 | 696 | 3.08 | 33 | 45 |
| 3X10 | 20.9 | 930 | 1.83 | 46 | 60 |
| 3X16 | 23.3 | 1191 | 1.15 | 59 | 77 |
| 3X25 | 27.6 | 1745 | 0.727 | 77 | 98 |
| 3X35 | 29 | 2100 | 0.524 | 95 | 119 |
| 3X50 | 32.5 | 2628 | 0.387 | 119 | 144 |
| 3X70 | 37.9 | 3728 | 0.268 | 151 | 175 |
| 3X95 | 41.8 | 4692 | 0.193 | 186 | 210 |
| 3X120 | 45.5 | 5645 | 0.153 | 217 | 242 |
| 3X150 | 51.3 | 7350 | 0.124 | 245 | 270 |
| 3X185 | 55.9 | 8698 | 0.0991 | 284 | 305 |
| 3X240 | 62.1 | 10837 | 0.0754 | 336 | 350 |
| 3X300 | 67.4 | 12990 | 0.0601 | 389 | 396 |
| 0.6/1kV-4 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable | |||||
| Nominal cross sectional area | Approximate outer diameter | Approx. weight |
Max.D.C resistance of conductor(20ºC) | Current carrying capacity | |
| mm2 | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 4X2.5 | 16.1 | 472 | 7.41 | 20 | 27 |
| 4X4 | 18.1 | 677 | 4.61 | 26 | 36 |
| 4X6 | 19.3 | 804 | 3.08 | 33 | 45 |
| 4X10 | 22.3 | 1088 | 1.83 | 46 | 60 |
| 4X16 | 25.7 | 1571 | 1.15 | 59 | 77 |
| 4X25 | 29.7 | 2085 | 0.727 | 77 | 98 |
| 4X35 | 31.4 | 2543 | 0.524 | 95 | 119 |
| 4X50 | 35.3 | 3214 | 0.387 | 119 | 144 |
| 4X70 | 41.2 | 4571 | 0.268 | 151 | 175 |
| 4X95 | 45.6 | 5782 | 0.193 | 186 | 210 |
| 4X120 | 51.2 | 7557 | 0.153 | 217 | 242 |
| 4X150 | 56.1 | 9080 | 0.124 | 245 | 270 |
| 4X185 | 61.3 | 10822 | 0.0991 | 284 | 305 |
| 4X240 | 68.1 | 13566 | 0.0754 | 336 | 350 |
| 4X300 | 74.1 | 16356 | 0.0601 | 389 | 396 |
| 0.6/1kV-5 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable | |||||
| Nominal cross sectional area | Approximate outer diameter | Approx. weight |
Max.D.C resistance of conductor(20ºC) | Current carrying capacity | |
| mm2 | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
| 5X2.5 | 17.9 | 645 | 7.41 | 20 | 27 |
| 5X4 | 19.1 | 770 | 4.61 | 26 | 36 |
| 5X6 | 20.5 | 925 | 3.08 | 33 | 45 |
| 5X10 | 24.6 | 1417 | 1.83 | 46 | 60 |
| 5X16 | 27.6 | 1812 | 1.15 | 59 | 77 |
| 5X25 | 32.2 | 2460 | 0.727 | 77 | 98 |
| 5X35 | 34.1 | 3019 | 0.524 | 95 | 119 |
| 5X50 | 39.7 | 4166 | 0.387 | 119 | 144 |
| 5X70 | 44.9 | 5443 | 0.268 | 151 | 175 |
| 5X95 | 51.3 | 7485 | 0.193 | 186 | 210 |
| 5X120 | 55.9 | 9026 | 0.153 | 217 | 242 |
| 5X150 | 61.4 | 10912 | 0.124 | 245 | 270 |
| 5X185 | 67.6 | 13119 | 0.0991 | 284 | 305 |
| 5X240 | 74.8 | 16427 | 0.0754 | 336 | 350 |
| 5X300 | 83.2 | 20915 | 0.0601 | 389 | 396 |
Any problem and inquiry pls contact with Tina
We are China N2xry IEC 60502-1 Copper XLPE PVC Steel Wire Armoured Swa Underground Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Henan Hongda Cable Co., Ltd., N2xry, N2xry CableSimilar Or Related
-

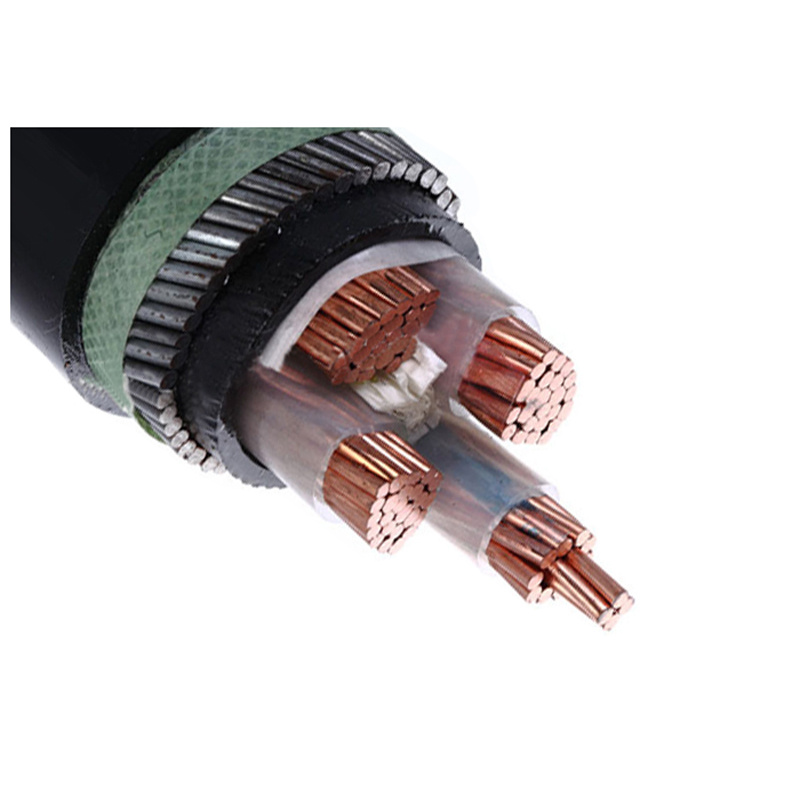

Armored 600V XLPE Power Cable IEC60502 Zr-Yjv32, Yjv32, N2xry
-
