LV XLPE Insulated Aerial Bundled Cables 2Core,3Core ,4Core Aluminum
| ITEM | DESCRIPTION | UNITS | GUARANTEED | ||
| 1 | Basic Information | ||||
| 1.1 | Manufacturer | – | Shanghai Shenghua Cable Group | ||
| 1.2 | Type&Code Name | – | 2*16 | ||
| 1.3 | Total weight | KG/KM | 138 | ||
| 1.4 | Approx Overall Diameter | mm | 15.12 | ||
| 1.5 | Rated Voltage | KV | 0.6/1 | ||
| 2 | Street Lighting Conductor | ||||
| 2.1 | Number of Conductor | – | 1 | ||
| 2.2 | Nominal cross sectional area of neutral | mm2 | 16 | ||
| 2.3 | No. of Aluminum Wire/Diameter | Mm | 7/1.72 | ||
| 2.4 | Form of conductor | – | Stranded circular | ||
| 2.5 | Overall Diameter | mm | 4.8 | ||
| 2.6 | Material of Insulation | – | XLPE | ||
| 2.7 | Nominal thickness of insulation | mm | 1.2 | ||
| 2.8 | Nominal diameter over insulation | mm | 7.2 | ||
| 2.9 | Total Weight of per core | KG/KM | 69 | ||
| 2.10 | Calculated Breaking Load | N | 2517 | ||
| 3.1 | Phase Conductor | ||||
| 3.2 | Number of Conductor | – | 1 | ||
| 3.3 | Nominal cross sectional area of phase | mm2 | 16 | ||
| 3.4 | Form of conductor | – | Stranded compacted circular | ||
| 3.5 | Numbers of Al Wire /Diameter | mm | 7/1.72 | ||
| 3.6 | Min. diameter of conductor, | mm | 4.8 | ||
| 3.7 | Material of Insulation | – | XLPE | ||
| 3.8 | Nominal thickness of insulation | mm | 1.2 | ||
| 3.9 | Nominal diameter over insulation | mm | 7.2 | ||
| 3.10 | Max. continuous current carrying capacity per phase |
A | 90 | ||
| 3.11 | Calculated Breaking Load | N | 2517 | ||
| 3.12 | Max.D.C. Resistance at 20ºC | Ω/KM | 1.91 | ||
| 3.13 | Total Weight of per core | KG/KM | 69 | ||
| 4 | Packing details | ||||
| 4.1 | Standard length of conductor per reel | km | 2.5 | ||
| 4.2 | Drum dimension | mm | 1100*400*950*1050 | ||
| 4.3 | Material | / | Wooden | ||
| 4.4 | G.W and Volume each drum | Kg/m3 | 345/1.27 | ||
| 4.5 | Manufacturing | – | IEC 60502 IEC60228 | ||
| Quality Assurance | – | ISO | |||
| Product List |
| XLPE Insulated Electric Cable up to 35kV |
| PVC Insulated & Sheathed Electric Cable |
| Instrumentation Cable |
| Welding Machine Cable |
| Control Cable |
| House Wiring CableMining Cable |

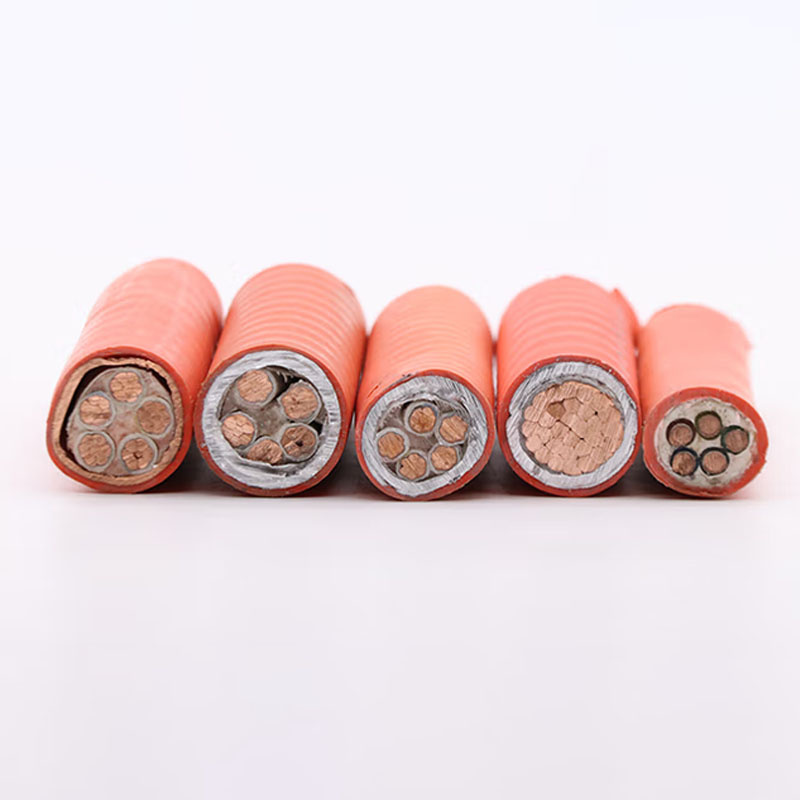

| Mineral Insulated Cable |
