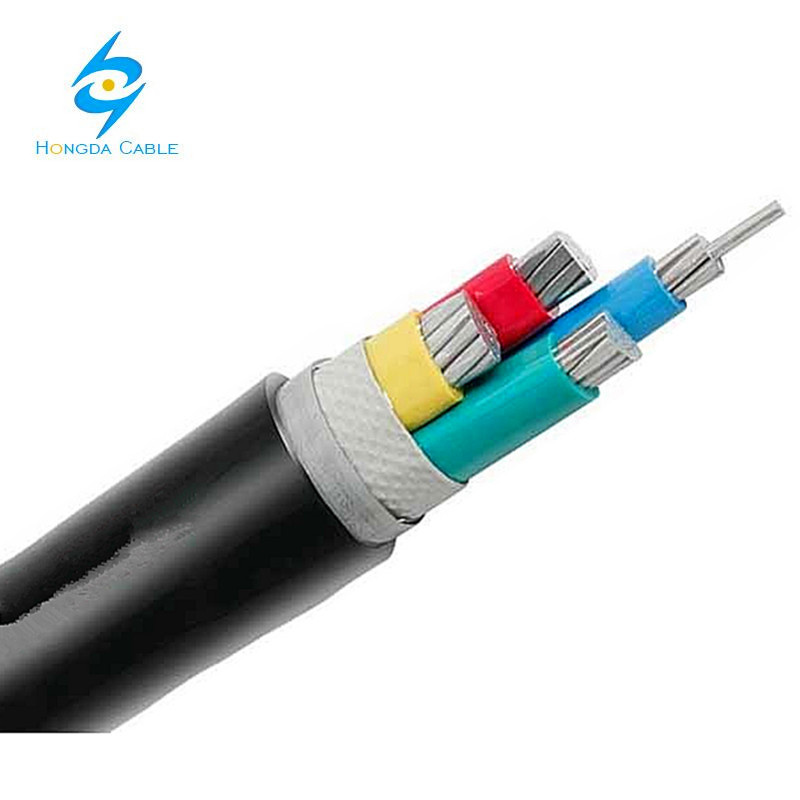

LV Cable Hi-Xdv-a Underground 3X150+70mm NFC 33-210
LV Cable Hi-Xdv-a Underground 3X150+70mm NFC 33-210 image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Application for power cable
Underground cable Steel Wire/type Armoured Copper Power cable is used for power transmission and distribution line with voltage rated at 1kV and below.Compared with PVC Insulated Power Cable,xlpe insulated power cable boasts not only characteristic of excellent electricity, mechanism, heat and aging-resistant, environment stress- resistant and chemical corrosionresistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.
Standard of Underground cable Steel Wire/type Armoured Copper Power cable
International: IEC 60502-2, IEC 60228 such as BS,DIN and ICEA upon request
Specification for Underground Cable Steel Wire/type Armoured Copper Power cable
| Type | Cu or Al /XLPE/CTS or CWS/PVC, Cu /XLPE/CTS /PVC/SSWA/PVC |
|
| Voltage | 0.6/1kV,1.8/3kV, 1.9/3.3kV,6/10kV, 6.35/11kV, 8.7/10kV, 8.7/15kV, 12/20kV, 12.7/22kV, 18/30kV, 19/33kV,26/35kV | |
| Cores | 1C, 2C,3C,3C+E,4C,5C,3C+2E,4C+E | |
| Range of Nominal cross section | 2.5 mm2 – 630 mm2 | |
| Application | Underground cable steel wire/tyoe armored copper power cable is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kV~26/35kV. For laying indoors, in tunnel, cable trench, well or direct in ground. | |
| Standard | IEC 60502, BS 6622, GB/T12706 | |
| Constructions | Conductor: | Copper or Aluminium Compacted |
| Insulation: | XLPE | |
| Metallic screen: | Copper tape or Copper wire | |
| Armour: | Steel Wire Armour or Steel Tape Armour | |
| Sheath: | PVC, PE or LSZH | |
| Max. Operating Temperature | 90 ºC | |
We are China LV Cable Hi-Xdv-a Underground 3X150+70mm NFC 33-210 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
