LV 3X240+3X35mm2/ Medium Voltage 3X240mm2 Sta Power Cable

LV 3×240+3x35mm2 /MV 3x240mm2 STA power cable for underground

  3 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

 3+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

Application:

PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 1kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.

Property:

1.The long-term permissible operation temperature of the conductor shall not be higher than 70ºC.

2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160ºC.

3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0ºC.

4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.

5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

Construction:

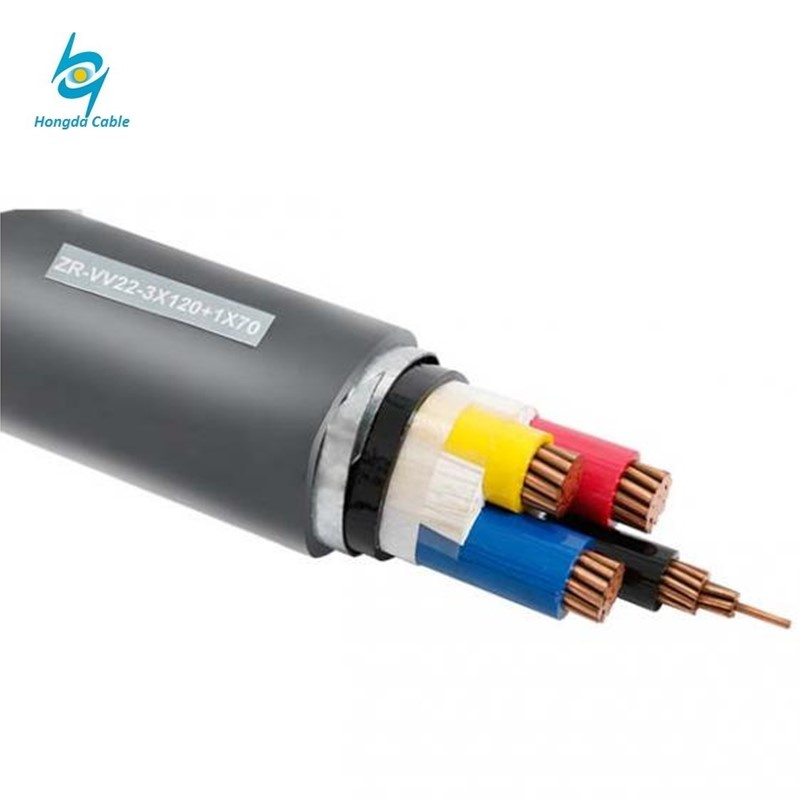

0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured Power Cable.

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded

Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor

Insulation: XLPE (cross-linked polyethylene) rated at 90°C

Colour identification

1 Core : Red or Black

2 Cores : Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

The above identifying can be changed as order

Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted

Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.

Standards
GB/12706-2008, IEC60502-1,IEC 60228,IEC60332 BS 5467,IS 1554 , IS 7098 ect.
Hongda cable  can also design and produce for special application requirement.
