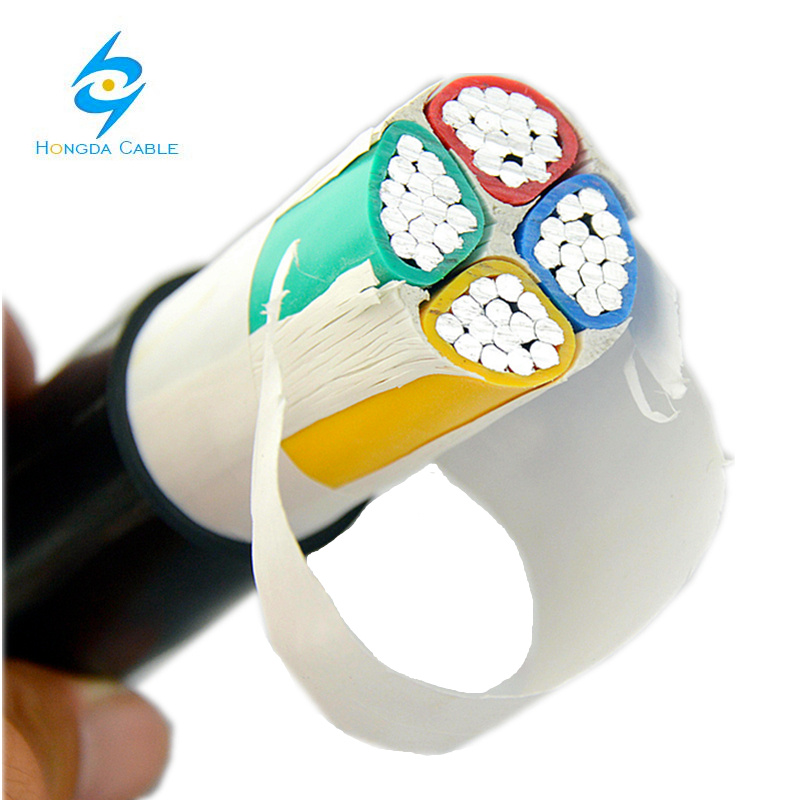

Low Voltage Na2xy Cables 4*150mm2 Al XLPE PVC 4 Cores Underground Aluminum Power Cable
Low Voltage Na2xy Cables 4*150mm2 Al XLPE PVC 4 Cores Underground Aluminum Power Cable image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Aluminum Cable 4*150mm2 Application
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

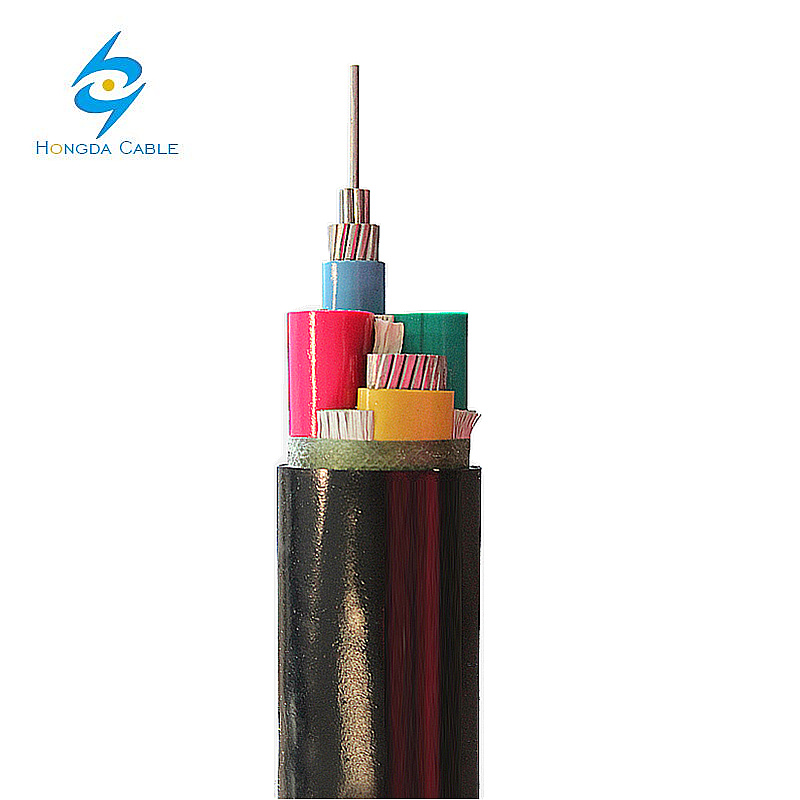

Aluminum Cable 4*150mm2 Construction
Conductor: Hard drawn aluminum stranded conductor (class 2)
Insulation: Cross-linked polyethylene XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Outer sheath: Polyvinyl chloride PVC
Aluminum Cable 4*150mm2 Operating Characteristics:
Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Test Voltage:3.5kV for 5 Minutes
Temperature Rating:-15°C to +90°C
Maximum Short Circuit Temperature:+250°C (max 5 seconds)
Environment temperature should be no lower than 0°C for laying the cable.
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
Aluminum Cable 4*150mm2 Parameter
| Cross section area (mm2) | 4*150 |
| Conductor Material | Aluminum |
| Conductor Insulation Thickness (mm) | 1.4 |
| Sheath Thickness (mm) | 2.4 |
| Overall Diameter (mm) | 45.2 |
| Approx Weight (kg/km) | 2369 |
| Max. DC Conductor Resistance at 20ºC (Ω/km) | 0.206 |
| Current carrying capacity in Ground (A) | 300 |
Cable Packing shipping
If you have another question, pls feel free to contact us below
We are China Low Voltage Na2xy Cables 4*150mm2 Al XLPE PVC 4 Cores Underground Aluminum Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
