Low and Medium Voltage Copper Electrical Wire 240mm2

Low and Medium Voltage Copper Electrical Wire 240mm2 image

Get Latest Price Request a quote

Product Details

Model NO.

YJV

Application

Overhead

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

XLPE

Material Shape

Round Wire

Range of Application

Flame Retardant

Certification

ISO9001, CE, CCC, RoHS

Brand

Qif

Core Number

1, 2, 3, 4, 3+1, 5, 4+1, 3+2

Nominal Cross Section of Conductor

1.5~800mm²

Other Types

Zryjv32, Nhyjv32

Warranty

100% Qualified

Armored Layer

Steel Wire

Packing Material

Wooden Drum

Insulation Color

Black, Red, Green, Orange

Transport Package

Standard Export Packing

Specification

4*95

Trademark

QIF

Origin

China

HS Code

854449210

Production Capacity

500000m/Month

Product Description

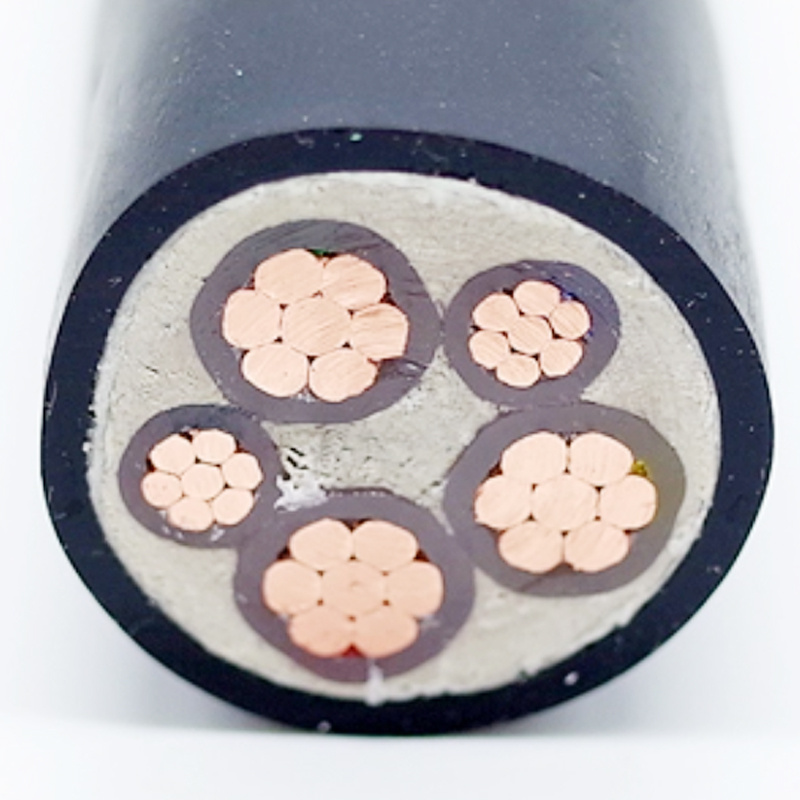

Structure
1.Conductor:Class 1,Class 2,Class 5 Copper conductor
2.Insulation:Cross linked polyethylene (XLPE)
3.Filler:Non-hygroscopic material
4.Binder tape:Non-hygroscopic material tape/Non-woven tape
5. Sheath:Polyvinyl chloride compound (PVC)

Application
To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete, in the cable trenches or cable, ducts, indoor or outdoor areas, in dry or wet locations.

Cross Section
1C1.5~1C800mm2
2C1.5~2C400mm2
3C1.5~3C400mm2
4C1.5~4C400mm2
5C1.5~5C400mm2
2C+E2.5~2C+E400mm2
3C+E2.5~3C+E400mm2
4C+E2.5~4C+E400mm2

Temperature characteristics
Conductor operating temperature: -15ºC~90ºC
Min. temperatrue laying condition: 0ºC
Conductor emergency operating temperature: 105ºC
Conductor short-circuit operating temperature (5s): 250ºC

Size mm2	Conductor Diameter mm	Insulation thickness mm	Sheath thickness mm	Approx. diameter mm	Approx. weight kg/km
1×1.5	1.38	0.7	1.4	5.7	45
1×2.5	1.76	0.7	1.4	6.1	57
1×4	2.22	0.7	1.4	6.6	74
1×6	2.74	0.7	1.4	7.1	96
1×10	4	0.7	1.4	8.3	140
1×16	5	0.7	1.4	9.3	201
1×25	6.1	0.9	1.4	10.8	298
1×35	7.2	0.9	1.4	11.9	392
1×50	8.4	1	1.4	13.3	513
1×70	10	1.1	1.4	15. 1	718
1×95	12	1.1	1.5	17.3	977
1×120	13	1.2	1.5	18.5	1209
1×150	14.9	1.4	1.6	21	1498
1×185	16.5	1.6	1.7	23.3	1858
1×240	18.4	1.7	1.8	25.6	2412
1×300	21	1.8	1.8	28.4	2992
1×400	23.4	2	2	32	3843
1×500	26.6	2.2	2.1	35.4	4893
1×630	30	2.4	2.2	39.4	6228
1×800	34	2.6	2.3	44. 1	7922
1×1000	38.2	2.8	2.5	49. 1	9913

Size mm2	Conductor Diameter mm	Insulation thickness mm	Sheath thickness mm	Approx. diameter mm	Approx. weight kg/km
2×1.5	1.38	0.7	1.8	10	111
2×2.5	1.76	0.7	1.8	10.8	139
2×4	2.22	0.7	1.8	11.7	178
2×6	2.74	0.7	1.8	12.7	228
2×10	4	0.7	1.8	15.2	331
2×16	5	0.7	1.8	17.2	466
2×25	6.1	0.9	1.8	20.2	685
2×35	7.2	0.9	1.8	22.4	894
2×50	8.4	1	1.8	25.4	1173
2×70	10	1.1	1.8	29	1626
2×95	12	1.1	2	33.4	2212
2×120	13	1.2	2.1	36	2731
2×150	14.9	1.4	2.2	40.9	3390
2×185	16.5	1.6	2.3	45. 1	4186
2×240	18.4	1.7	2.5	49.8	5410
2×300	21	1.8	2.7	55.8	6752
2×400	23.4	2	2.9	62.6	8625

Size mm2	Conductor Diameter mm	Insulation thickness mm	Sheath thickness mm	Approx. diameter mm	Approx. weight kg/km
3×1.5	1.38	0.7	1.8	10.4	131
3×2.5	1.76	0.7	1.8	11.3	170
3×4	2.22	0.7	1.8	12.3	224
3×6	2.74	0.7	1.8	13.4	293
3×10	4	0.7	1.8	16	431
3×16	5	0.7	1.8	18.2	621
3×25	6.1	0.9	1.8	21.5	928
3×35	7.2	0.9	1.8	23.9	1225
3×50	8.4	1	1.8	27. 1	1615
3×70	10	1.1	1.9	31.2	2273
3×95	12	1.1	2	35.7	3083
3×120	13	1.2	2.1	38.5	3826
3×150	14.9	1.4	2.3	43.9	4762
3×185	16.5	1.6	2.4	48.5	5894
3×240	18.4	1.7	2.6	53.5	7644
3×300	21	1.8	2.8	59.9	9538
3×400	23.4	2	3.1	67.5	12238

Size mm2	Conductor Diameter mm	Insulation thickness mm	Sheath thickness mm	Approx. diameter mm	Approx. weight kg/km
4×1.5	1.38	0.7	1.8	11.2	157
4×2.5	1.76	0.7	1.8	12.2	206
4×4	2.22	0.7	1.8	13.3	276
4×6	2.74	0.7	1.8	14.5	365
4×10	4	0.7	1.8	17.5	544
4×16	5	0.7	1.8	19.9	791
4×25	6.1	0.9	1.8	23.6	1191
4×35	7.2	0.9	1.8	26.4	1586
4×50	8.4	1	1.9	30	2101
4×70	10	1.1	2	34.6	2965
4×95	12	1.1	2.1	39.7	4031
4×120	13	1.2	2.3	43	5027
4×150	14.9	1.4	2.4	48.8	6229
4×185	16.5	1.6	2.6	54. 1	7737
4×240	18.4	1.7	2.8	59.6	10038
4×300	21	1.8	3	66.8	12528
4×400	23.4	2	3.3	75.2	16068

Size mm2	Conductor Diameter mm	Insulation thickness mm	Sheath thickness mm	Approx. diameter mm	Approx. weight kg/km
5×1.5	1.38	0.7	1.8	12	183
5×2.5	1.76	0.7	1.8	13. 1	244
5×4	2.22	0.7	1.8	14.4	330
5×6	2.74	0.7	1.8	15.7	440
5×10	4	0.7	1.8	19	660
5×16	5	0.7	1.8	21.7	965
5×25	6.1	0.9	1.8	26	1468
5×35	7.2	0.9	1.8	29	1952
5×50	8.4	1	2	33.2	2606
5×70	10	1.1	2.1	38.3	3680
5×95	12	1.1	2.3	44. 1	5022
5×120	13	1.2	2.4	47.5	6237
5×150	14.9	1.4	2.6	54.2	7756
5×185	16.5	1.6	2.8	60	9627
5×240	18.4	1.7	3	66. 1	12492
5×300	21	1.8	3.2	74. 1	15590
5×400	23.4	2	3.6	83.6	20029

Size mm2	Conductor Diameter mm	Insulation thickness mm	Sheath thickness mm	Approx. diameter mm	Approx. weight kg/km
3×2.5+ 1×1.5	1.76/ 1.38	0.7/0.7	1.8	11.9	193
3×4+ 1×2.5	2.22/ 1.76	0.7/0.7	1.8	13	258
3×6+ 1×4	2.74/2.22	0.7/0.7	1.8	14.2	343
3×10+ 1×6	4.0/2.74	0.7/0.7	1.8	16.7	498
3×16+ 1×10	5.0/4.0	0.7/0.7	1.8	19.2	727
3×25+ 1×16	6. 1/5.0	0.9/0.7	1.8	22.6	1088
3×35+ 1×16	7.2/5.0	0.9/0.7	1.8	24.8	1385
3×50+ 1×25	8.4/6. 1	1.0/0.9	1.8	28.2	1860
3×70+ 1×35	10.0/7.2	1. 1/0.9	1.9	32.4	2606
3×95+ 1×50	12.0/8.4	1. 1/ 1.0	2.1	37.3	3546
3×120+ 1×70	13.0/ 10.0	1.2/ 1. 1	2.2	40.7	4495
3×150+ 1×70	14.9/ 10.0	1.4/ 1. 1	2.3	45.5	5406
3×185+ 1×95	16.5/ 12.0	1.6/ 1. 1	2.5	50.6	6799
3×240+ 1×120	18.4/ 13.5	1.7/ 1.2	2.7	55.6	8771
3×300+ 1×150	21.0/ 14.9	1.8/ 1.4	2.9	62.6	10949
3×400+ 1×185	23.4/ 16.5	2.0/ 1.6	3.1	69.9	13938

Size mm2	Conductor Diameter mm	Insulation thickness mm	Sheath thickness mm	Approx. diameter mm	Approx. weight kg/km
3×2.5+2×1.5	1.76/ 1.38	0.7/0.7	1.8	12.7	220
3×4+2×2.5	2.22/ 1.76	0.7/0.7	1.8	13.9	296
3×6+2×4	2.74/2.22	0.7/0.7	1.8	15.2	396
3×10+2×6	4.0/2.74	0.7/0.7	1.8	17.8	572
3×16+2×10	5.0/4.0	0.7/0.7	1.8	20.7	844
3×25+2×16	6. 1/5.0	0.9/0.7	1.8	24.5	1271
3×35+2×16	7.2/5.0	0.9/0.7	1.8	26.5	1564
3×50+2×25	8.4/6. 1	1.0/0.9	1.9	30.6	2151
3×70+2×35	10.0/7.2	1. 1/0.9	2	35	2994
3×70+2×50	10.0/8.4	1. 1/ 1.0	2.1	36.2	3229
3×95+2×50	12.0/8.4	1. 1/ 1.0	2.2	40.3	4065
3×120+2×70	13.0/ 10.0	1.2/ 1. 1	2.3	44.2	5222
3×150+2×70	14.9/ 10.0	1.4/ 1. 1	2.4	48.7	6135
3×150+2×95	14.9/ 12.0	1.4/ 1. 1	2.5	50. 1	6608
3×185+2×95	16.5/ 12.0	1.6/ 1. 1	2.6	54.4	7794
3×240+2×120	18.4/ 13.5	1.7/ 1.2	2.8	59.7	10013
3×300+2×150	21.0/ 14.9	1.8/ 1.4	3	67.2	12483
3×400+2×185	23.4/ 16.5	2.0/ 1.6	3.3	75.4	15892

Size mm2	Conductor Diameter mm	Insulation thickness mm	Sheath thickness mm	Approx. diameter mm	Approx. weight kg/km
4×2.5+ 1×1.5	1.76/ 1.38	0.7/0.7	1.8	12.9	232
4×4+ 1×2.5	2.22/ 1.76	0.7/0.7	1.8	14. 1	312
4×6+ 1×4	2.74/2.22	0.7/0.7	1.8	15.4	417
4×10+ 1×6	4.0/2.74	0.7/0.7	1.8	18.4	616
4×16+ 1×10	5.0/4.0	0.7/0.7	1.8	21.2	905
4×25+ 1×16	6. 1/5.0	0.9/0.7	1.8	25.2	1368
4×35+ 1×16	7.2/5.0	0.9/0.7	1.8	27.7	1756
4×50+ 1×25	8.4/6. 1	1.0/0.9	1.9	31.7	2367
4×70+ 1×35	10.0/7.2	1. 1/0.9	2.1	36.7	3342
4×95+ 1×50	12.0/8.4	1. 1/ 1.0	2.2	42	4528
4×120+ 1×70	13.0/ 10.0	1.2/ 1. 1	2.4	45.9	5736
4×150+ 1×70	14.9/ 10.0	1.4/ 1. 1	2.5	51.3	6935
4×185+ 1×95	16.5/ 12.0	1.6/ 1. 1	2.7	57. 1	8701
4×240+ 1×120	18.4/ 13.5	1.7/ 1.2	2.9	62.8	11242
4×300+ 1×150	21.0/ 14.9	1.8/ 1.4	3.1	70.5	14021
4×400+ 1×185	23.4/ 16.5	2.0/ 1.6	3.4	79.2	17920

How can I get some samples?

We provide free sample and will courier to you by DHL, FEDEX, UPS, TNT, etc. swiftly according to your requirements.

How do you control the quality?
QC department will control the quality during the full production process.
Inspector will inspect each item according to the order, inspection report will transfer to you before loading.
Any third party inspection will be accepted during the production or before loading, such as SGS, BV, etc.
After-sale dept will follow the order and pay high attention on the feedback from your side after all the products delivered. Any quality problem, we will arrange the technical personnel to solve and bear the corresponding customer losses..

What if the cable we need have some differences on specifications from yours?
Any differences, we can design and produce according to your requests.

What’s the package of the goods?
Usually wooden or steel drum or coil, or according to your requirement

What’s the lead time?
Usually 10-30 working days.

Welcome your inquiry and email soon……

We are China Low and Medium Voltage Copper Electrical Wire 240mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
