IEC 60502-2 10kv AAAC Aluminum Alloy Conductor 1c 120sqmm XLPE Insulated Conductor Aerial Cable

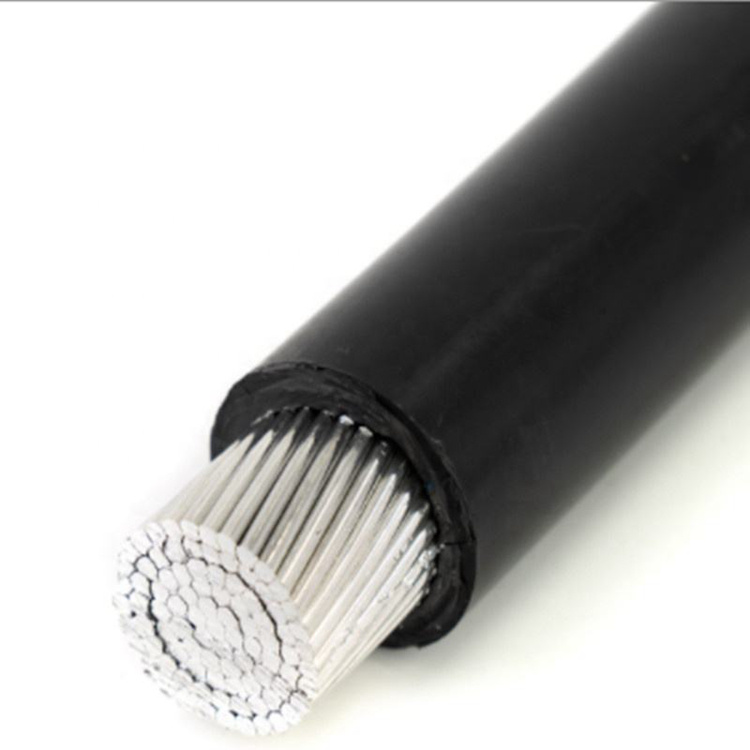

IEC 60502-2 10kv AAAC Aluminum Alloy Conductor 1c 120sqmm XLPE Insulated Conductor Aerial Cable image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
10kV 120sqmm Aerial Cable Application
The overhead insulated cable has the characteristics of large power transmission and strong mechanical strength. Compared with bare wires, it has the advantages of small laying span, high safety and reliability, and good resistance to atmospheric aging. The racks are preferentially used for urban and rural power transmission construction projects.
This product is suitable for overhead power lines and transmission and distribution lines with AC rated voltage U (Um) 10 (12) KV and below in urban high-rise buildings, tourist development zones, forest areas, etc.
10kV 120sqmm Aerial Cable Standard
IEC 60502-2
10kV 120sqmm Aerial Cable Construction
| CONDUCTOR | Aluminium conductor, round stranded compressed (RM). |
|---|---|
| Inner Layer | semi-conductive shielding layer. |
| INSULATION | XLPE. |
10kV 120sqmm Aerial Cable Technical Data
Operating temperature: the maximum long-term operating temperature of the cable conductor is 90°C
Short-circuit temperature: the maximum temperature of the cable conductor does not exceed 250 ºC during short-circuit (the longest duration does not exceed 5s)
Laying temperature: the ambient temperature when laying the cable should not be lower than 0 ºC
Bending radius: the bending radius of single-core cable is not less than 15 times the outer diameter of the cable, and the bending radius of multi-core cable is not less than 10 times the outer diameter of the cable
Scope of application: It can be laid indoors, in tunnels, cable trenches and pipes, and can also be buried in loose soil. The cable can withstand certain laying traction, but cannot withstand mechanical external force.
10kV 120sqmm Aerial Cable features advantages
10kV 120sqmm Aerial Cable Parameter
| 10kV 1 C x AAAC+XLPE Insulation Conductor 120sq.mm | |||
| S.NO | DESCRIPTION | UNIT | RESPONSE |
| 1 | Size of conductor -normal | mm2 | 120 |
| 2 | Material of conductor | Aluminum alloy | |
| 3 | Standard for design | IEC 60502-2 | |
| 4 | Min. number of wires | Nos. | 15 |
| 5 | Overall dia of conductor | mm | 12.3-13.5 |
| 6 | Weight of the conductor | kg/km | 314 |
| 7 | Material of covering (insulation) | XLPE | |
| 8 | Thickness of covering | mm | 3.4 |
| 9 | Min thickness of covering | mm | 2.96 |
| 10 | Overall dia of cable | mm | 21.0 |
| 11 | Nominal breaking load | kN | 30.164 |
| 12 | Cable weight per KM | kg/km | 530 |
| 13 | Nom,D.Cresistance at 20,°C | Ohm/km | 0.294 |
