High Quality Power and Signal Wires Underwater Hybrid Cable for Submersible Pump
High Quality Power and Signal Wires Underwater Hybrid Cable for Submersible Pump image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
High Quality Power and Signal Wires Underwater Hybrid Cable for Submersible Pump
underwater to above-water). This product can be equipped with a waterproof joint (it can be supplied completely
as request). The features of lead wire are convenient in use, good waterproof property. Even if it exists in external
damage, it can also guarantee the motor is not suffered from damage caused by water. This is a new type of
waterproof cable
Submersible Water Pump Rubber Cable Feature:1. Conductor: Class 5 flexible plain copper conductor
2. Insulation: EPR(Ethylene Propylene Rubber)
3. Sheath: PCP(Polychioroprene)
4. Cores: 1 2 3 4 5 Cores or Others
5. Voltage:450/750V, 0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV,12/20KV
6. Temperature Rating: conductor operation temperature -40°C to +60°C(90°C max)
7. Minimum Bending Radius: Up to 25mm2,6xoverall diameter;
8. Above to 25mm2: 8x overall diameter
Product Parameters:
|
JHS Round Submersible Water Pump Cable Parameter
|
|||||
|
Conductor
|
Nominal Core Dia
|
Approx. Overall Dimensions of doubble Sheathed Cable
|
Current Rating at 40 Degree
|
||
|
Nominal Area
|
Nos. & Dia. of Wire
|
3 Core
|
4 Core
|
||
|
Sq. mm.
|
Nos./mm
|
mm
|
mm
|
mm
|
Amps
|
|
1.5
|
22/0.30
|
3.25
|
10
|
10.8
|
14
|
|
2.5
|
36/0.30
|
3.84
|
11
|
12.5
|
18
|
|
4
|
56/0.30
|
4.5
|
13
|
14.1
|
26
|
|
6
|
84/0.30
|
5.3
|
14.6
|
16
|
31
|
|
10
|
140/0.30
|
6.5
|
18
|
20.35
|
42
|
|
16
|
224/0.30
|
8
|
21.2
|
23.4
|
57
|
|
25
|
350/0.30
|
10.1
|
26
|
28.8
|
72
|
|
35
|
490/0.30
|
11.3
|
28.3
|
31.5
|
90
|
|
50
|
703/0.30
|
13.6
|
33.5
|
37.3
|
115
|
|
70
|
988/0.30
|
15.3
|
37.8
|
42.2
|
143
|
|
95
|
1349/0.30
|
18
|
43.5
|
48.8
|
165
|
|
Flat Submersible Water Pump Cables Parameter
|
|||||
|
Conductor Size
|
No of Conductor
|
Nos of Dia. Of Wire
|
Ground Conductor Size
|
Core Dia
|
Nominal Sheath Thickness
|
|
Awg
|
Awg
|
mm
|
mm
|
||
|
14
|
3
|
41×0.254
|
14
|
3.85
|
1.15
|
|
12
|
3
|
65×0.254
|
12
|
4.5
|
1.15
|
|
10
|
3
|
105×0.254
|
10
|
5.3
|
1.15
|
|
8
|
3
|
168×0.254
|
10
|
6.5
|
1.4
|
|
6
|
3
|
226×0.254
|
8
|
8
|
2
|
|
4
|
3
|
420×0.254
|
8
|
10.1
|
2
|
|
2
|
3
|
665×0.254
|
6
|
11.3
|
2.2
|
|
1
|
3
|
817×0.254
|
6
|
13.6
|
2.2
|
|
1/0
|
3
|
1045×0.254
|
6
|
15.6
|
2.2
|
|
2/0
|
3
|
1330×0.254
|
6
|
18
|
2.2
|
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 15,0000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
We are China High Quality Power and Signal Wires Underwater Hybrid Cable for Submersible Pump manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Custom Cable, Electrical Wire, Henan Huadong Cable Co., Ltd.Similar Or Related
-

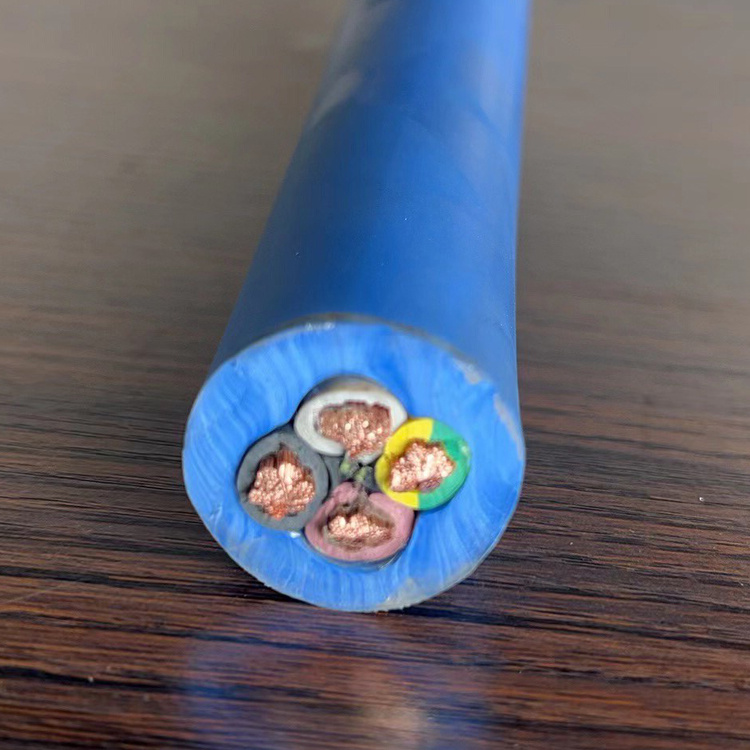

Flexible Rubber CE Certificated H07rn8-F Blue Color 4 Core Round Submersible Pump Cable
-
High Quality Solar Pump Four Core Rubber Blue Flat Cable 2.5mm2
-

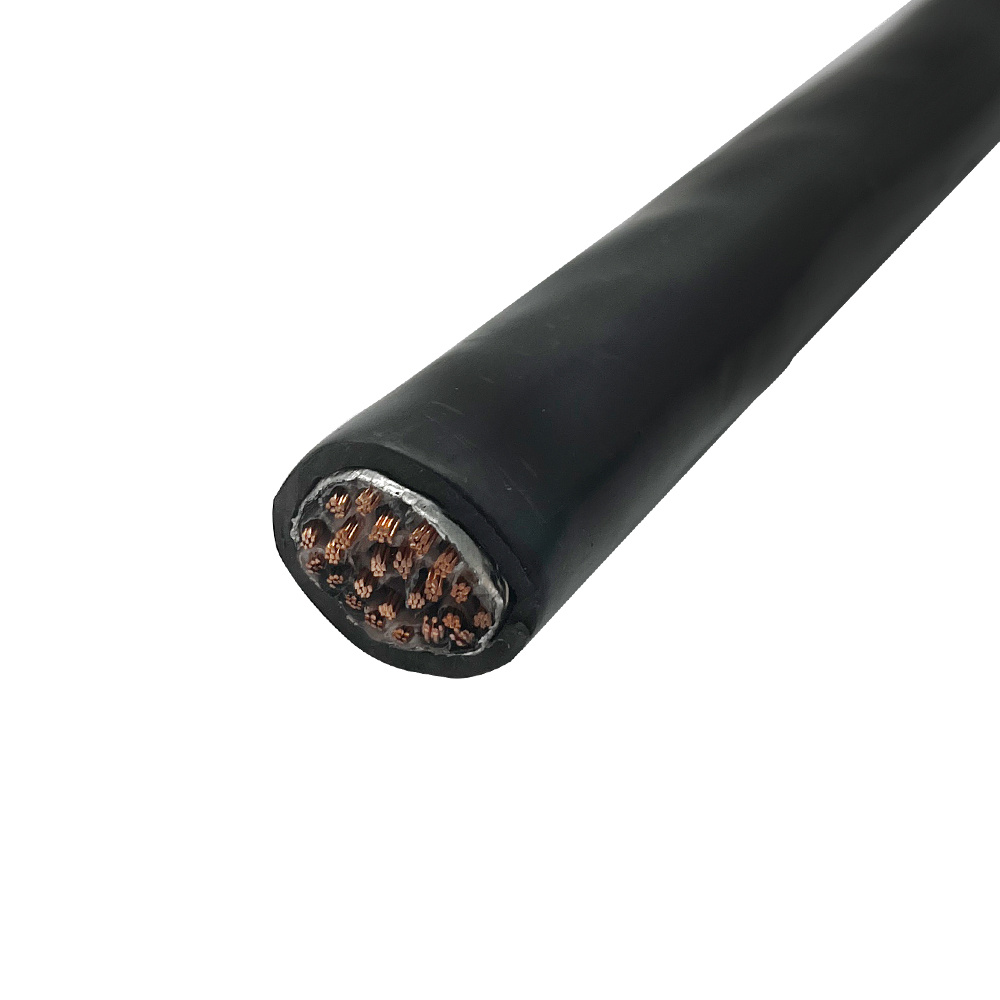

Signals Transmission 20 Pairs X1.5 mm2 Electric Wire PVC Insulated Instrument Cable
-

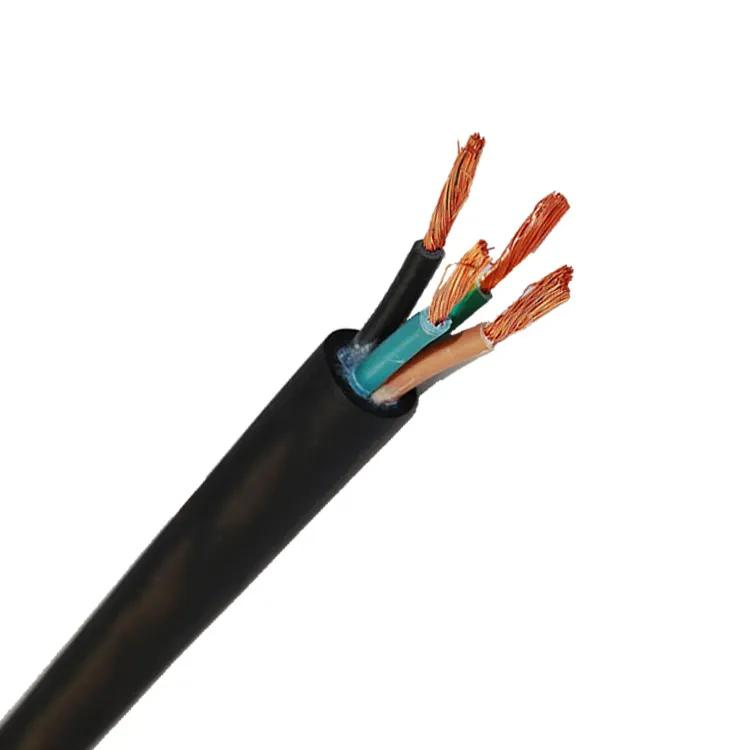

450/750V Epr/EPDM H05rn-F H07rn-F Flexible Electric Waterproof 16mm 4 Core Rubber Cable
-
