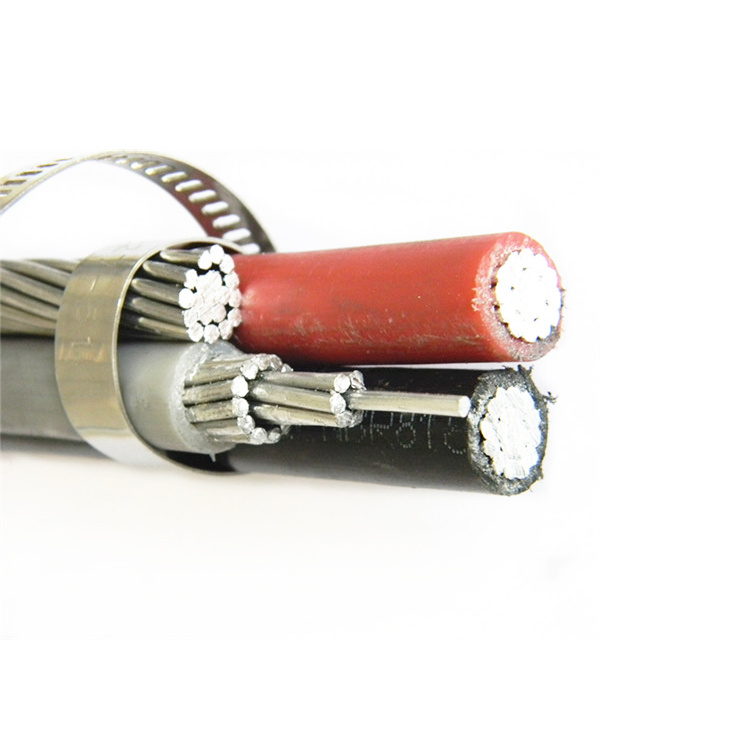

High Performance Overhead ASTM/Icea Petella Fusus Oyster Portunus Duplex Service Drop Cable

High Performance Overhead ASTM/Icea Petella Fusus Oyster Portunus Duplex Service Drop Cable image

Get Latest Price Request a quote

Product Details

Model NO.

ABC-ASTM

Insulation Material

XLPE

Sheath Material

XLPE/PE

Material Shape

Round Wire

Wire Core Material

Aluminium Conductor

Certification

ASTM/Icea

Model

ABC Overhead Insulated Cable

Brand

Huadong

Product Name

Aerial Bundled ABC Wire Cable

Rated Voltage

0.6/1kv

Cores

1 2 3 4 5 Cores

Standards

Icea S-76-474

Size

6 4 1/0 1/0 1/0 2/0 2/0 3/0 4/0 AWG 336.4 Mcm

Price

Get Within 12 Hours

MOQ

1000m

Transport Package

by Wooden Drum

Specification

by meters

Trademark

huadong

Origin

China

HS Code

8544492100

Production Capacity

15 Million Km

Product Description

Huadong factory wholesale aluminium conductor service drop abc cable

Phase Conductor : Stranded All Aluminum 1350 (AAC)
Neutral Conductor : AAC/AAAC/ACSR
Insulation : XLPE/ PE
Rated Voltage : 600V
Cores : 2+1, 3+1,4+1 etc
Other Standards: NFC 33-209/ BS 7870-5/ IEC 60502/AS/NZS/Ghost or according to your requirement.
Application: The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium,
insulated with XLPE.Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation
as overhead power lines up to 1000V

Duplex Service Cable-AAAC
Code* Word	Phase Conductor			Bare/Neutral Messenger			Weight /Per 1000 ft.(lbs.)
Code* Word	Size(AWG or kcmil)	Strand- ing	Insul. Thick. (mils)	Equiv. Dia. (AWG)++	Size++ (kcmil)	Strand- ing	XLPE	POLY
6201 Alloy Neutral-Messenger
Chihuahua	6	1	45	6	7	7	65	65
Vizsia	6	7	45	6	7	7	68	68
Harrier	4	1	45	4	7	7	99	99
Whippet	4	7	45	4	7	7	103	103
Schnauzer	2	7	45	2	7	7	157	157
Heeler	1/0	9	60	1/0	7	7	250	250

Triplex Service Drop Cable-AAC
Code* Word	Phase Conductor			Bare Neutral Messenger			Weight /Per 1000 ft.(lbs.)
Code* Word	Size(AWG or kcmil)	Strand- ing	Insul. Thick. (mils)	Size++ (kcmil)	Strand- ing	Rated Strength (lbs)	XLPE	POLY
AAC Neutral-Messenger
Patella	6	7	45	6	7	563	103	103
Oyster	4	7	45	4	7	881	154	154
Clam	2	7	45	2	7	1350	233	233
Murex	1/0	7	60	1/0	7	1990	374	374
Purpura	1/0	9	60	1/0	7	1990	368	368
Nassa	2/0	7	60	2/0	7	2510	462	462
Melita	3/0	17	60	3/0	19	3310	562	562
Portunus	4/0	18	60	4/0	19	4020	696	696
Nannynose	336.4	19	80	336.4	19	6146	1118	1118

Quadruplex Service Drop-ACSR
Code* Word	Phase Conductor			Bare Neutral Messenger			Weight /Per 1000 ft.(lbs.)
Code* Word	Size(AWG or kcmil)	Strand- ing	Insul. Thick. (mils)	Size++ (kcmil)	Strand- ing	Rated Strength (lbs)	XLPE	POLY
ACSR Neutral-Messenger
Morochuca	6	1	45	6	6/1	1190	145	145
Chola	6	7	45	6	6/1	1190	153	153
Morgan	4	1	45	4	6/1	1860	217	217
Hackney	4	7	45	4	6/1	1860	229	229
Palomino	2	7	45	2	6/1	2850	347	347
Costena	1/0	9	60	1/0	6/1	4380	549	549
Grullo	2/0	11	60	2/0	6/1	5310	677	677
Suffolk	3/0	17	60	3/0	6/1	6620	837	837
Appaloosa	4/0	18	60	4/0	6/1	8350	1038	1038
Gelding	336.4	19	80	4/0	6/1	8350	1494	1494
Bronco	336.4	19	80	336.4	18/1	8680	1568	1568

Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
