Heat Resistance H05rn-F Copper Conductor Hv Rubber Power Cable

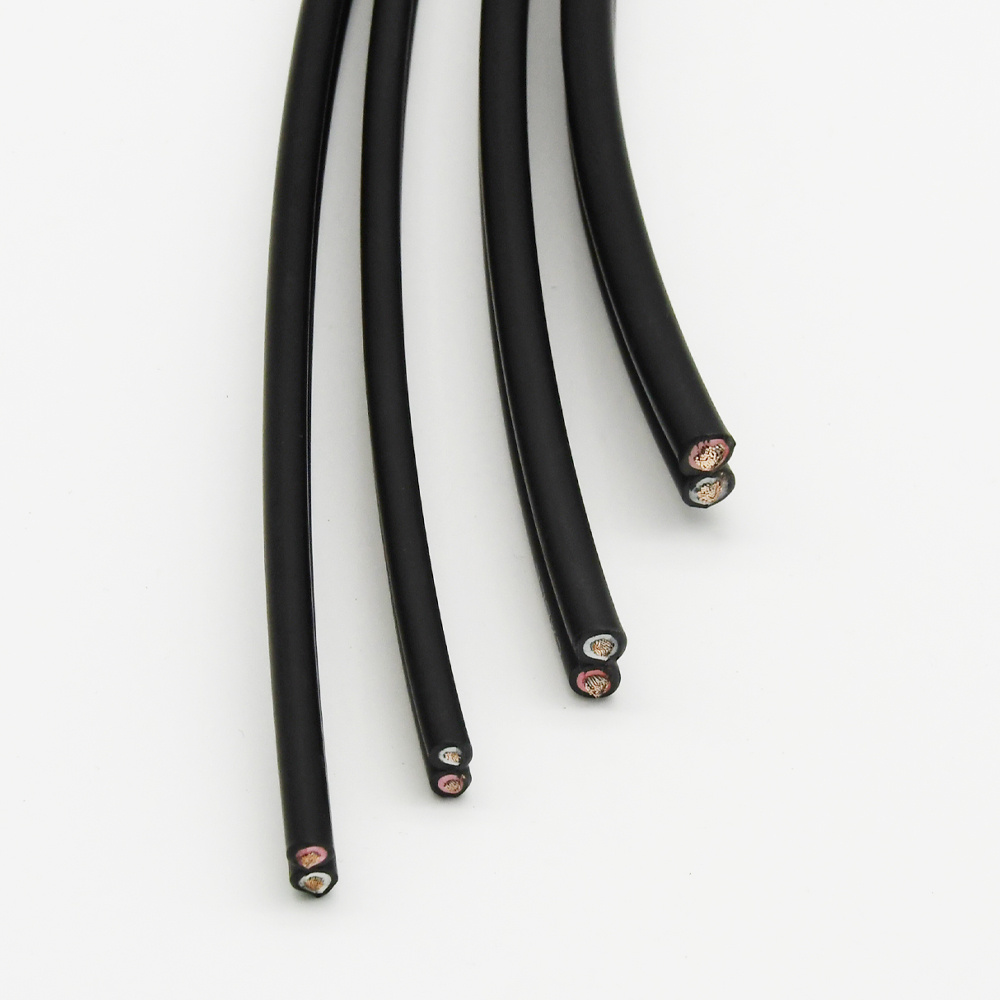

Heat Resistance H05rn-F Copper Conductor Hv Rubber Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

H07/05RN-F

Insulation Material

Epr/EPDM

Sheath Material

Pcp/CPE

Material Shape

Round or Flat

Wire Core Material

Copper

Certification

ISO, CCC, CE, VDE

Model

Ycw

Brand

Huadong

Product Name

Flexible Rubber Cable

Rated Voltage

450/750V,300V/500V

Cross Section Size

1.5-800mm2

Cores

1-5 Cores or Others

Standards

VDE EU Ieca, BS, DIN Ect

Temperature

-40 to 90 Centigrade

Warranty

100% Qualified

Sample

Available

Color

Blue, Black, Brown, Green/Yellow

Price

Get Within 12 Hours

Transport Package

by Wooden Drum or Others

Specification

by meters

Trademark

huadong

Origin

China

HS Code

8544492100

Production Capacity

15 Million Km

Product Description

heat resistance H05rn-F Copper Conductor hv rubber power cable

H07/05RN-F Rubber Cable Feature:

1. Conductor: Class 5 flexible plain copper conductor
2. Insulation: EPR(Ethylene Propylene Rubber)
3. Sheath: PCP(Polychioroprene)
4. Cores: 1 2 3 4 5 Cores or Others
5. Voltage: 450/750V,300/500V
6. Temperature Rating: conductor operation temperature -40°C to +60°C(90°C max)
7. Minimum Bending Radius: Up to 25mm2,6xoverall diameter;
8. Above to 25mm2: 8x overall diameter

H07/05RN-F Rubber Cable Application
These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical
and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual
equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial
environments.

Product Parameters:

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES	mm²	mm	mm	kg/km
1	1.5	0.8	5.8	52
1	2.5	0.9	6.5	67
1	4	1	7.4	92
1	6	1	8.1	119
1	10	1.2	9.8	185
1	16	1.2	11.35	258
1	25	1.4	13.3	375
1	35	1.4	14.6	485
1	50	1.6	17.2	669
1	70	1.6	19.35	892
1	95	1.8	22.2	1160
1	120	1.8	24.3	1436
1	150	2	25.9	1748
1	185	2.2	29.7	2142
1	240	2.4	31.5	2698
1	300	2.6	36.5	3348
1	400	2.8	40.4	4293
1	500	3	42.6	5262
1	630	3	47.2	6790
2	1	0.8	8.1	94
2	1.5	0.8	9	120
2	2.5	0.9	10.7	173
2	4	1	12.3	239
2	6	1	13.8	313
2	10	1.2	18.6	563
2	16	1.2	21.7	830
2	25	1.4	25.8	1211
3	1	0.8	8.74	117
3	1.5	0.8	9.68	147
3	2.5	0.9	11.48	223
3	4	1	13.2	297
3	6	1	14.78	390
3	10	1.2	19.9	705
3	16	1.2	23.31	1031
3	25	1.4	27.7	1512
3	35	1.4	30.2	1907
3	50	1.6	35.8	2651
3	70	1.6	40.1	3484
3	95	1.8	46.4	4594
4	1	0.8	9.63	142
4	1.5	0.8	10.63	180
4	2.5	0.9	12.6	260
4	4	1	14.6	336
4	6	1	16.4	449
4	10	1.2	21.8	833
4	16	1.2	25.4	1138
4	25	1.4	30.7	1714
4	35	1.4	33.4	2204
4	50	1.6	39.6	3029
4	70	1.6	44.9	4121
4	95	1.8	51.9	5361
4	120	1.8	61.3	7400
5	1.5	0.8	11.8	206
5	2.5	0.9	14	297
5	4	1	16.2	422
5	6	1	18.2	567
5	10	1.2	24	1010
5	16	1.2	28.2	1400
5	25	1.4	33.9	2096
5	35	1.4	37.2	2700
5	50	1.6	44	3730
5	70	1.6	54	4945
5	95	1.8	63	6430
7	1.5	0.8	15.13	315
7	2.5	0.9	17.6	445
12	1.5	0.8	18.2	493
12	2.5	0.9	21.4	702
19	1.5	0.8	22.1	710

Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 2005, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 66,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.

We are China Heat Resistance H05rn-F Copper Conductor Hv Rubber Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
