H05V-U, H07V-U, H07V-R 12AWG 14AWG UL1063 for Machine Tool Wire
H05V-U, H07V-U, H07V-R 12AWG 14AWG UL1063 for Machine Tool Wire image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Copper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.
| Type | H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVR | |
| Voltage Rate | 300/500V, 450/750V | |
| Range of Nominal cross section: | 0.75 mm2 ~ 630 mm2 | |
| Application | These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. | |
| Standard | IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734 | |
| Constructions | Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request |
|
| Max. Operating Temperature | 70°C, can be 90°C,105°C as per requirement | |
| Packing | 100 meter/roll or as per requirement | |
| Production Capacity | 100 kilometer/ day | |
| MOQ | 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size | |
| Delivery time | 10~15 working days | |
| Remark | The cable can be of flame retardance, fire resistance and other property | |
Type and description
| Serial number |
Type | Description |
| 1 | 60227 IEC 01(BV) (H07V-U or H07V-R) | Single core solid or stranded conductor unsheathed cable for general purposes |
| 2 | 60227 IEC 02(RV) (H07V-K) | Single core flexible conductor unsheathed cable for general purposes |
| 3 | 60227 IEC 05(BV) (H05V-U or H05V-R) | Single core 70ºC solid or stranded conductor unsheathed cable for internal wiring |
| 4 | 60227 IEC 06(RV) (H05V-K) | Single core 70ºC flexible conductor unsheathed cable for internal wiring |
| 5 | 60227 IEC 07(BV-90) (H07V2-U or H07V2-R) | Single core 90ºC solid conductor unsheathed cable for internal wiring |
| 6 | 60227 IEC 08(RV-90) (H07V2-K) | Single core 90ºC flexible conductor unsheathed cable for internal wiring |
| 7 | 60227 IEC 10(BVV) (NYY or NYM) | Light PVC sheathed cable |
| 8 | 60227 IEC 42(RVB) | Flat unsheathed flexible wire |
| 9 | 60227 IEC 52(RVV) (H03VV-F,H03VV2-F) | Light PVC sheathed flexible wire
|
| 10 | 60227 IEC 53(RVV) (H05VV-F,H05VV2-F) | Common PVC sheathed flexible wire
|
| 11 | BV (H07V-U or H07V-R) | Copper conductor PVC insulated wire |
| 12 | BLV | Aluminum conductor PVC insulated wire |
| 13 | BVR | Copper conductor PVC insulated flexible cable |
| 14 | BVV (NYY or NYM) | Copper conductor PVC insulated sheathed circular cable |
| 15 | BLVV | Aluminum conductor PVC insulated and sheathed round cable |
| 16 | BVVB (H05VVH2-F) | Copper conductor PVC insulated and sheathed flat cable |
| 17 | BLVVB | Aluminum conductor PVC insulated sheathed flat cable |
| 18 | NMD-90 | Copper conductor PVC/Nylon Insulated PVC Jacked flat cable |
| 19 | RVS | Twisted copper conductor PVC insulated flexible cable for conection |
| 20 | AVP | Copper conductor PVC insulated wire with shied for installation |
| 21 | RVP | Copper conductor PVC insulated flexible wire with shield |
| 22 | RVVP | Copper conductor PVC insulated, shielded, PVC sheathed flexible cable |
Performance in line with IEC60332,IEC 61034,IEC60754 requirements.
Drawing structure of cable :
Technical parameter
Table 1 IEC 60227 Standard
| Type | No. of cores ×Nom. Cross Section mm2 |
No ./Dia. of strand mm |
Nom. Thickness of insulation mm |
Nom. thickness of sheath mm |
Average O.D. mm |
Max. DC conductor resistance at 20ºC Ω/km |
Min. Insulating resistance at 70ºC MΩ·km |
||
| Min. | Max. | Copper core |
Tinned copper core |
||||||
| 60227 IEC 10(BVV) 300/500V |
2×1.5 | 1/1.37 | 0.7 | 1.2 | 7.6 | 10.0 | 12.1 | 12.2 | 0.011 |
| 2×1.5 | 7/0.52 | 0.7 | 1.2 | 7.8 | 10.5 | 12.1 | 12.2 | 0.01 | |
| 3×1.5 | 1/1.37 | 0.7 | 1.2 | 8.0 | 10.5 | 12.1 | 12.2 | 0.011 | |
| 3×1.5 | 7/0.52 | 0.7 | 1.2 | 8.2 | 11.0 | 12.1 | 12.2 | 0.01 | |
| 4×1.5 | 1/1.37 | 0.7 | 1.2 | 8.6 | 11.5 | 12.1 | 12.2 | 0.011 | |
| 4×1.5 | 7/0.52 | 0.7 | 1.2 | 9.0 | 12.0 | 12.1 | 12.2 | 0.01 | |
| 5×1.5 | 1/1.37 | 0.7 | 1.2 | 9.4 | 12.0 | 12.1 | 12.2 | 0.011 | |
| 5×1.5 | 7/0.52 | 0.7 | 1.2 | 9.8 | 12.5 | 12.1 | 12.2 | 0.01 | |
| 2×2.5 | 1/1.76 | 0.8 | 1.2 | 8.6 | 11.5 | 7.41 | 7.56 | 0.01 | |
| 2×2.5 | 7/0.68 | 0.8 | 1.2 | 9.0 | 12.0 | 7.41 | 7.56 | 0.009 | |
| 3×2.5 | 1/1.76 | 0.8 | 1.2 | 9.2 | 12.0 | 7.41 | 7.56 | 0.01 | |
| 3×2.5 | 7/0.68 | 0.8 | 1.2 | 9.4 | 12.5 | 7.41 | 7.56 | 0.009 | |
| 4×2.5 | 1/1.76 | 0.8 | 1.2 | 10.0 | 13.0 | 7.41 | 7.56 | 0.01 | |
| 4×2.5 | 7/0.68 | 0.8 | 1.2 | 10.0 | 13.5 | 7.41 | 7.56 | 0.009 | |
| 5×2.5 | 1/1.76 | 0.8 | 1.2 | 11.0 | 14.0 | 7.41 | 7.56 | 0.01 | |
| 5×2.5 | 7/0.68 | 0.8 | 1.2 | 11.0 | 14.5 | 7.41 | 7.56 | 0.009 | |
| 2×4 | 1/2.24 | 0.8 | 1.2 | 9.6 | 12.5 | 4.61 | 4.7 | 0.0085 | |
| 2×4 | 7/0.85 | 0.8 | 1.2 | 10.0 | 13.0 | 4.61 | 4.7 | 0.0077 | |
| 3×4 | 1/2.24 | 0.8 | 1.2 | 10.0 | 13.0 | 4.61 | 4.7 | 0.0085 | |
| 3×4 | 7/0.85 | 0.8 | 1.2 | 10.5 | 13.5 | 4.61 | 4.7 | 0.0077 | |
| 60227 IEC 52(RVV) 300/300V |
2×0.5 | 16/0.20 | 0.5 | 0.6 | 4.8 | 6.0 | 39 | 40.1 | 0.012 |
| 2×0.5 | 16/0.20 | 0.5 | 0.6 | 3.0 4.8 | 3.6 6.0 | 39 | 40.1 | 0.012 | |
| 2×0.75 | 24/0.20 | 0.5 | 0.6 | 5.2 | 6.4 | 26 | 26.7 | 0.01 | |
| 2×0.75 | 24/0.20 | 0.5 | 0.6 | 3.2 5.2 | 3.9 6.4 | 26 | 26.7 | 0.01 | |
| 3×0.5 | 16/0.20 | 0.5 | 0.6 | 5.0 | 6.2 | 39 | 40.1 | 0.012 | |
| 3×0.75 | 24/0.20 | 0.5 | 0.6 | 5.4 | 6.8 | 26 | 16.7 | 0.01 |
| 60227 IEC 53(RVV) 300/500V |
2×0.75 | 24/0.20 | 0.6 | 0.8 | 6.0 | 7.6 | 26.0 | 26.7 | 0.011 |
| 2×0.75 | 24/0.20 | 0.6 | 0.8 | 3.8×6.0 | 5.2×7.6 | 26.0 | 26.7 | 0.011 | |
| 2×1 | 32/0.20 | 0.6 | 0.8 | 6.4 | 8.0 | 19.5 | 20.0 | 0.010 | |
| 2×1.5 | 30/0.25 | 0.7 | 0.8 | 7.4 | 9.0 | 13.3 | 13.7 | 0.010 | |
| 2×2.5 | 50/0.25 | 0.8 | 1.0 | 8.9 | 11.0 | 7.98 | 8.21 | 0.009 | |
| 3×0.75 | 24/0.20 | 0.6 | 0.8 | 6.4 | 8.0 | 26.0 | 26.7 | 0.011 | |
| 3×1 | 32/0.20 | 0.6 | 0.8 | 6.8 | 8.4 | 19.5 | 20.0 | 0.010 | |
| 3×1.5 | 30/0.25 | 0.7 | 0.9 | 8.0 | 9.8 | 13.3 | 13.7 | 0.010 | |
| 3×2.5 | 50/0.25 | 0.8 | 1.0 | 9.6 | 12.0 | 7.98 | 8.21 | 0.009 |
Technical Information:
1. U0 /U: 300/500V,450/750V
2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent
4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5. Insulation:PVC
6.Cores:single core
7.Range of Nominal cross section: 0.75~240sqmm
8. Jacket: without Jacket
9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.
Parameter of bv/bvr cable
| Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105 PVC Insulation |
BV cable of Common wire
Kindly note that we can make it as your requirement
BV Cable data 1:
| Norminal Sectional area mm2 | Conductor No/Dia.mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor Resistance at 20°C | Min insulated resistance at 70MΩ/KM | Weight Kg/km | ||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | – | 0.011 | 19.2 | – |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | – | 0.010 | 20.6 | – |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.7 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 5000.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
BV/BVR Cable data 2:
| Norminal Sectional area mm2 | Conductor No/Dia.mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor Resistance at 20°C | Min insulated resistance at 70MΩ/KM | Weight Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.64 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.0 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
All the goods are full meter and working life are 25 years!
Company Information
BV cable factory and worshop corner
solar cable have one big workshop about 10,000m2, our factory is about 61,081m2 with register capital about 540 million. 700 stuff and 40 engineer. every step is to make sure the delivery time and quality!
Packaging & Shipping
BV wire packing, we can also make it as your need for that we have two professional wooden engineer
Inspection machine
BV cable six inspection machine
We inspect every product before deliverying the goods to ensure the quality!
Contact us
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
We are China H05V-U, H07V-U, H07V-R 12AWG 14AWG UL1063 for Machine Tool Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Similar Or Related
-

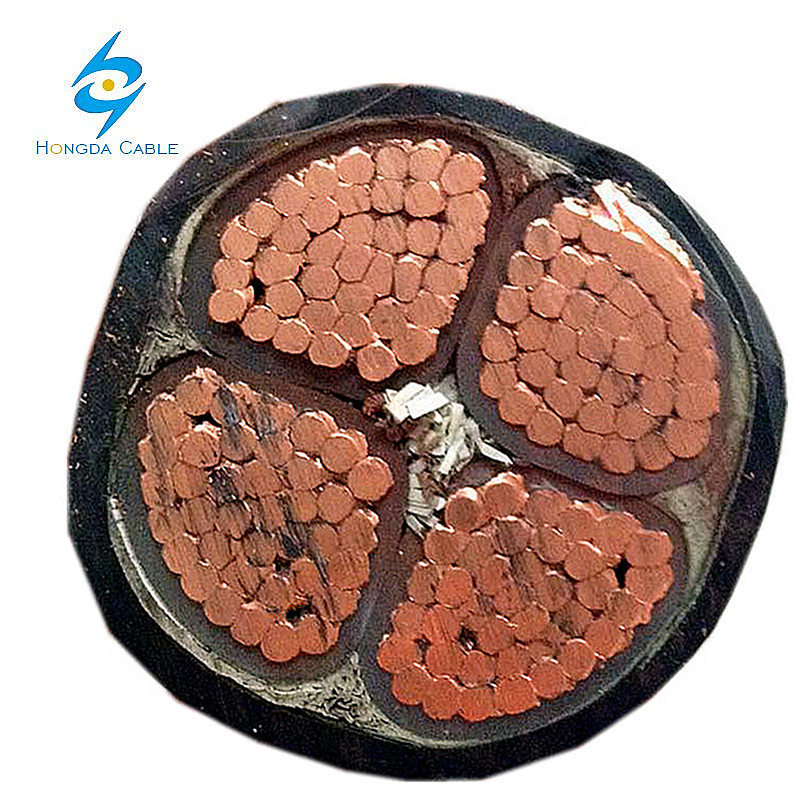

Low Volatge 4X95mm2 4X120mm2 Cu XLPE PVC Copper Core Unarmoured Underground Cable for Power Station
-

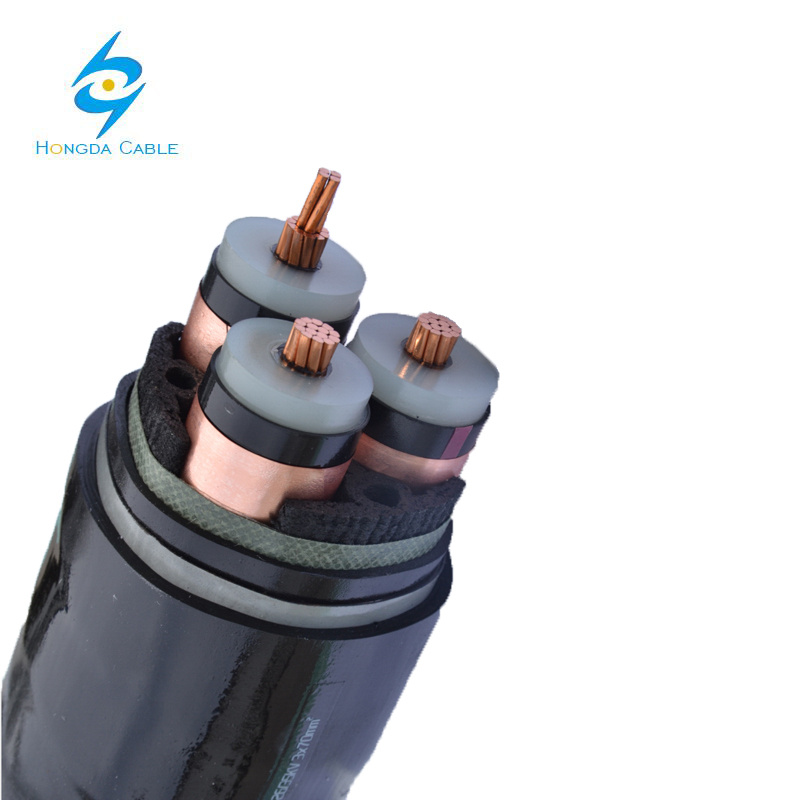

N2sxy N2xs2y N2xsey Na2xsy and Na2xs2y with BS6622, BS7835, IEC60502 Cable
-

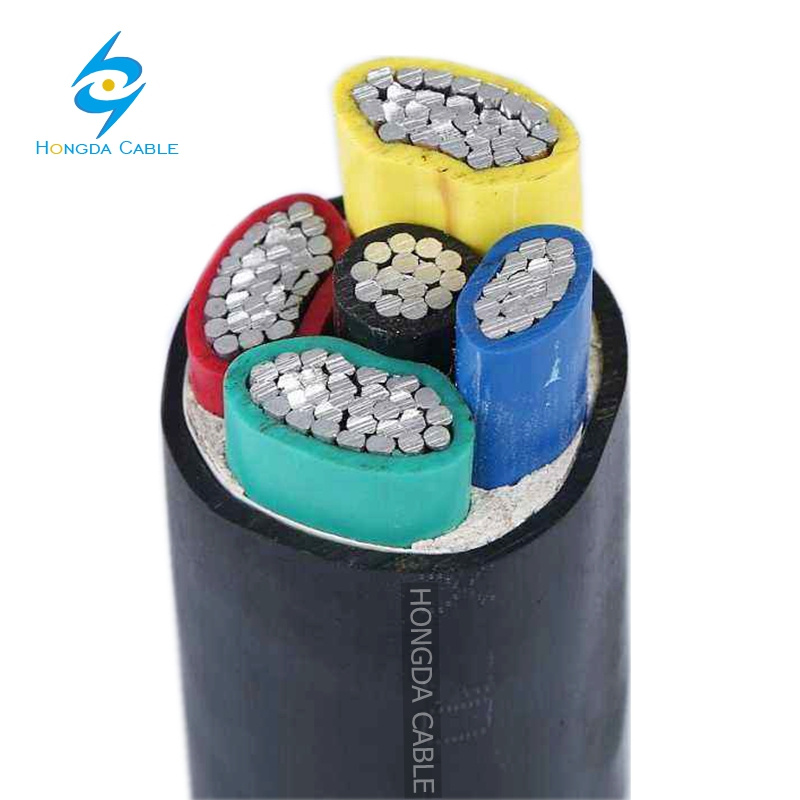

Alu Erdleitung Starkstrom Kabel Nayy-J 5X70 RM Ground Wire Cable
-

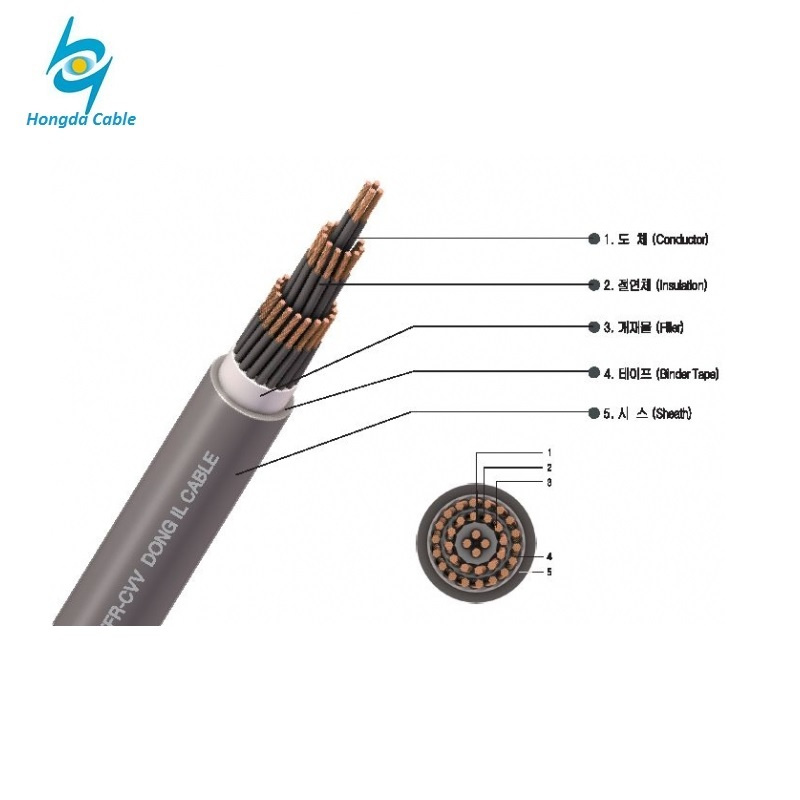

LSZH Flexible Low Voltage PVC Copper Wire Multi Core 2.5mm Electric Control Cable
-

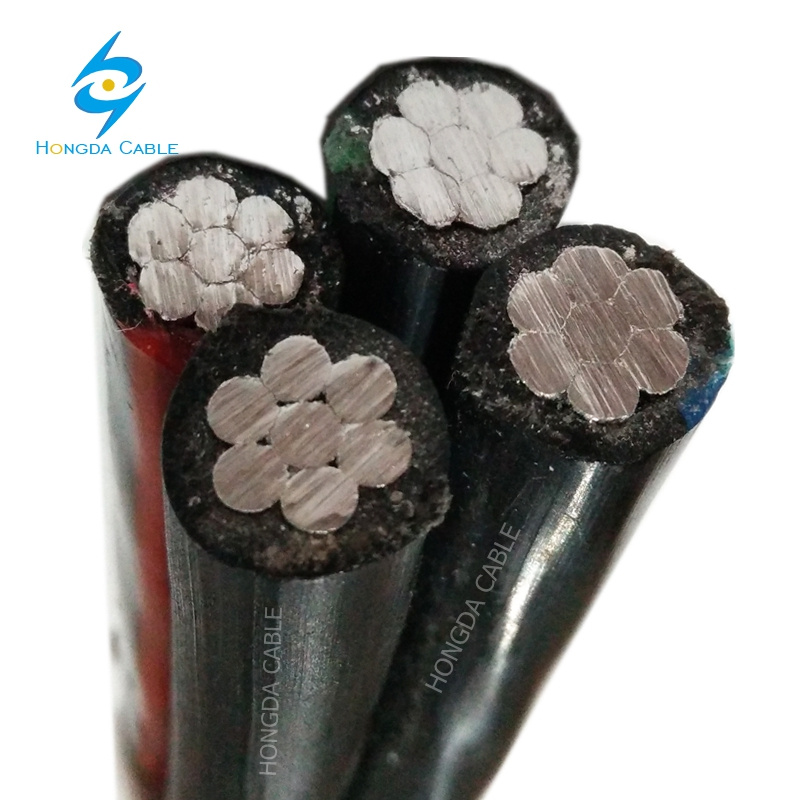

ABC Aerial Twisted Aluminum Overhead Cable Kabel
