DC1500V XLPE 2.5mm2 4.0mm2 6.0mm2 10mm2 16mm2 Underground Power Cable TUV Certification PV Solar Cable 4/6mm2 Cable
DC1500V XLPE 2.5mm2 4.0mm2 6.0mm2 10mm2 16mm2 Underground Power Cable TUV Certification PV Solar Cable 4/6mm2 Cable image
Get Latest Price Request a quote
You May Like
Product Details
Packaging & Delivery
Product Description
1 Application
TUV Approved Heat Resistant XLPE Insulated PV Cable for Solar Energy is used in a fixed installation, internal connection of solar panels. This product has excellent UV-resistant performance and is TUV approved.
2 Product Description (TUV and UL certificate)
1 .Standard: 2 PFG 1169 08.2007 and UL 4703
2 . Conductor Material: Stranded tinned copper
3. Insulation Material: XLPE
4. Sheath Material:XLPE
5. standard: TUV 2Pfg 1169 08.07
6. Rated voltage: AC Uo/U0.6~1.0KV, DC1.8KV
8.Ambient temperature: -40~+90C
9. The expected period of use: 25years
10. Flame rated IEC60332-1-2
3 Characteristic of solar cable:
1. Double insulation, electron beam cross-linked
2. Excellent resistance to UV, water, ozone, fluids, salt, general Weathering
3. Excellent resistance to abrasion
4. Halogen-free, flame retardant, low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7. TUV and UL approved
4 Datasheet of Solar cable:
| Sectional area (mm2) | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 |
| Copper (Ω/km) | 36 | 24.5 | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 |
| Tinned copper (Ω/km) | 36.7 | 24.8 | 18.2 | 12.2 | 7.56 | 4.7 | 3.11 | 1.84 | 1.16 |
| Sectional area (mm2) | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
| Copper (Ω/km) | 0.727 | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 | 0.0754 |
| Tinned copper (Ω/km) | 0.734 | 0.529 | 0.391 | 0.27 | 0.195 | 0.154 | 0.126 | 0.1 | 0.0762 |
5 Packing of sloar cable:
FAQ:
1.How many year have our factory producing power cable?
Our factory produce power cable for 30 years.
2 Hong Long time the customer can get the new price after get your inquiry?
Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.
3.Which port our factory is near to? Tianjin , Qingdao port.
4.Which payment term do we accept?
T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.
5.What about the package for our power cable?
It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.
6.How long meter power cable for one wooden drum?
This is according to power cable’s diameter and customer’s requirments.
7.How about our delivery time?
According to your order’s quantity , for 1million meters power cable, it is only 25 working days is ok.
8.Do we provide sample for free?
Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
Our service:
1.30 years production experience and 22 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
We are China DC1500V XLPE 2.5mm2 4.0mm2 6.0mm2 10mm2 16mm2 Underground Power Cable TUV Certification PV Solar Cable 4/6mm2 Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Electrical Wire, Hebei Huatong Wires & Cables Group Co., Ltd., Solar CableSimilar Or Related
-
UL and CSA Approval Thhn Thwn Tfn T90 Electric Copper Building Wire Nylon PVC Jacket 12AWG
-
China Largest Manufacturer UL CSA Standard Copper Building Wire Thwn Thhn 4/0 AWG Nylon Cable
-
UL CSA Building Wire Copper Stranded Thhn PVC Nylon Jacket Black Yellow Green 500FT 250FT
-
TUV Certificate Aluminum Alloy Solar Battery Power Cable DC1500V Xlpo Sheath 185mm
-

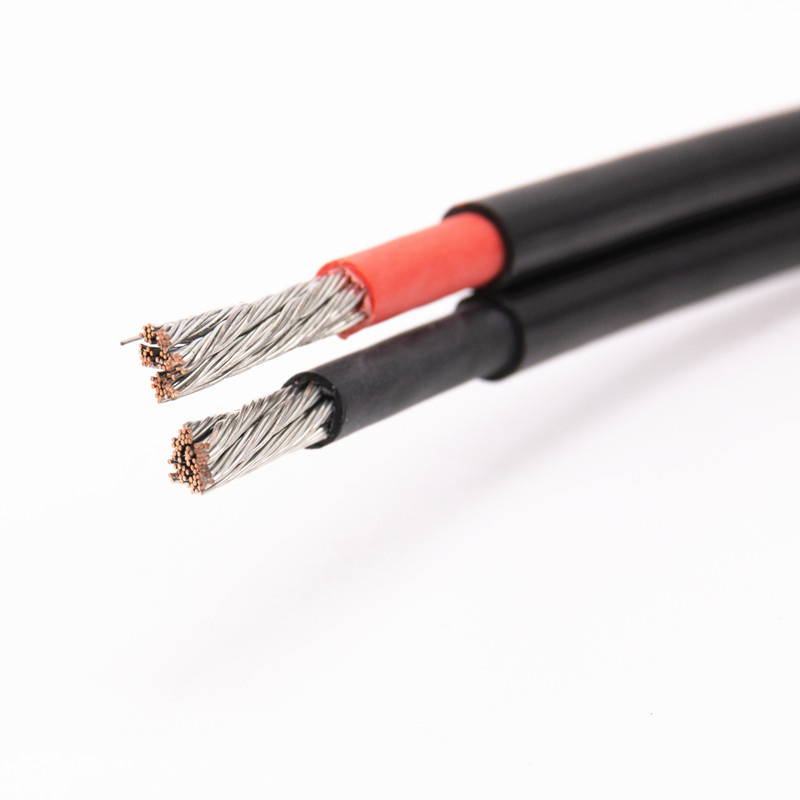

En50618 Standard Single Core and Twin Core Photovoltaic Conductor Solar Wire Cable 6mm 4mm
