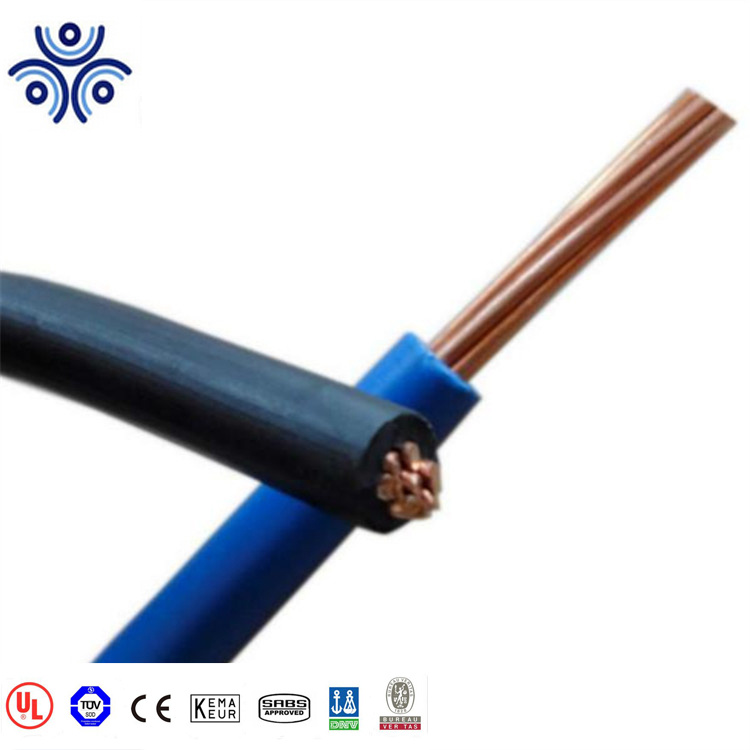

Cu PVC Insulated Copper Nya Nyaf Heater Cable Wires 750V 1.5mm 2.5mm 4mm 6mm
Cu PVC Insulated Copper Nya Nyaf Heater Cable Wires 750V 1.5mm 2.5mm 4mm 6mm image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Application and Description
The NYA conductor is suitable for most current wiring solutions for residential, commercial and industrial
environments. It is used in service entrance, feeders and branch circuits for permanent installations.
NYA conductors in sizes 14 AWG to 1000 Kcmil (MCM) can be installed in conduits and other raceways. The
temperature of installation shall not exceed 75ºC(THW), not exceed 90ºC(THW-2).
Cable Construction
Conductor:
Bare annealed copper conductor, solid or stranded
Insulation:
PVC 70°C insulation
Color:
upon request, black is preferable
Technical Compliances
– ASTM B3, B8
– IEC60502
– UL 83 – Thermoplastic-Insulated Wires and Cables
– UL 1581 – Electrical Wires, Cables and Flexible Cords
Cable Parameter
| AWG OR KCMIL | STRAND | NOMINAL INSULATION THICKNESS INCH/MM | NOMINL OVERALL DIAMETER INCH/MM | CABLE WEIGHT LBS/KFT KG/KM |
|---|---|---|---|---|
| 14 | 1 | 0.030 | 0.76 | 0.169 |
| 12 | 1 | 0.030 | 0.76 | 0.189 |
| 10 | 1 | 0.030 | 0.76 | 0.213 |
| 8 | 1 | 0.045 | 1.14 | 0.240 |
| 6 | 1 | 0.060 | 1.52 | 0.276 |
| 14 | 7 | 0.030 | 0.76 | 0.177 |
| 12 | 7 | 0.030 | 0.76 | 0.201 |
| 10 | 7 | 0.030 | 0.76 | 0.228 |
| 8 | 7 | 0.045 | 1.14 | 0.291 |
| 6 | 7 | 0.060 | 1.52 | 0.335 |
| 4 | 7 | 0.060 | 1.52 | 0.386 |
| 2 | 7 | 0.080 | 2.03 | 0.445 |
| 1 | 19 | 0.080 | 2.03 | 0.531 |
| 1/0 | 19 | 0.080 | 2.03 | 0.575 |
| 2/0 | 19 | 0.080 | 2.03 | 0.622 |
| 3/0 | 19 | 0.080 | 2.03 | 0.677 |
| 4/0 | 37 | 0.080 | 2.03 | 0.740 |
| 250 | 37 | 0.095 | 2.41 | 0.823 |
| 300 | 37 | 0.095 | 2.41 | 0.882 |
| 350 | 37 | 0.095 | 2.41 | 0.937 |
| 400 | 37 | 0.095 | 2.41 | 0.984 |
| 500 | 61 | 0.095 | 2.41 | 1.079 |
| 600 | 61 | 0.110 | 2.79 | 1.197 |
| 700 | 61 | 0.110 | 2.79 | 1.272 |
| 750 | 61 | 0.110 | 2.79 | 1.307 |
| 800 | 61 | 0.110 | 2.79 | 1.343 |
| 900 | 61 | 0.110 | 2.79 | 1.409 |
| 1000 | 61 | 0.110 | 2.79 | 1.472 |

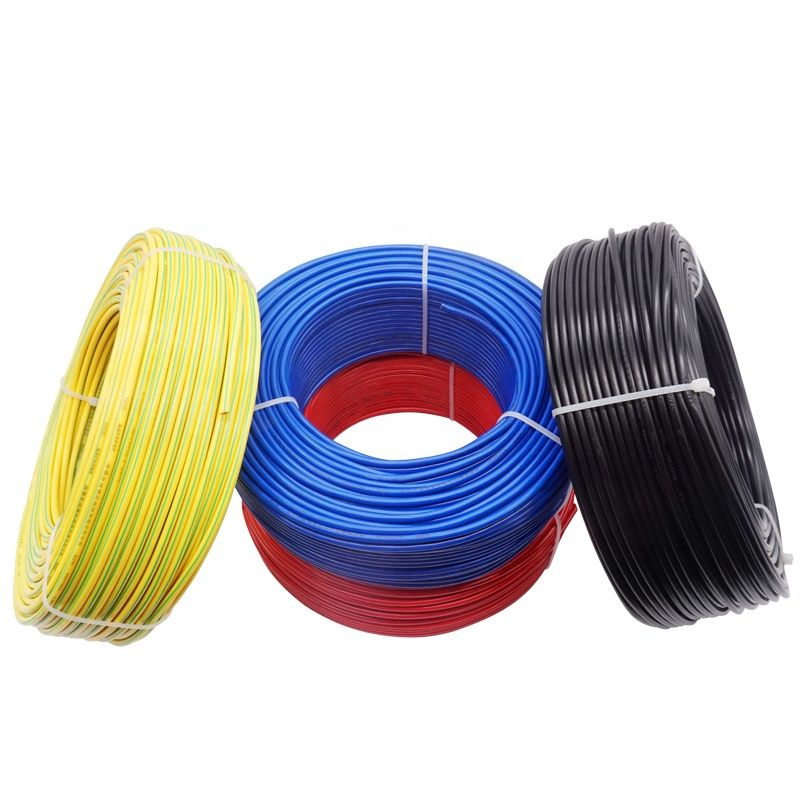

Available Color
