Cu 24kv Cyaby-F 3X240 mm2 Steel Reinforced Electrical Power Cable

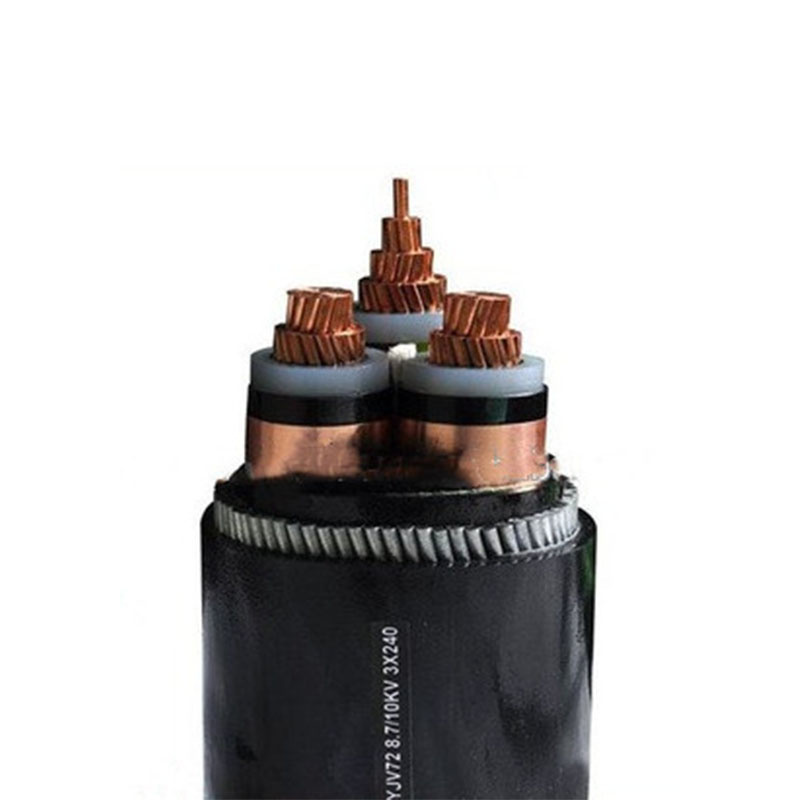

Cu 24kv Cyaby-F 3X240 mm2 Steel Reinforced Electrical Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

CYABY-F

Current

AC Cable

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC

Model

Yjv22

Brand

Hongda

Inner Semi-Conductive Layer

Semi-Conductive Material

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi-Conductive Layer

Semi-Conductive Material

Screen

Copper Tape

Sheath

PVC (Polyvinyl Chloride)

Transport Package

500m Per Drum

Specification

25 - 630 sq. mm

Trademark

Hongda

Origin

China

HS Code

8544601200

Production Capacity

10 Kilometers Per Day

Product Description

CU 24kV CYABY-F 3×240 mm2 steel reinforced electrical power cable

1. Cable construction

Conductor	Class 2 stranded copper conductor according to BS EN 60228
Inner Semi-Conductive Layer	Semi-conductive material
Insulation	XLPE (Cross-Linked Polyethylene)
Outer Semi-Conductive Layer	Semi-conductive material
Screen	Copper tape
Armoured	Steel tape
Sheath	PVC (Polyvinyl Chloride)

2. Dimensions

No. of Cores	Nominal Cross Sectional Area mm²		NOMINAL OVERALL DIAMETER	Nominal Weight
No. of Cores	Conductor mm²	Copper Wire Screen mm²	mm	kg/km
3	35	RM/16	49	2600
3	50	RM/16	51	2900
3	70	RM/16	55	3350
3	95	RM/16	58	4200
3	120	RM/16	62	5050
3	150	RM/25	66	6000
3	185	RM/25	69	7200
3	240	RM/25	75	9000

3. Current Carrying Capacity

NO. OF CORES	Nominal Cross Sectional Area		Current Carrying Capacity
NO. OF CORES	Conductor mm²	Copper Wire Screen mm	In Ground Amps	In Air Amps
3	35	RM/16	213	213
3	50	RM/16	220	236
3	70	RM/16	261	265
3	95	RM/16	312	322
3	120	RM/16	355	370
3	150	RM/25	399	420
3	185	RM/25	451	481
3	240	RM/25	523	566

Contact information:

Any needs or question ,please contact us ,we will be more pleasure to service you.

We are looking forward to your inquiry and nice cooperaton.

We are China Cu 24kv Cyaby-F 3X240 mm2 Steel Reinforced Electrical Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
