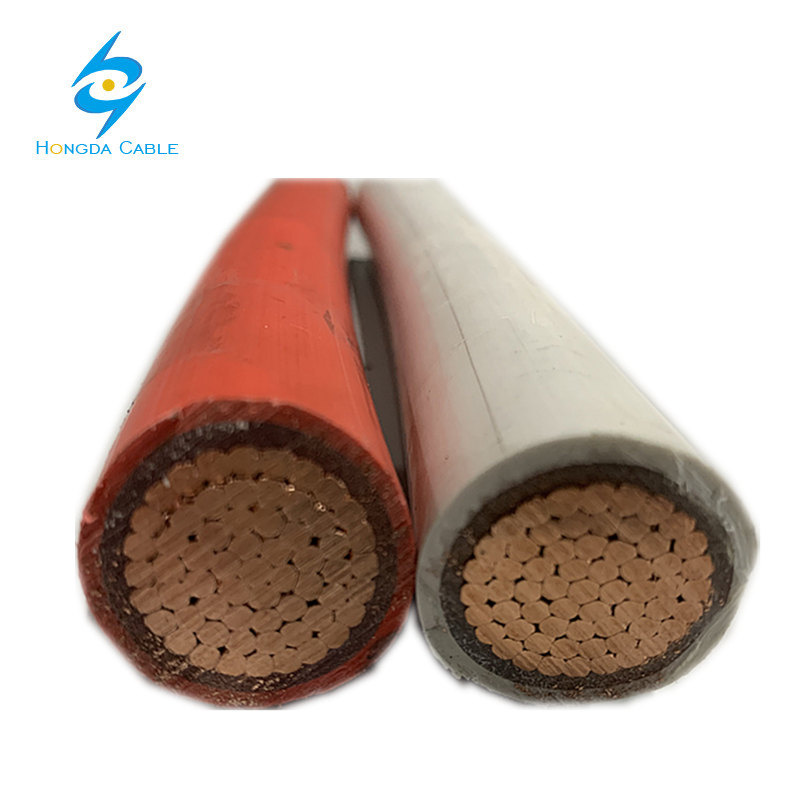

Copper Electrical Cable NYY 80C 0,6/1 kV Duplex or Triplex 2x1x10 mm2 2x1x16 mm2
Construction:
1. Conductor: Soft copper, class 1(Wire) or class2(cable).
2. Insulation: Compound polyvinyl chloride PVC.
3. Outer sheath: Compound polyvinyl chloride PVC.
4. Tape: Polyester tape.
Standard
-
INTERNATIONALIEC 60228; IEC 60332-1-2; IEC 60502-1; IEC 60811-401; IEC 60811-402; IEC 60811-501; IEC 60811-504; IEC 60811-505; IEC 60811-506; IEC 60811-508; IEC 60811-509
-
NATIONALICEA S-95-658; NTP-IEC 60228; NTP-IEC 60502-1; UL 2556
Application:
General use as power cable. In low voltage distribution networks, industrial installations, buildings and operating centers. For fixed installations, in indoor areas (trays, ducts), in underground ducts or buried direct in ground, in dry or wet locations.
Main characteristics:
Good electrical and mechanical properties. The PVC outer sheath provides an adequate resistance to grease, oils and abrasion. Less weight than conventional NYY cables with better dissipation of heat allowing a higher current capacity. Flame retardant.
Cross section:
From 6 mm2 up to 500 mm2.
Construction characteristics
| Conductor material | Soft copper |
| Insulating material | PVC |
| Sheath | PVC |
| Sheath colour | Black |
| Conductor flexibility | Class 2 IEC 60228 |
| Lead free | Yes |
