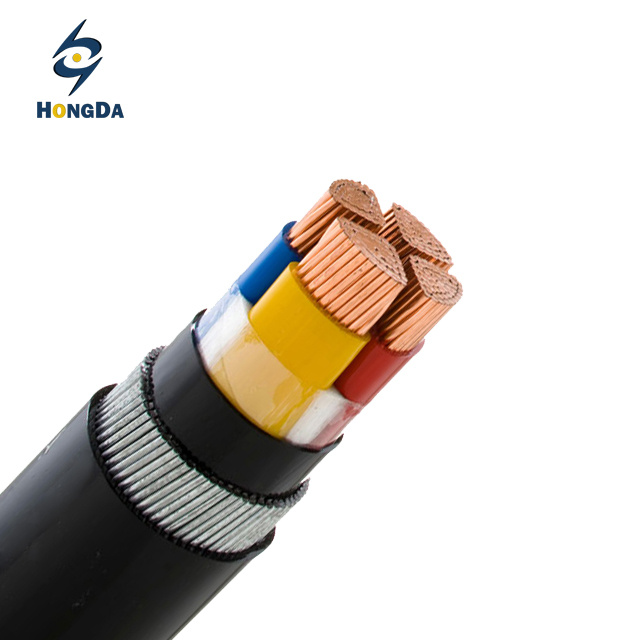

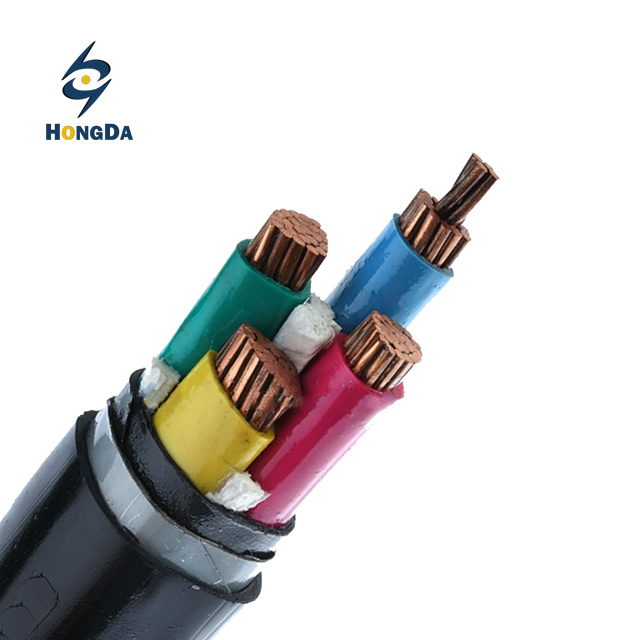

Copper Conductor 4 Core 120mm2 XLPE Insulated Armoured Power Cable

0.6/1kV XLPE Insulated Low Voltage Power Cable
1  Main Application



XLPE(Cross linked polyethylene) insulated cable functions well for electricity transmission and distribution lines for its excellent electrical and physical properties, including the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties.

2  Standards

 GB/12706-2008, IEC60502,IEC 60228,IEC60332 BS 5467,BS 6622 , IS 1554 , IS 7098and ICEA S-66-524 etc.

3  Product Properties

Suitable for power transmission and distribution lines with rated voltage 0.6/1 kV.

3.1 Rated voltages: 0.6/1 kV;

3.2 The ambient temperature for installation: ≥0ºC

3.3 Maximum conductor temperature in normal operation:≤90ºC

3.4 Max operating temperature of con. When cable short-circuited(5s maximum duration): 250ºC

4  Product Type

5   Construction

5.1  XLPE insulated Power Cables for rated voltages up to and including 0.6/1kV

Conductor shaped: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded

Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor

Insulation: XLPE (cross-linked polyethylene) rated at 90°C

Color identification

1 Core : Red or Black,  2 Cores : Red, Black,  3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black,  5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

*The above identifying can be changed as user requirement

6   The main technical parameters of cable

6.1   Max. Permissible D.C. resistance of conductor at 20ºC

7   The laying of the cable ampacity correction in different environments

7.1  Rating factors of current rating for ambient temperature:
