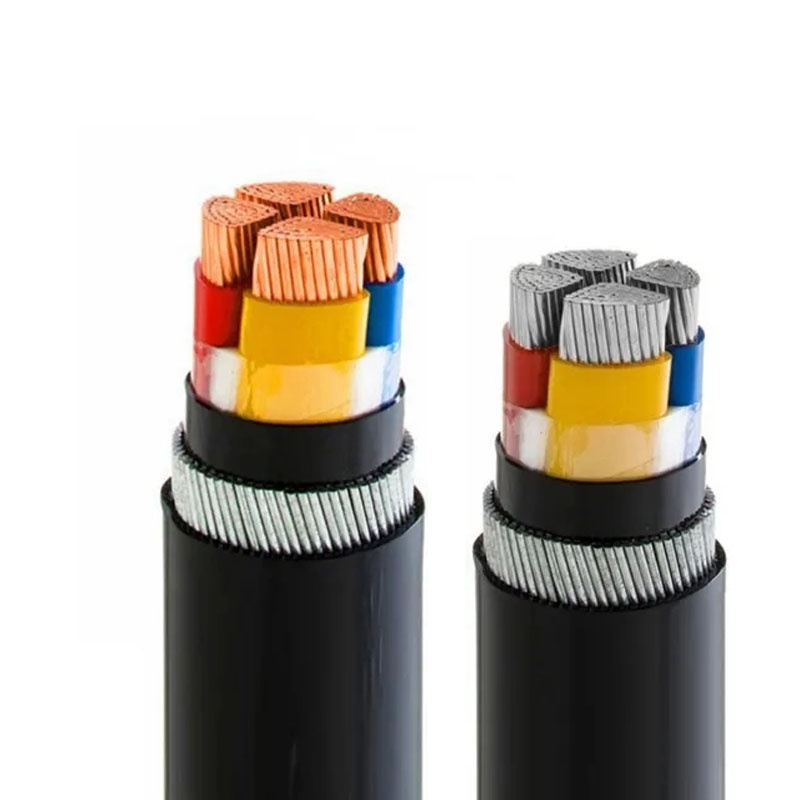

BS 6724 Standards Armour Power Cable 1core 3core 1900/3300 V Cables

BS 6724 Standards Armour Power Cable 1core 3core 1900/3300 V Cables image

Get Latest Price Request a quote

Product Details

Model NO.

BS 6724

Current

DC & AC

Insulation Material

XLPE

Sheath Material

Hffr/Losh/LSZH

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC, CE, SGS

Model

Cu/XLPE/Hffr/Swa/Hffr

Brand

Hongda

Single Core Armour

Awa (Aluminum Wire Armour)

Multi Core Armour

Swa (Steel Wire Armour)

Voltage Rating

1900/3300V, 1.9/3.3kv

Temperature Rating

0°c to +90°c

Flame Retardant

IEC60332 Part 1, BS4066 Part 1

Smoke Density

IEC 61034, En50268

Transport Package

Steel & Wooden Drum

Specification

1.5mm2 to 400mm2

Trademark

Hongda Cable

Origin

China

HS Code

8544492100

Production Capacity

500km/Month

Product Description

BS 6724 Standards Armoured Power Cables, 1900/3300V
1900/3300 V cables with stranded copper conductors

Thermosetting insulated armoured cables – 600/1000V to 1900/3300V – with low emission of smoke and corrosive gases when affected by fire. Manufactured in accordance with British Standard BS6724

1. Application

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

2. Construction

CONDUCTOR	Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460,
	IEC 60228.
INSULATION	XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
COLOUR CODE	1 Core : Brown
	2 Cores : Brown or Blue
	3 Cores: Brown, Black, Grey
	4 Cores: Blue, Brown, Black, Grey
	5 Cores: Green/Yellow, Blue, Brown, Black, Grey
	Above 5 Cores: White Cores with black numerals
BEDDING	LSOH (Low Smoke Zero Halogen)
ARMOUR	Single Core: AWA (Aluminum Wire Armour)
	Multi Core: SWA (Steel Wire Armour)
OUTER SHEATH	LSOH (Low Smoke Zero Halogen)

Technical Information

Voltage rating 1900/3300V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Halogen free IEC 60754, EN 50267
Smoke density IEC 61034, EN50268

3. Single-core 1900/3300 V cables with circular stranded copper conductor

NOMINAL CROSS-SECTIONAL AREA	STRAND TYPE	NOMINAL INSULATION THICKNESS	NOMINAL BEDDING THICKNESS	NOMINAL ALUM WIRE ARMOR DIA.	NOMINAL SHEATH THICKNESS	APPROX. OVERALL DIAMETER	APRROX WEIGHT
MM²	NO./MM	MM	MM	MM	MM	MM	KG/KM
1×50	19/1.78	2	0.8	1.25	1.6	20.6	790
1×70	19/2.14	2	0.8	1.25	1.6	22.4	1040
1×95	19/2.52	2	0.8	1.25	1.6	24.3	1330
1×120	37/2.03	2	1	1.6	1.7	27.2	1680
1×150	37/2.25	2	1	1.6	1.7	28.8	1970
1×185	37/2.52	2	1	1.6	1.8	30.8	2370
1×240	61/2.25	2	1	1.6	1.8	33.5	2960
1×300	61/2.52	2	1	1.6	1.9	36.1	3610
1×400	61/2.85	2	1.2	2	2	40.5	4600
1×500	61/3.20	2.2	1.2	2	2.1	44.2	5680
1×630	127/2.52	2.4	1.2	2	2.2	48.8	7160
1×800	127/2.85	2.6	1.4	2.5	2.4	55.4	9150
1×1000	127/3.20	2.8	1.4	2.5	2.5	60.6	11270

4. Three-core 1900/3300 V cables with stranded copper conductors

NOMINAL CROSS-SECTIONAL AREA	STRAND TYPE	NOMINAL INSULATION THICKNESS	NOMINAL BEDDING THICKNESS	NOMINAL STEEL WIRE ARMOR DIA.	NOMINAL SHEATH THICKNESS	APPROX OVERALL DIAMETER	APRROX WEIGHT
MM²	NO./MM	MM	MM	MM	MM	MM	KG/KM
3×16	7/1.70	2	1	1.6	1.8	29.3	1600
3×25	7/2.14	2	1	1.6	1.8	32.2	2060
3×35	7/2.52	2	1	1.6	1.9	34.8	2400
3×35*	7/2.52	2	1	1.6	1.9	31.1	2400
3×50*	19/1.78	2	1.2	2	2	34.7	3200
3×70*	19/2.14	2	1.2	2	2.1	38	3800
3×95*	19/2.52	2	1.2	2	2.2	41.4	4730
3×120*	37/2.03	2	1.4	2.5	2.3	45.7	6070
3×150*	37/2.25	2	1.4	2.5	2.4	48.5	7010
3×185*	37/2.52	2	1.4	2.5	2.5	51.9	8270
3×240*	61/2.25	2	1.6	2.5	2.6	56.9	10310
3×300*	61/2.52	2	1.6	2.5	2.7	61.2	12300
3×400*	61/2.85	2	1.6	2.5	2.9	66.6	14500

5. Notes

1. Due to mechanical protection provided by their armours, cables manufactured to BS6724 are suitable for applications in industrial wiring and mains distribution where there is a risk of mechanical damage and for direct burial.

2. If you are considering installing in high UV exposure and/or high/low ambient temperatures i.e. desert/arctic conditions then special sheathing may be required.

3. Whilst HONGDA CABLE plc endeavours to ensure the information on the website, specification sheets and all other technical information is accurate, the information is for guidance only and it is subject to change without notice or liability. Hongda Cable Plc is not responsible for the consequences of any inadequacies, inaccuracies or other deficiencies contained therein. When selecting cable accessories, please note that the actual cable dimensions may vary due to manufacturing tolerances.

For more information, don’t hesitate to call us or send inquiry to Vivian Yuan.

We are China BS 6724 Standards Armour Power Cable 1core 3core 1900/3300 V Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Get Latest Price Request a quote

Tags: Armoured Power Cable, Henan Hongda Cable Co., Ltd., Power Cable

BS 6724 Standards Armour Power Cable 1core 3core 1900/3300 V Cables

You May Like

Low Price Copper Instrumentation Cables Electric Wire Control Cable Signal

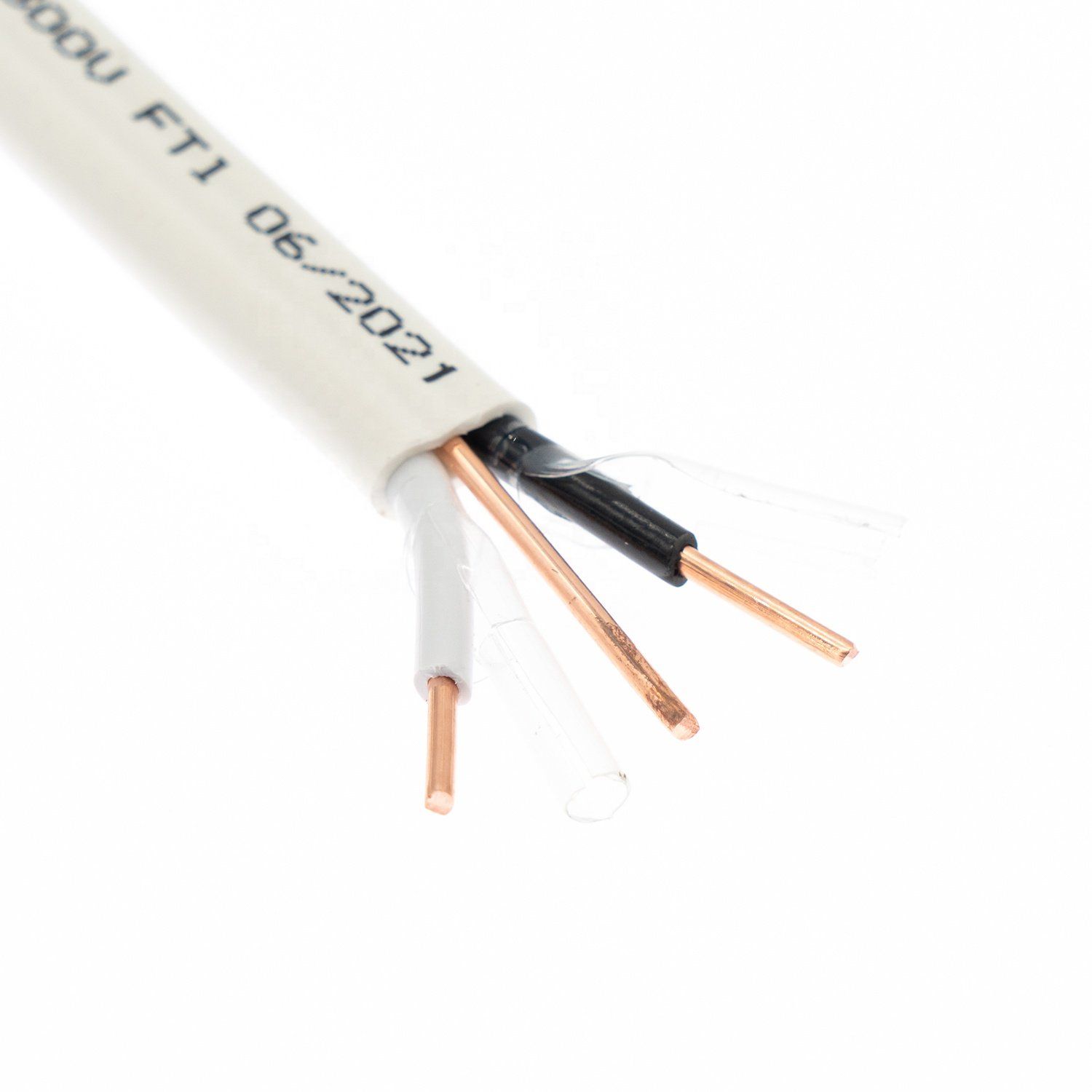

Copper Huatong Cables 12 2 Electric Wire Nmd90 Cable with ISO9001
