Product Details
Product Description

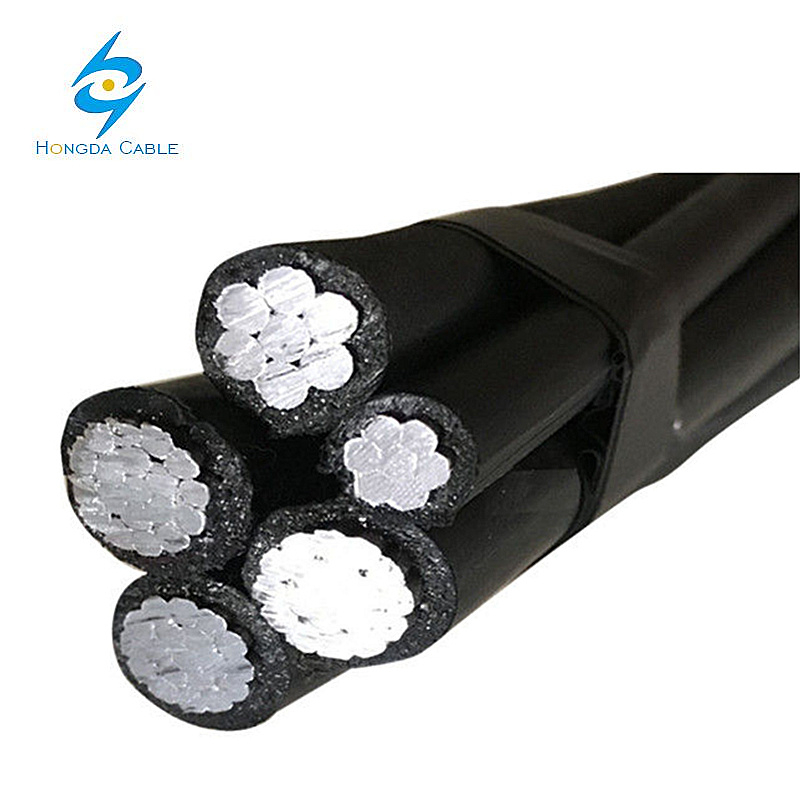

Aerial bundled cable CAAI y CAAI-S 0,6/1 kV
CABLE CAAI; CAAI-S
NOMINAL VOLTAGE: Uº / U = 0,6 / 1 kV
OPERATING TEMPERATURE: 90 º C
MANUFACTURING STANDARDS:
International : IEC 60228; IEC 60811-1-3; IEC 60811-2-1; IEC 60811-4-1
National : ASTM A 475; NTP 370.254; NTP-IEC 60228; UL 1581
APPLICATIONS:
For secondary air distribution networks of low-cost electric power in urban areas and rural.
They are installed both on posts and attached to walls, in both cases, with the appropriate accessories. Not require the use of insulators.
CONSTRUCTION:
1. Class 2 hard wired aluminum conductor.
2. Insulation with crosslinked polyethylene (XLPE) color weather resistant black, identified each phase by means of extruded ribs in the form longitudinal.
3. Meeting, around a bearing element of high tensile strength which can be aluminum alloy or galvanized steel, one, two or three conductors for phase, being able to carry one or two additional conductors for lighting public.
| TYPE | Description | Rangeof Sectional Area(mm2) |
| CAI | Copper conductor ,xlpe insulated power cable | 10-300 |
| CAI-S | Copper conductor ,xlpe insulated power cable, steel supporting | 10-300 |
| CAAI | Aluminum conductor, xlpe insulated power cable, with support cable aluminum alloy (The bracket can be nude “ND” or isolated “NA”). | 10-300 |
| CAAI-S | Aluminum conductor, xlpe insulated power cable, with support cable Galvanized steel protected with XLPE. | 10-300 |
DATA FOR ORDERS
CAAI CABLE (ND)
DIMENSIONAL AND ELECTRICAL CHARACTERISTICS
CAAI CABLE (NA)
DIMENSIONAL AND ELECTRICAL CHARACTERISTICS
CAAI-S CABLE
DIMENSIONAL AND ELECTRICAL CHARACTERISTICS
(*) Outside diameter of the conductors meeting considered for the mechanical design of the line.
(**) Voltage drop factor, for three-phase current, power factor = 0.8 and load factor 100%.
