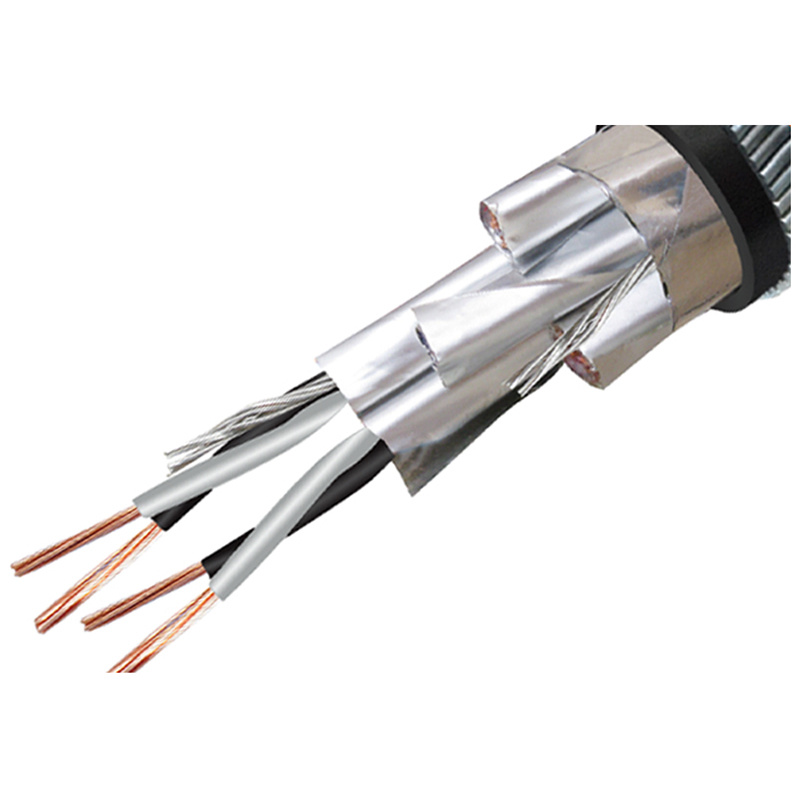

Black/Blue LSZH Instrument Wooden Drum Signal Instrumentation Cable Msr-2y (St) Y 300V 8X2X0.5 mm2
Black/Blue LSZH Instrument Wooden Drum Signal Instrumentation Cable Msr-2y (St) Y 300V 8X2X0.5 mm2
Standard 4*25mm2 XLPE Insulation Aluminum Overhead ABC Cable
Standard 4*25mm2 XLPE Insulation Aluminum Overhead ABC Cable
High Quality ISO Approved Construction 14AWG-500kcmil 12/2 Acwu90 House Wire Building Wires AC90
High Quality ISO Approved Construction 14AWG-500kcmil 12/2 Acwu90 House Wire Building Wires AC90

Product Details

Model NO.
thhn
Current
DC & AC
Insulation Material
PVC
Sheath Material
Nylon
Material Shape
Round Wire
Wire Core Material
AA-8000 Series Aluminum
Certification
ISO, CCC, SGS
Model
Thhn Thwn
Brand
Hongda Cable
Product Features
UV Sunlight Resistance and CT Use "Cable Tray"
Transport Package
100m Per Roll, 150m, or 500m
Specification
1.6mm2 to 500mm2
Trademark
Hongda
Origin
China
HS Code
8544492100
Production Capacity
50km/Day

Product Description

Aluminum THHN/THWN-2/T90 600V PVC/Nylon Insulation

Application

THHN / THWN-2 / T90 cables are primarily use for power distribution. The cables may be used in wet or dry locations, with conductor temperatures not exceeding 90ºC. Voltage rating for cable is 600V.

Specifications

Conductors – Compact soft drawn bare 8000 series aluminum, with Class B stranding.

Insulation

Low coefficient of friction (“slick”), abrasion, heat and moisture resistant polyvinyl chloride PVC.

Jacket: A clear abrasion, heat, moisture resistant and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple and green.

Technical Data of Type THHN Building Wire

Size AWG/KCM Conductor Diameter (inches) Insulation Thickness (inches) Jacket Thickness (inches) Overall Diameter (inches) Weight (Ibs/1000′) Ampacity at 90C*
6 0.169 0.03 0.005 0.239 38 55
4 0.213 0.04 0.006 0.305 62 75
2 0.268 0.04 0.006 0.36 91 100
1 0.299 0.05 0.007 0.413 117 115
1/0 0.335 0.05 0.007 0.45 141 135
2/0 0.378 0.05 0.007 0.49 172 150
3/0 0.423 0.05 0.007 0.537 210 175
4/0 0.476 0.05 0.007 0.589 257 205
250 0.520  0.06 0.008 0.658 311 230
300 0.571 0.06 0.008 0.706 365 260
350 0.614 0.06 0.008 0.752 418 280
400 0.657 0.06 0.008 0.795 471 305
500 0.736 0.06 0.008 0.872 576 350
600 0.816 0.07 0.009 0.971 700 385
700 0.877 0.07 0.009 1.035 804 425
750 0.909 0.07 0.009 1.066 856 435
900 0.999 0.09 0.009 1.139 1013 480
1000 1.059 0.09 0.009 1.218 1117 500

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!



We are looking forward to your inquiry and nice cooperation.



We are China 8000 Series Aluminum Cable 350 Kcmil Thhn for 600 Volts manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
