8 16 27 Core 2.5mm 600/1000V Production and Control Multicore Cable

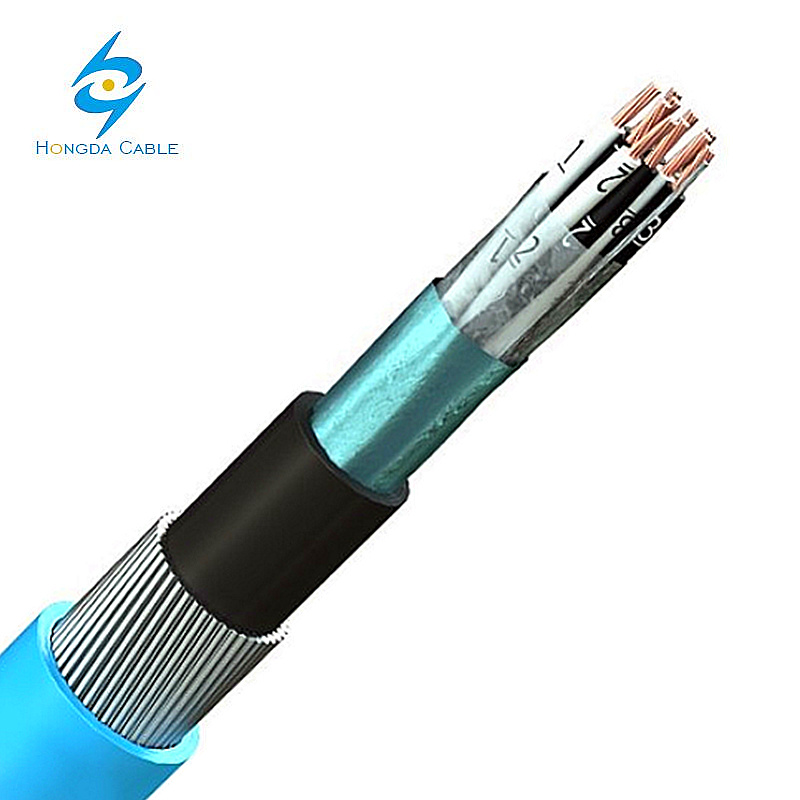

8 16 27 Core 2.5mm 600/1000V Production and Control Multicore Cable image

Get Latest Price Request a quote

Product Details

Model NO.

Production and Control Multicore Cable

Application

Heating

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

PVC

Material Shape

Round Wire

Range of Application

Flame Retardant

Certification

ISO9001, CE, CCC

Brand

Hongda

Transport Package

Export Wooden Drum

Specification

Production and Control Multicore Cable

Trademark

HONGDA

Origin

China

HS Code

8544492100

Production Capacity

5000 Meters/15 Days

Product Description

8 16 27 Core 2.5mm 600/1000V Production and Control Multicore Cable

Usage:

Armoured Cable is commonly found supplying mains voltage electricity to powered devices and networks. For example, it could be used to power outdoor buildings such as garden sheds or workshops as well as garden features such as jacuzzi/hot tubs.The cable contains a steel wire armour, meaning it provides a mechanical protection for the insulating layers underneath. This also enables the cable to have higher pulling loads, making it perfectly suitable for dispensing from a cable drum on a building site, etc. It’s construction is commonly identified by the plain annealed stranded copper for the cores, the PVC (Polyvinyl Chloride) for the bedding and sheathing, armour made from steel wire and PVC (Polyvinyl Chloride) for the insulation. The Steel Wire can also be used as a CPC (Circuit Protective Conductor), meaning the armour can be used an earth for the cable. This means that even though the cable has an earth core, it is still protected, meaning it abides by all health and safety regulations.

Standard:

MS 2103 / IEC 60502 – 1

Construction:

Conductor : Plain Annealed Copper Conductor
Insulation : PVC (Polyvinyl Chloride) PVC/A
Colour of Insulation : White with black numbering
Bedding : PVC (Polyvinyl Chloride) ST1
Armoured : Galvanised Steel Wires
Sheath : PVC (Polyvinyl Chloride) ST1
Voltage : 600/1000 Volts

Technical parameters:

Nominal Voltage : U / U 0.6 / 1kV O
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 4 x cable ø
Test Voltage : 4000V
Breakdown Voltage : Min. 8000V

Cable Parameter

Number of cores (mm2)	Nominal cross-sectional area (sq.mm)	Construction, number/wire diameter (No./mm)	Thickness of Insulation (mm)	Thickness of Bedding (mm)	Dianeter of steel wire (mm)	Thickness of Sheath (mm)	Approx.overall diameter (mm)	Approx. Net Weight (kg/km)
5	1.5	7/0.53	0.6	0.8	0.9	1.4	14	456
7	1.5	7/0.53	0.6	0.8	0.9	1.4	14.9	467
9	1.5	7/0.53	0.6	0.8	1.25	1.5	18.1	693
12	1.5	7/0.53	0.6	0.8	1.25	1.5	19.1	784
19	1.5	7/0.53	0.6	0.8	1.25	1.6	21.8	1027
27	1.5	7/0.53	0.6	1	1.6	1.7	26.4	1512
37	1.5	7/0.53	0.6	1	1.6	1.8	30.1	1848
48	1.5	7/0.53	0.6	1	1.6	1.9	34.6	2246
5	2.5	7/0.67	0.7	0.8	0.9	1.5	15.9	516
7	2.5	7/0.67	0.7	0.8	1.25	1.5	17.6	707
9	2.5	7/0.67	0.7	0.8	1.25	1.6	20.6	887
12	2.5	7/0.67	0.7	0.8	1.25	1.6	21.9	1019
19	2.5	7/0.67	0.7	1	1.6	1.7	26.2	1550
27	2.5	7/0.67	0.7	1	1.6	1.8	30.4	1994
37	2.5	7/0.67	0.7	1.2	1.6	1.9	35	2508
48	2.5	7/0.67	0.7	1.2	2	2.1	41.2	3365
5	4	7/0.85	0.8	0.8	1.25	1.5	18.5	766
7	4	7/0.85	0.8	0.8	1.25	1.6	20	915
9	4	7/0.85	0.8	1	1.6	1.7	24.6	1329
12	4	7/0.85	0.8	1	1.6	1.7	26.2	1535
19	4	7/0.85	0.8	1	1.6	1.8	30	2052

Note : Other conductor sizes & core confi gurations are available upon request.

Package & Shipping

Packing

Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:

Tianjin, Qingdao, or other ports as per your requireents.

Sea freight:
FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

Any problem and inquiry please contact with Tina
