600V Single Copper Conductor XLPE Insulation Cable Ttu 500 Mcm

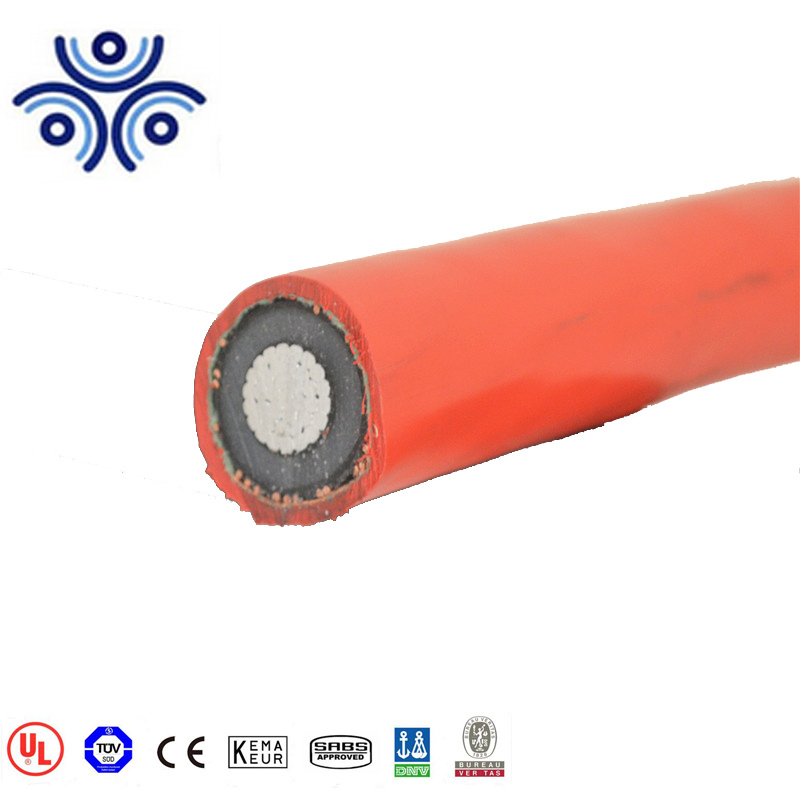

600V Single Copper Conductor XLPE Insulation Cable Ttu 500 Mcm image

Get Latest Price Request a quote

Product Details

Model NO.

cable TTU

Current

DC & AC

Insulation Material

XLPE / PE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC

Model

Cu/XLPE/PVC

Brand

Hongda

Rated Voltage

600 V

Ttu Cable Insulation

XLPE

Ttu Cable Sheath

PVC

Cable Type

Moisture Resistant, No Spread Flames

Transport Package

Export Drums

Specification

14awg to 1000mcm

Trademark

Hongda

Origin

China

HS Code

8544492100

Production Capacity

2000km/Month

Product Description

600V Single Copper conductor XLPE Insulation cable TTU 500 mcm

CABLE TTU

600 V Multiple Copper Conductor, XLPE Insulation and Outer PVC Jacket

Application

Primary power and distribution circuits in industrial, commercial and power circuit generating plants.

Detail Description or Construction

Conductor

Compressed or Compacted copper conductor class B

Insulation

Cross-linked Polyethylene (XLPE) 90° C

Jacket

Extruded black sunlight resistant, flame retardant, oils resistant PVC jacket with excellent mechanical properties

Installation

Cable TTU may be installed in wet or dry locations at maximum operating temperature of 90°C on the conductor for normal operation; 130°C for emergency and 250°C for short circuit conditions. Cables may be installed indoor and outdoor, exposed to sunlight, in raceway, conduit, duct or aerially supported by a messenger and directly buried

TABLE 1. CABLE TYPE XTU 90ºC 600 VOLTS
Conductor size	Nominal Area	Nominal Insulation Thickness	Nominal Jacket Thickness	Total OD	Total Weight	Buried Duct 20ºC Amb. Temp	Direct Buried 20ºC Amb. Temp	Free Air 40ºC Amb. Temp
AWG/MCM	mm2	mm	mm	mm	kg/km	A	A	A
14	2.08	0.76	0.38	4.4	34	26	40	–
12	3.31	0.76	0.38	4.9	47	35	58	–
10	5.26	0.76	0.38	5.6	69	47	75	–
8	8.37	1.14	0.38	6.9	107	64	92	66
6	13.3	1.14	0.76	8.5	173	85	118	89
4	21.2	1.14	0.76	9.8	255	111	153	117
2	33.6	1.14	0.76	11.2	381	146	197	158
1	42.4	1.40	1.14	14.0	518	168	223	185
1/0	53.5	1.40	1.14	15.0	633	193	255	214
2/0	67.4	1.40	1.14	16.2	777	220	289	247
3/0	85.0	1.40	1.14	17.5	955	252	329	287
4/0	107	1.40	1.14	19.0	1177	290	373	335
250	127	1.65	1.65	21.0	1405	319	408	374
350	177	1.65	1.65	23.6	1897	387	490	464
500	253	1.65	1.65	27.0	2665	471	592	580
750	380	2.03	1.65	33.5	4012	585	724	747
1000	507	2.03	1.65	37.4	5253	670	825	879
