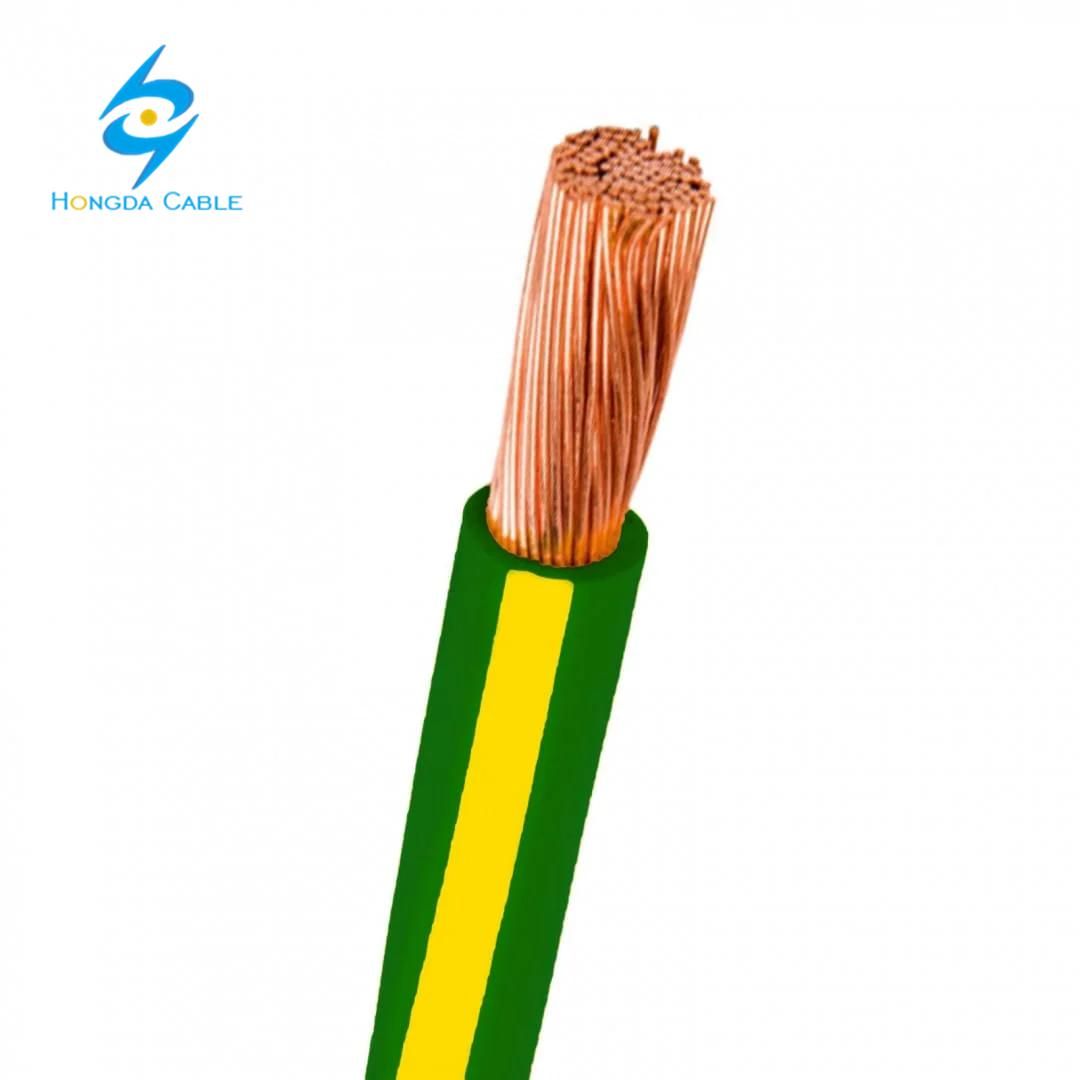

450/750V Cooper Conductor Yellow/Green Flame Retardant Xlpo Insulated Single Core 25mm Cable

450/750V Cooper Conductor Yellow/Green Flame Retardant Xlpo Insulated Single Core 25mm Cable image

Get Latest Price Request a quote

Product Details

Model NO.

CU/XLPO 25mm

Application

Earth Cable

Conductor Material

Copper

Sheath Material

No Sheath

Insulation Material

Xlpo

Material Shape

Round Wire

Range of Application

Flame Retardant

Certification

ISO9001, CE, CCC

Brand

Hongda

Rated Voltage

450/750V

Transport Package

Plastic Film & Pallets

Specification

25mm2 cable

Trademark

Hongda

Origin

China

HS Code

8544492900

Production Capacity

500km/Month

Product Description

450/750V Cooper Conductor Yellow/Green Flame Retardant Xlpo Insulated Single Core 25mm Cable

Application
Wiring for electrical appliances, smaller size electric tools, instruments, various meters, and motorized lighting system and etc.

Design Standard
IEC 60502-1, IEC60228

Construction

Permitted temperature on core
a) Long-term working temperature: 70ºC
b) Max. temperature in short circuit: 160ºC

Insulation Color
Yellow & Green

Item	DESCRIPTION	UNIT	SPECIFICATION
1	Rated voltage	V	450/750
2	Conductor:
	a) Material	–	Stranded copper (Class 2)
	b) Nominal section area	mm²	25
	c) Core shape	–	Circular
	d) Number of cores	each	1
	e) Number and diameter of individual wire	No./mm	7/2.14
	f) Diameter	mm	6.42
3	Insulation:
	a) Material	–	XLPO with LSZH (Low Smoke Halogen Free)
	b) Coloring for identification insulation	–	Yellow/Green Color
	c) Thickness	mm	1.2
4	Approx. outer diameter of cable	mm	8.8
5	Approx. weight of cable	kg/km	280
6	Permitted temperature on core:
6	a) Long-term working temperature	ºC	90
7	Max. DC. Conductor resistance at 20ºC	Ohm/km	0.727
8	Cables Marking: With one length meter, the cable is printed on surface of cable as following or as customer required	–	-Manufacturer -Year of manufacture -Type of cable -Nominal cross Section areas (mm²) -Rated voltage (V) -Length of Cable (m)

Remark on Cable
Manufacturer’s name, cable specification, Made in China, length

Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges.

FAQ

1. Q: Are you the factory or the trading company?
    A: We are the factory.
2. Q: How long is your guarantee Period?
    A: We usually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
    A: We can make the sample order. And usually you will charge for it.
    But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
    A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.
5. Q: What is your MOQ?
    A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.

Factory

Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.

Our Service

1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
