Power cable CYKY-J 3×1.5mm2 450/750V -15..70°C, black
PVC insulated and PVC sheathed power and control cable
Power cable CYKY-J Application:
For fixed installation in interior premises, cable ducts, in the open air, in water – as permitted by the local building regulations – if no risk of any mechanical damage is to be expected.
Standard length cable packing:
500 or 1000m on drums. Other forms of packing and delivery are available on request
VOLTAGE
450/750 V
| Construction: | |
| Conductors: | annealed copper solid class 1(RE) acc. to EN 60228 |
| Insulation: | special PVC compound |
| Inner covering: | non-vulcanized rubber |
| Sheath: | special PVC compound |
| Characteristic: | |
| Colour of sheath: | black, UV resistant |
| Core identification: | 2-core: 3-core: green-yellow, blue, brown 4-core: green-yellow, brown, black, grey 5-core: green-yellow, blue, brown, black, grey 7 and more: green-yellow, other cores black with white numbering |
| Maximum conductor operating temperature: | +70°C |
| Working temperature: | -15°C to + 70°C |
| Lowest installation temperature: | -5°C |
| Maximum short-circuit conductor temperature: | +160°C |
| Minimum bending radius: | 10 x D, D – overall diameter |
| Dielectric test voltage 50Hz: | 2,5kV |
Assembly:
Single conductor of stranded or solid annealed copper, PVC Insulation and PVC Jacket, several colors are available, surface printed.
Power cable CYKY-J Specification:
| Number and cross-sectional area of conductor n x mm2: |
Approximate overall diameter mm: |
Approximate net weight of cables kg/km: |
Maximum conductor resistance at temperature 20°C Ω/km: |
| CYKY-J-3×1.5 CYKY-J-3×2.5 CYKY-J-4×1.5 CYKY-J-4×2.5 CYKY-J-5×1.5 CYKY-J-5×2.5 CYKY-J-4×4 CYKY-J-5×4 CYKY-J-5×6 CYKY-J-5×10 CYKY-J-5×16 |
7,6 8,5 8,3 9,2 9,1 10,1 11,7 12,8 14,5 17,0 19,4 |
106 144 129 176 157 215 281 345 471 712 1030 |
12,1 7,41 12,1 7,41 12,1 7,41 4,61 4,61 3,08 1,83 1,15 |
Power cable CYKY-J PACKAGE:
A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z – Length to the client’s requirement.
Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10. We have a good reputation in the overseas
For more information, don’t hesitate to call us on +86-15838290725. or send email to me as follows:
We are China 3X1.5mm2 450/750V Installation Power Cable Cyky manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Flexible Cable, Henan Hongda Cable Co., Ltd., Power CableSimilar Or Related
-

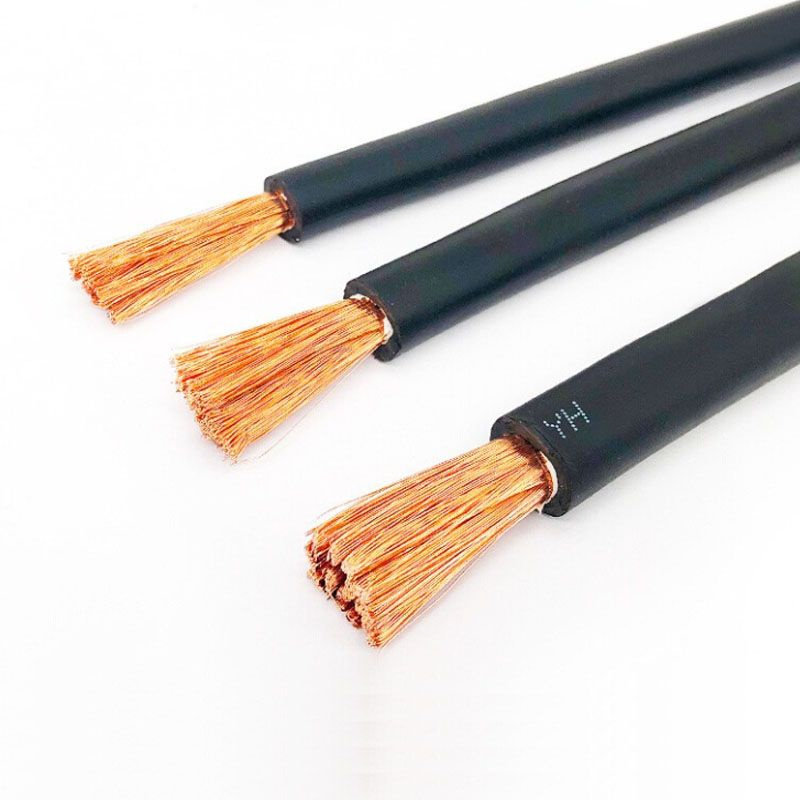

Welding Pure Copper Electrical Wire Soft Rubber Power Cable Origin Factory Low MOQ Customized Cable
-
H01n2-D 100 VAC 150 DC Rubber Insulated Flexible 16mm2 Welding Cable
-

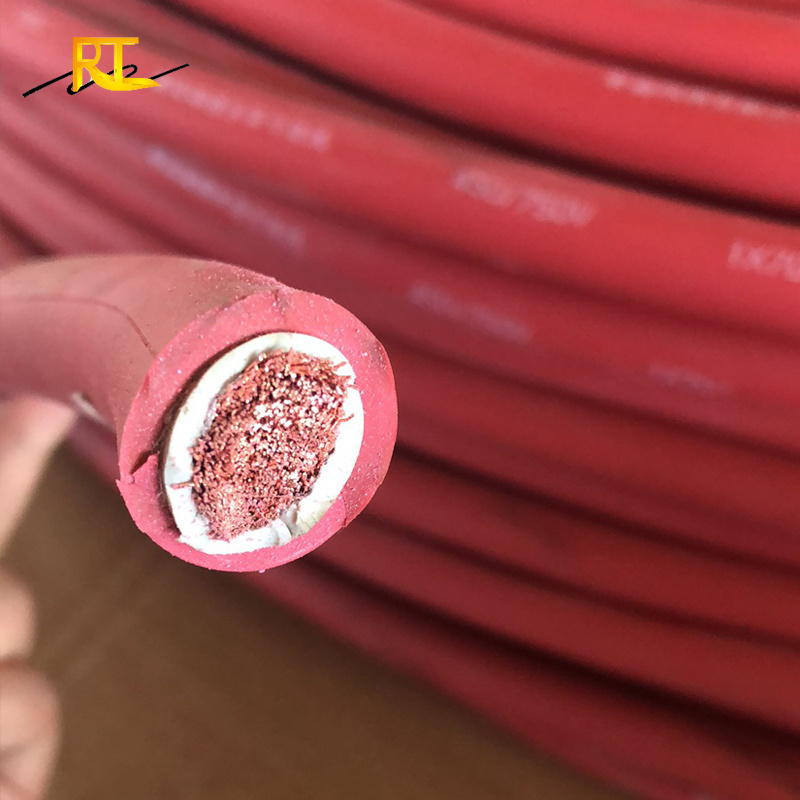

Premium Quality Double Insulated Welding Wire with Low Price
-
Ruitian H07bn4-F 450/750V Wind 90 Cable with Free Sample
-

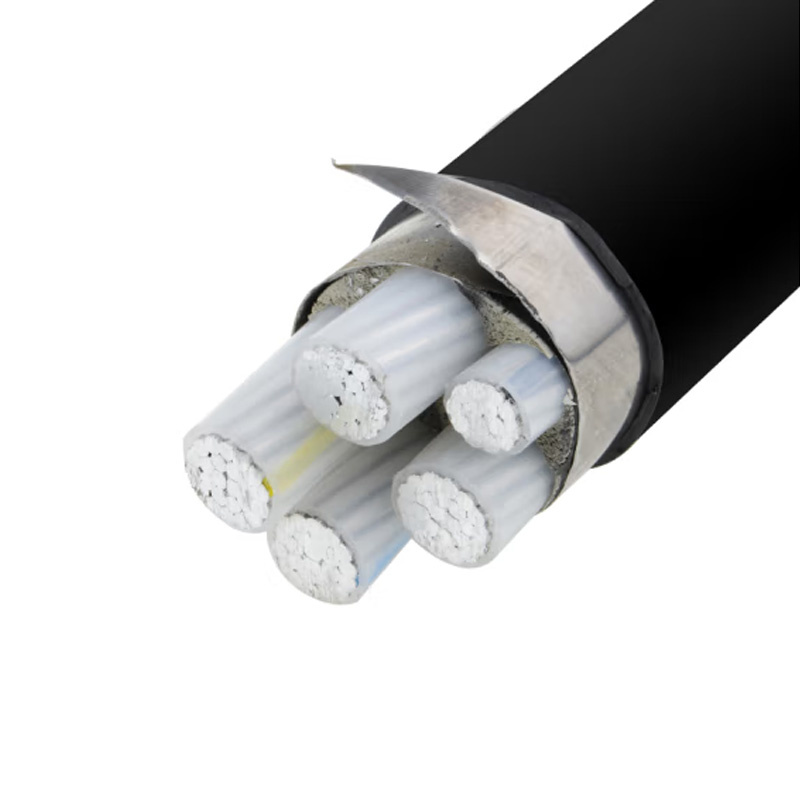

16mm 4 Core XLPE Insulated Aluminum Armoured Cables Price
