2X4mm2 Photovoltaic Cables Solar Panels Cable for Photovoltaic Project

2X4mm2 Photovoltaic Cables Solar Panels Cable for Photovoltaic Project image

Get Latest Price Request a quote

Product Details

Model NO.

2x4mm2 PV1-F flat cable

Application

Solar System

Conductor Material

Tinned Cooper Wire

Sheath Material

Xlpo

Insulation Material

Xlpo

Material Shape

Round Wire

Range of Application

Construction

Certification

ISO9001, CE, CCC, RoHS, VDE

Brand

Hongda

Standard

IEC

Insulation

Xlpo

Conductor

Tinned Copper Wire

Usage

Solar System

Core

One or Two Cores

Colour

Red or Black

Cross Section

1.5mm2-240mm2

Transport Package

Wooden Box

Specification

Solar cable 2.5mm2 4mm2 6mm2 10mm2

Trademark

HONGDA CABLE

Origin

Henan China

HS Code

8544492100

Production Capacity

500000meter/Week

Product Description

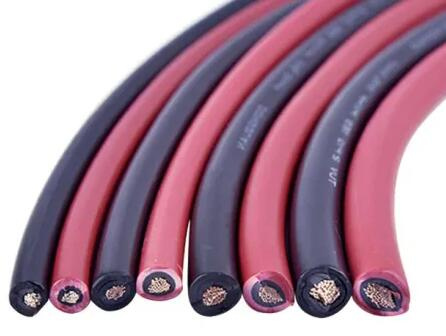

Solar Cable 2.5mm2 4mm2 6mm2 10mm2 Single Core Xlpo Insulation PV1-F DC Solar Panel PV Cable

Solar panels cable for Photovoltaic Project (IEC Standard )

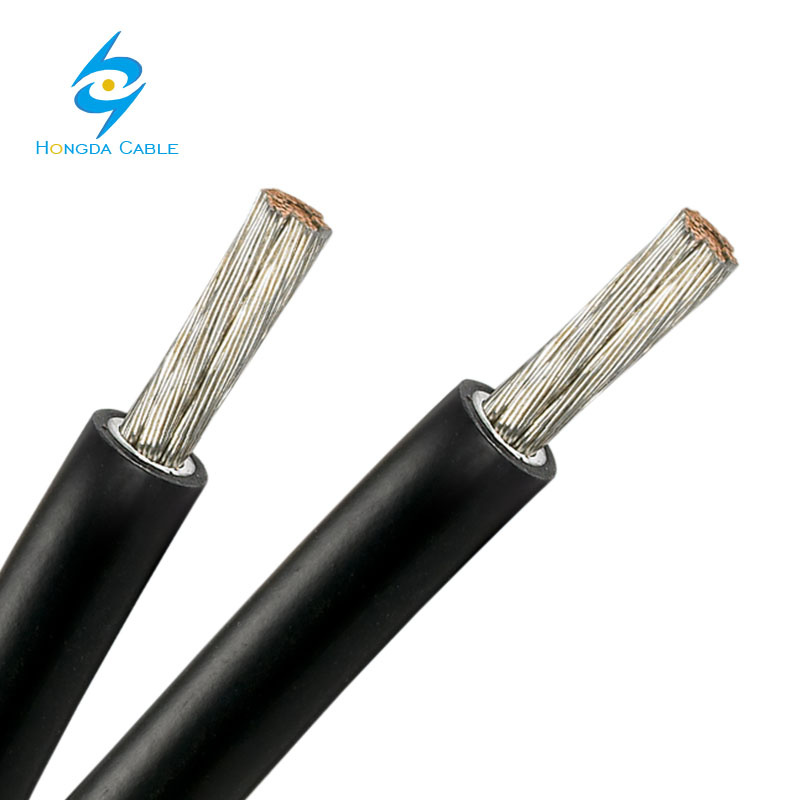

Single Core Photovoltaic Cables
Type	Sectional area mm²	Conductor			Insulation		Jacket		Weight kg/km
Type	Sectional area mm²	No./Dia		Outer dia	Thickness	Dia	Thickness	Dia	Weight kg/km
PV1-F	1.5	30/0.25		1.60	0.75	3.10	0.80	4.70	37.4
PV1-F	2.5	49/0.25		2.10	0.75	3.60	0.80	5.20	49.5
PV1-F	4	52/0.3		2.60	0.75	4.10	0.80	5.70	64.6
PV1-F	6	78/0.3		3.20	0.75	4.70	0.80	6.30	85.6
PV1-F	10	84/0.4		4.70	0.75	6.20	0.80	7.80	142.1
PV1-F	16	126/0.4		5.80	0.75	7.30	0.80	8.90	197.7
PV1-F	25	196/0.4		7.60	0.75	9.10	0.80	10.70	290.1
PV1-F	35	276/0.4		9.10	1.20	11.50	1.40	14.30	455.9
PV1-F	50	396/0.4		11.30	1.40	14.10	1.40	16.90	633.6
PV1-F	70	360/0.5		12.80	1.40	15.60	1.40	18.40	841.0
PV1-F	95	475/0.5		15.00	1.60	18.20	1.60	21.40	1111.2
PV1-F	120	608/0.5		14.00	1.60	17.20	1.60	20.40	1330.0
PV1-F	150	756/0.5		19.00	1.80	22.60	1.80	26.20	1713.4
PV1-F	185	925/0.5		21.00	2.00	25.00	2.00	29.00	2097.2
PV1-F	240	1221/0.5		23.80	2.20	28.20	2.20	32.60	2729.6

Type AWG	Sectional area mm²	Conductor			Insulation		Jacket		Weight kg/km
Type AWG	Sectional area mm²	No./Dia		Outer dia	Thickness	Dia	Thickness	Dia	Weight kg/km
4	21.15	420	0.254	6.8	0.75	8.3	0.8	9.9	254.08
6	13.3	266	0.254	5.4	0.75	6.9	0.8	8.5	173.60
8	8.367	168	0.254	4.3	0.75	5.8	0.8	7.4	120.81
10	5.261	105	0.254	3.4	0.75	4.9	0.8	6.5	85.42
12	3.31	48	0.3	2.4	0.75	3.9	0.8	5.5	60.60
14	2.08	41	0.254	1.9	0.75	3.4	0.8	5	45.04

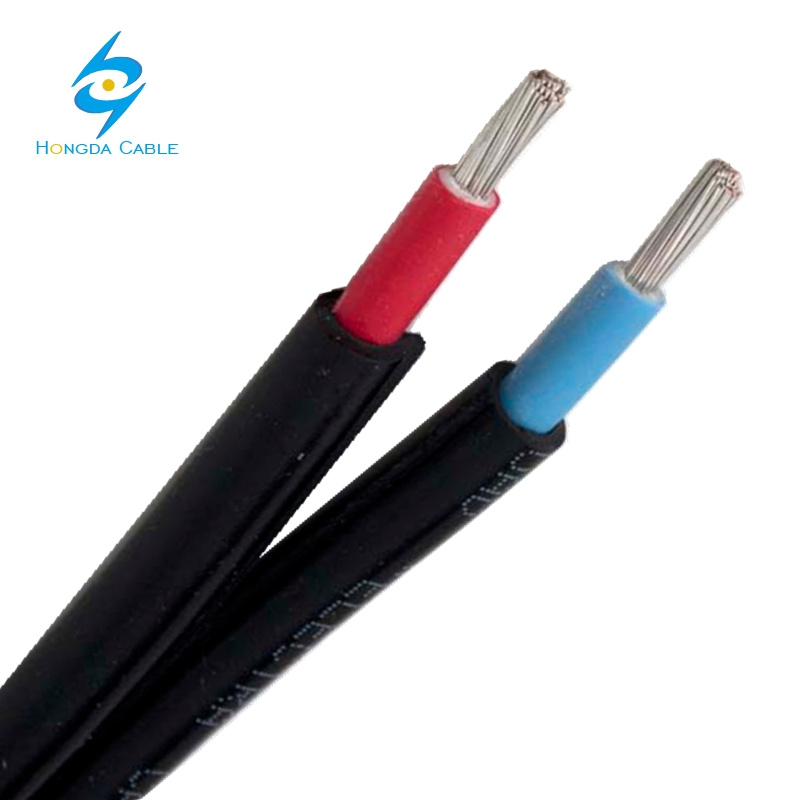

Two Cores Photovoltaic Cables
Type	Sectional area mm²	Conductor			Insulation		Jacket		Weight kg/km
Type	Sectional area mm²	No./Dia		Outer dia	Thickness	Dia	Thickness	Dia	Weight kg/km
PV1-F/Round	2*1.5	30/0.25		1.60	0.75	3.10	1.00	8.20	98.6
PV1-F/Round	2*2.5	49/0.25		2.10	0.75	3.60	1.00	9.20	131.2
PV1-F/Round	2*4	52/0.3		2.60	0.75	4.10	1.00	10.20	171.0
PV1-F/Round	2*6	78/0.3		3.20	0.75	4.70	1.00	11.40	225.8
PV1-F/Flat	2*1.5	30/0.25		1.60	0.75	3.10	0.80	4.7*9.5	76.2
PV1-F/Flat	2*2.5	49/0.25		2.10	0.75	3.60	0.80	5.2*10.5	100.4
PV1-F/Flat	2*4	52/0.3		2.60	0.75	4.10	0.80	5.7*11.5	130.7
PV1-F/Flat	2*6	78/0.3		3.20	0.75	4.70	0.80	6.3*12.7	172.7

CONTACT US FOR MORE :

Henan Hongda Cable Co., Ltd

Add.: No.3 Changping Road, ZhanDian District, Wuzhi City, Henan Province, China

We are China 2X4mm2 Photovoltaic Cables Solar Panels Cable for Photovoltaic Project manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
