2 Core 3 Core 4 Core 5 Core Flexible Rubber H05rn-F Cable

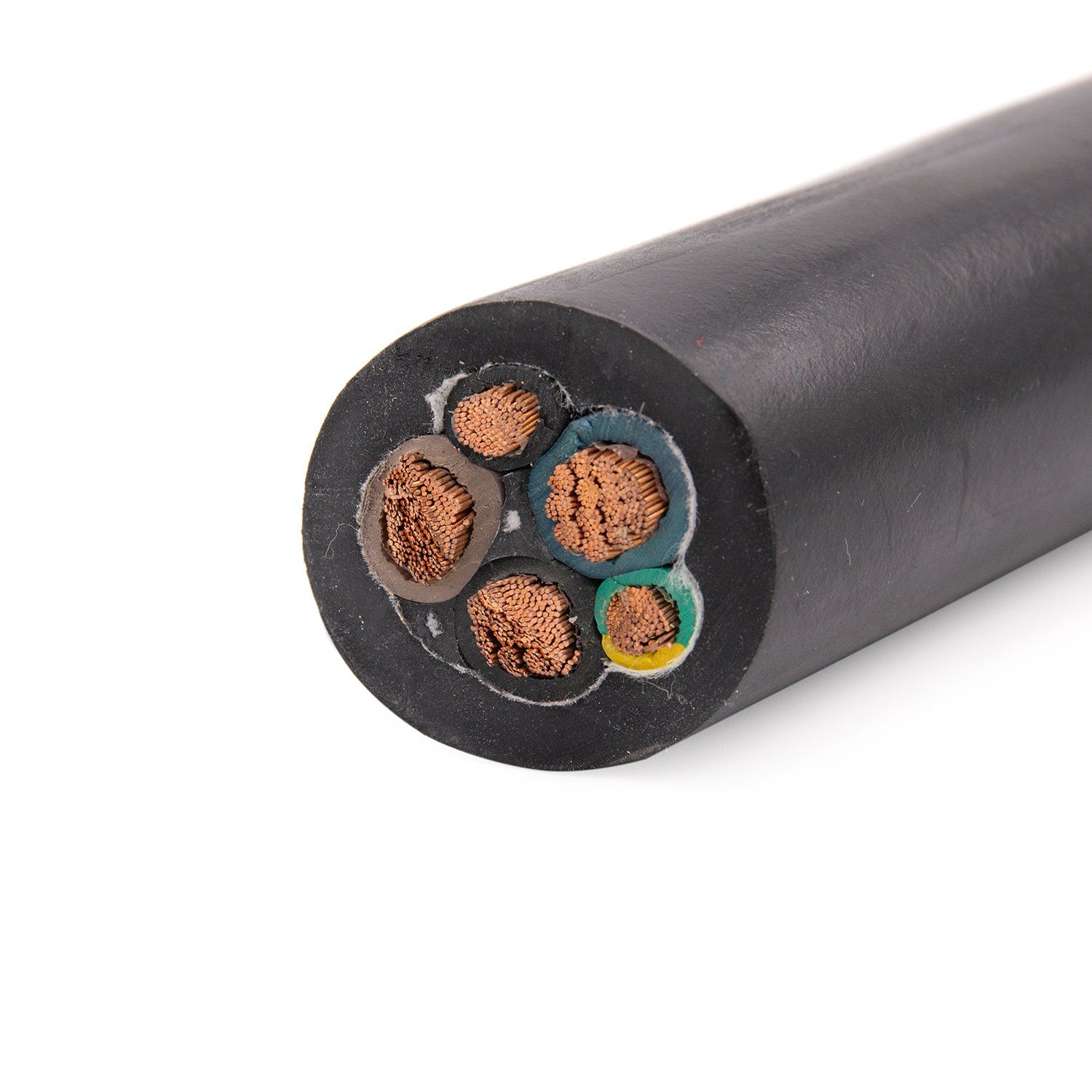

2 Core 3 Core 4 Core 5 Core Flexible Rubber H05rn-F Cable image

Get Latest Price Request a quote

Product Details

Model NO.

h05rn-f cable

Current

DC & AC

Insulation Material

Rubber

Sheath Material

Rubberpcp (Polychloroprene)

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC, SGS

Model

H05rn-F

Brand

Hongda

Colour Required

Black, Red, Blue, Yellow, Green/Yellow, White, etc

Rated Voltage

300/500V

Packaging

Iron or Wooden Drum

Temperature Rating

-25°c to +60°c

Transport Package

100m Per Roll/Reel, or Customer Requirement

Specification

1.5sqm to 120sqmm

Trademark

Hongda, accept OEM

Origin

China

HS Code

8544492100

Production Capacity

40km/Day

Product Description

2 Core 3 Core 4 Core 5 Core Flexible Rubber H05RN-F Cable

H05RN-F harmonised flexible rubber heavy duty trailing cable

Conductors: Plain annealed flexible copper
Insulation: EPR (Ethylene propylene rubber)
Core identification: single core: black, 2 core: Blue & brown, 3 core: Blue, brown & green/yellow, 4 core: Black, brown, grey & green/yellow, 5 core: Black, blue, brown, grey & green/yellow, 7 cores and above are numbered
Sheath/Jacket: PCP (Polychloroprene) more commonly refered to as OFR (Oil resistant & flame retardent)
Colour: Black
Voltage: 300/500v

Operating temperature: Maximum 60°C, minimum bending -30°C

Standards: BS6500: electrical cables for use with appliances and equipment intended for domestic, office and similar environments
BS7919: Electric cables. Flexible cables rated up to 450/750V for use with appliances and equipment intended for industrial and similar environments

Ref: H07RN-F

Applications: heavy duty trailing rubber flexible cable used to power electrical appliances and building sites. Resistant sheath means it can be used in refrigerating installations

Whilst HONGDA CABLE plc endeavours to ensure the information on the website, specification sheets and all other technical information is accurate, the information is for guidance only and it is subject to change without notice or liability. HONGDA Cable Plc is not responsible for the consequences of any inadequacies, inaccuracies or other deficiencies contained therein. When selecting cable accessories, please note that the actual cable dimensions may vary due to manufacturing tolerances.

Cable Parameter

No. of cores	Conductor size mm	RT of insulation mm	Nom diameter over laid up cores mm	Diameter overall mm	Weight kg/km
1	4	1.0	4.7	7.8	115
1	6	1.0	5.7	9.0	142
1	10	1.2	7.1	10.8	219
1	16	1.2	8.2	12.1	265
1	25	1.4	10.0	14.1	381
1	35	1.4	11.4	15.9	496
1	50	1.6	13.6	18.5	684
1	70	1.6	15.7	21.0	921
1	95	1.8	18.2	23.9	1184
1	120	1.8	19.7	25.8	1468
1	150	2.0	22.1	28.6	1814
1	185	2.2	24.5	31.5	2170
1	240	2.4	27.9	35.1	2771
1	300	2.6	31.2	38.7	3363
1	400	2.8	35.7	43.5	4505
1	500	3.0	39.6	47.8	5551
1	630	3.0	43.1	51.5	7650
2	1.0	0.8	5.9	8.6	91
2	1.5	0.8	6.5	9.6	112
2	2.5	0.9	7.7	11.2	163
2	4	1.0	9.5	13.2	223
2	6	1.0	11.5	15.6	292
2	10	1.2	14.3	20.6	527
2	16	1.2	16.5	23.3	703
2	25	1.4	20.1	27.4	1400
3	1.0	0.8	6.4	9.3	109
3	1.5	0.8	7.0	10.3	140
3	2.5	0.9	8.3	12.0	199
3	4	1.0	10.2	14.1	273
3	6	1.0	12.3	16.6	361
3	10	1.2	15.4	22.1	656
3	16	1.2	17.7	24.8	903
3	25	1.4	21.6	29.3	1318
3	35	1.4	24.6	32.9	1745
3	50	1.6	29.4	38.5	2404
3	70	1.6	33.9	43.6	3208
3	95	1.8	39.3	50.0	4166
3	120	1.8	425.0	53.9	6700
3	150	2.0	47.7	59.9	8000
3	185	2.2	52.9	65.9	9700
3	240	2.4	60.3	74.7	12400
3	300	2.6	67.6	83.2	15300
4	1.0	0.8	7.2	10.3	139
4	1.5	0.8	7.8	11.4	173
4	2.5	0.9	9.3	13.2	246
4	4	1.0	11.4	15.5	339
4	6	1.0	13.8	18.5	452
4	10	1.2	17.2	24.1	814
4	16	1.2	19.8	27.1	1138
4	25	1.4	24.2	32.5	1684
4	35	1.4	27.6	36.5	2191
4	50	1.6	32.9	42.6	3033
4	70	1.6	38.0	48.6	4095
4	95	1.8	44.0	54.6	5315
4	120	1.8	47.7	59.9	6519
4	150	2.0	53.6	66.8	8108
4	185	2.2	59.3	73.5	9772
4	240	2.4	67.6	83.2	12557
4	300	2.6	75.8	92.8	19600
5	1.5	0.8	8.8	12.5	214
5	2.5	0.9	10.4	14.5	310
5	4	1.0	12.7	17.2	424
5	6	1.0	15.4	20.5	581
5	10	1.2	19.2	26.5	1002
5	16	1.2	22.2	30.1	1408
5	25	1.4	27.1	36.1	2091
5	35	1.4	30.9	40.5	2629
5	50	1.6	36.9	47.3	3665
5	70	1.6	–	–	4933
5	95	1.8	–	–	6264
7	1.5	0.8	–	–	216
7	2.5	0.9	12.9	18.9	305
7	4	1.0	15.8	21.6	618
7	6	1.0	19.1	25.7	1090
7	10	1.2	23.8	31.6	1710
7	16	1.2	27.5	35.7	2330
7	25	1.4	33.6	43.2	3560
8	1.5	0.8	11.9	17.7	385
8	2.5	0.9	14.1	20.3	560
8	4.0	1.0	17.3	23.5	900
12	1.5	0.8	13.5	19.5	485
12	2.5	0.9	16.0	22.5	689
12	4.0	1.0	19.6	26.2	1180
