1.9/3.3kv 3 Core Swa PVC XLPE Insulated Medium Voltage Power Cable

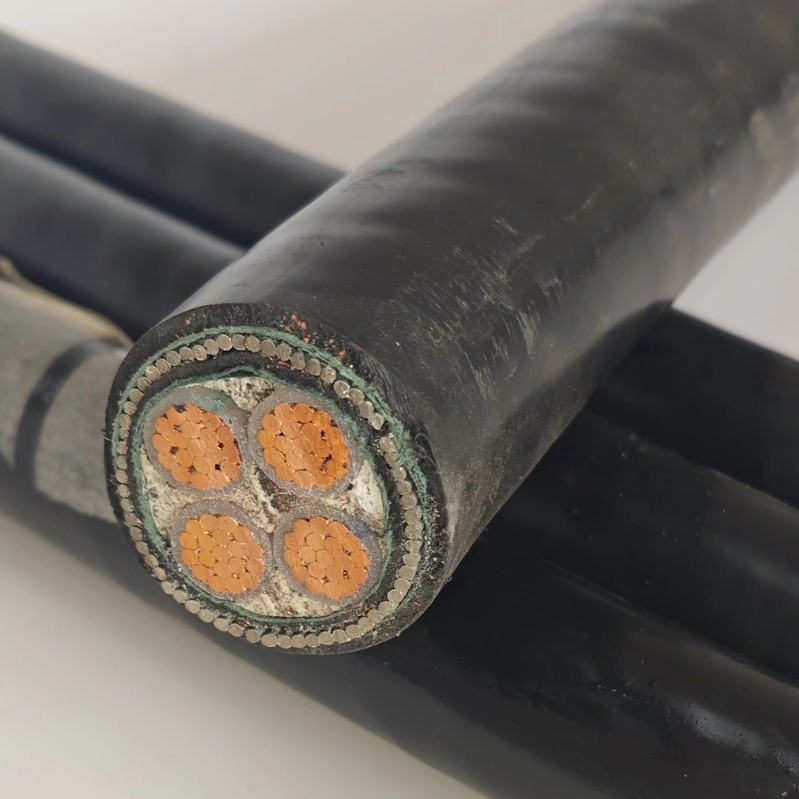

1.9/3.3kv 3 Core Swa PVC XLPE Insulated Medium Voltage Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

3.3kV medium voltage power cable

Current

AC Cable

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC, SGS

Model

YJV

Brand

Hongda Cable

Inner Semi-Conductive Layer

Semi-Conductive Material

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi-Conductive Layer

Semi-Conductive Material

Screen

Copper Wires

Sheath

PVC (Polyvinyl Chloride)

Transport Package

500m Per Drum

Specification

1.5 - 630 sq. mm

Trademark

Hongda

Origin

China

HS Code

8544601200

Production Capacity

15 Kilometers Per Day

Product Description

3.3 kV 3 core SWA PVC cable max. 90° C – XLPE insulated, PVC sheathed, medium voltage power cable

3.3 kV 3 core SWA PVC cable max. 90° C – XLPE insulated, PVC sheathed, medium voltage power cable – Applications

This medium voltage power cable may be used for power networks, in fixed installation outdoors, in cable ducts, or directly in the ground.
The steel wire armoured cable is the accepted standard for underground installations, designed for use in mains supply electricity.
These cables are provided with mechanical protection and are therefore suitable for external use, direct burial and areas where sudden mechanical stress are expected.

1. Construction Characteristics
Conductor material:	Copper – IEC60228
Conductor shape:	16mm² & 25mm² – Circular
	35mm² – Sector-shaped or Circular
	50mm² up to 400mm² – Sector-shaped
Conductor flexibility:	Stranded class 2
Insulation:	XLPE (Cross-linked Polyethylene) – IEC60502
Inner sheath:	PVC – IEC60502
Armour type:	Galvanized steel wires
Outer sheath:	PVC – IEC60502
Colour:	Black
Lead free:	Yes

2. Electrical Characteristics
Rated Voltage Uo/U (Um):	1900/3300 Volts – BS5467 IEC60502-1
Usage Characteristics
Minimum installation temperature:	0°C
Maximum installation temperature:	+60°C
Installation type:	Outdoor – Direct burial
Minimum operating temperature:	-15°C
Maximum operating temperature:	90°C
Short-circuit max. conductor temperature:	250°C
Flame retardant:	BS EN 60332 / IEC 60332-1
Bending radius:	8 x Overall diameter

3 Core: Brown, Black & Grey

Part Number	Cross Section	Stranding	Approx Weight	Approx Overall Diameter	Gland Size	Single Cleat	Nom. Max. DC-resist conductor 20â° C	Current Rating Direct in ground
Part Number	(mm²)	(mm)	KG/KM	(mm)	(mm)		(Ohm/km)	(Amp)

3.3SWAPVC3X16	3 x 16	7/1.70	1690	29.2	32	1.2	1.15	75
3.3SWAPVC3X25	3 x 25	7/2.14	2170	32.3	32	1.4	0.727	96
3.3SWAPVC3X35	3 x 35	7/2.52	2550	35.0	40	1.4	0.524	115
3.3SWAPVC3X50	3 x 50	19/1.78	3130	34.8	40	1.4	0.387	135
3.3SWAPVC3X70	3 x 70	19/2.14	3910	38.0	40	1.6	0.268	167
3.3SWAPVC3X95	3 x 95	19/2.52	4845	41.4	50s	1.8	0.193	197
3.3SWAPVC3X120	3 x 120	37/2.03	6185	45.64	50s	1.8	0.153	223
3.3SWAPVC3X150	3 x 150	37/2.25	7195	48.4	50	2.0	0.124	251
3.3SWAPVC3X185	3 x 185	37/2.52	8455	51.75	50	TC9	0.0991	281
3.3SWAPVC3X240	3 x 240	61/2.25	10485	56.7	63s	TC9	0.0754	324
3.3SWAPVC3X300	3 x 300	61/2.52	12485	60.95	63	TC10	0.0601	365
3.3SWAPVC3X400	3 x 400	61/2.85	15370	66.2	75s	TC11	0.0470	–

4. Conditions of installation:

Ambient air temperature: 30 °C

Ground temperature: 20 °C

Maximum conductor temperature: 90 °C

Where a conductor operates at a temperature exceeding 70 °C it must be ascertained that the equipment connected to the conductor is suitable for the conductor operating temperature (see Regulation 512.1.2).

Where cables in the above table are connected to the equipment or accessories designed to operate at a temperature not exceeding 70 °C, the current rating given in the equivalent table for 70 °C thermoplastic insulated cables (Table 4D4A) must be used (also see Regulation 523.1).
