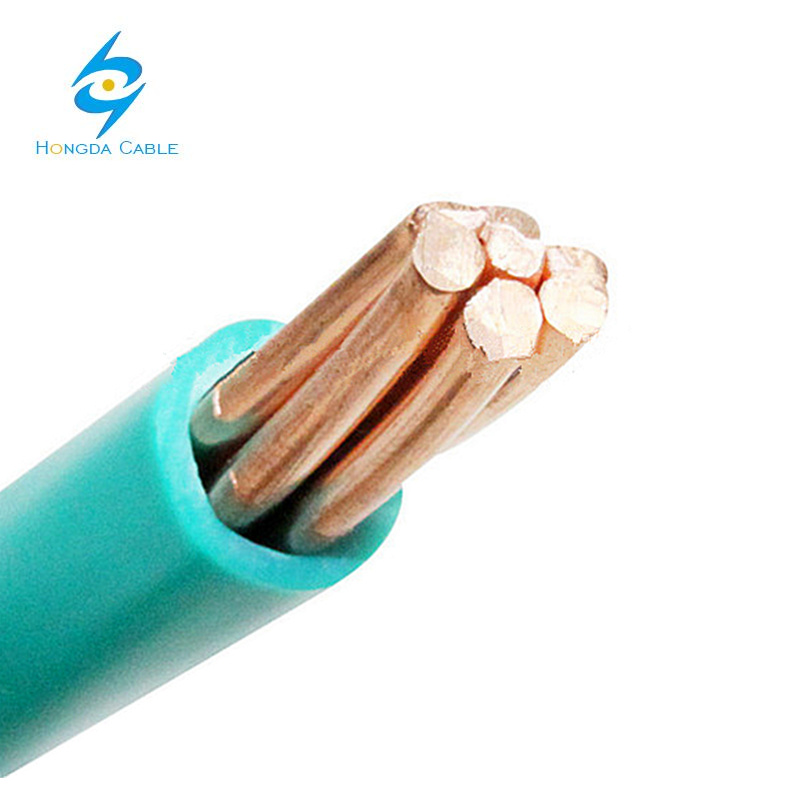

1.6mm 2.5mm Stranded Copper Fire Resistant Earth Flat Wire Cable

1.6mm 2.5mm stranded copper fire resistant earth flat wire cable


Chinese Designation: BVVB

International Designation: H05VVH2-U, H07VVH2-R, H05VVH2-F, H05VVH4-U, H07VVH4-R, H05VVH4-F, BS6004

Voltage Rate: 300/500; 450/750V

Range of Nominal Cross Section: 0.75 Sq mm ~ 16 Sq mm

Core: 2C, 3C, 2C+E, 3C+E

Application: The cables are used for general purpose, as building wire for power, lighting and control wire for electrical appliance, suitable for use in conduit and for fixed protected installation.

Standard: IEC60227

Constructions:

Conductor – Class1/2 plain annealed copper wires, solid or stranded.

Insulation – PVC

Color – Brown, Grey or others on request.

Max. Working Temperature: 70 ºC; 90ºC and 110ºC as

per requirement.

Packing: 100 Meter/Roll or as per requirement.

Specifications

1.Certificate: SGS,ISO,CCC

2.Standard: IEC60227

3.High quality

Applications:

The product is fit for ac rated voltage 450/750 and below of domestic electrical applicances of smaller size motoriace tools of instruments of varous meters and motorized lighting installations.

This prduct is suitable to be used in household appliances ,electric tools and lighting in home , office and similar indoor place where request flexible wire



Technological property:

1)If finished insulation core and finished power line is pot into warm water20+/-5 °c for an hour, they will be able to bear stipulated as soaked, soaked voltage test as stated in table.

2)Wire has excellent electric insulation property, mechanical property, non-inflammability. So it is safety and convenience in using the producters name. The model and the voltage should be cleany printed on the surface of the finished power line of insulation and sheath delivery requirements.
