0.6/1kv 3 4 5 Core 16mm 25mm 35mm 70mm 95mm Aluminum Conductor XLPE PVC Underground Industrial Electrical Power Cable

0.6/1kv 3 4 5 Core 16mm 25mm 35mm 70mm 95mm Aluminum Conductor XLPE PVC Underground Industrial Electrical Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

aluminum cable

Current

AC Cable

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Aluminum

Certification

ISO, CCC

Model

Axmk

Brand

OEM

Cable Type

Axmk

Transport Package

Wooden Drum

Specification

35mm 95mm 120mm 150mm 185mm 240mm

Trademark

OEM

Origin

China(Mainland)

HS Code

8544492100

Production Capacity

50 Kilometer/Month

Product Description

Cable Application

The cable 1kV is a power distribution cable suitable for indoor power stations, industrial installations and switchgears, as well as in local mains. For fixed installation underground, in interior premises, cable ducts, in the open air, in water- if no risk of any mechanical damage is to be expected.

Cable Standard

IEC 60502-1

Cable Construction

Conductors: : Al, class 1 or class 2 according to EN 60228, annealed

Insulation: XLPE compound

Bedding: Extruded elastomere or plastomere

compound or plastic tape

Sheath: PVC compound, UV resistant, black or by customer request

Cable Technical Characteristics

Voltage Rating Uo/U :0.6/1kV

Test Voltage:4kV/50Hz

Temperature Rating

Minimum Laying temperature: -15ºC

Operating temperature: -30ºC to +90ºC

Conductor temperature: +90ºC

Short Circuit Temperature:250°C

Minimum Bending Radius

10 x overall diameter

CONSTRUCTION CHARACTERISTICS

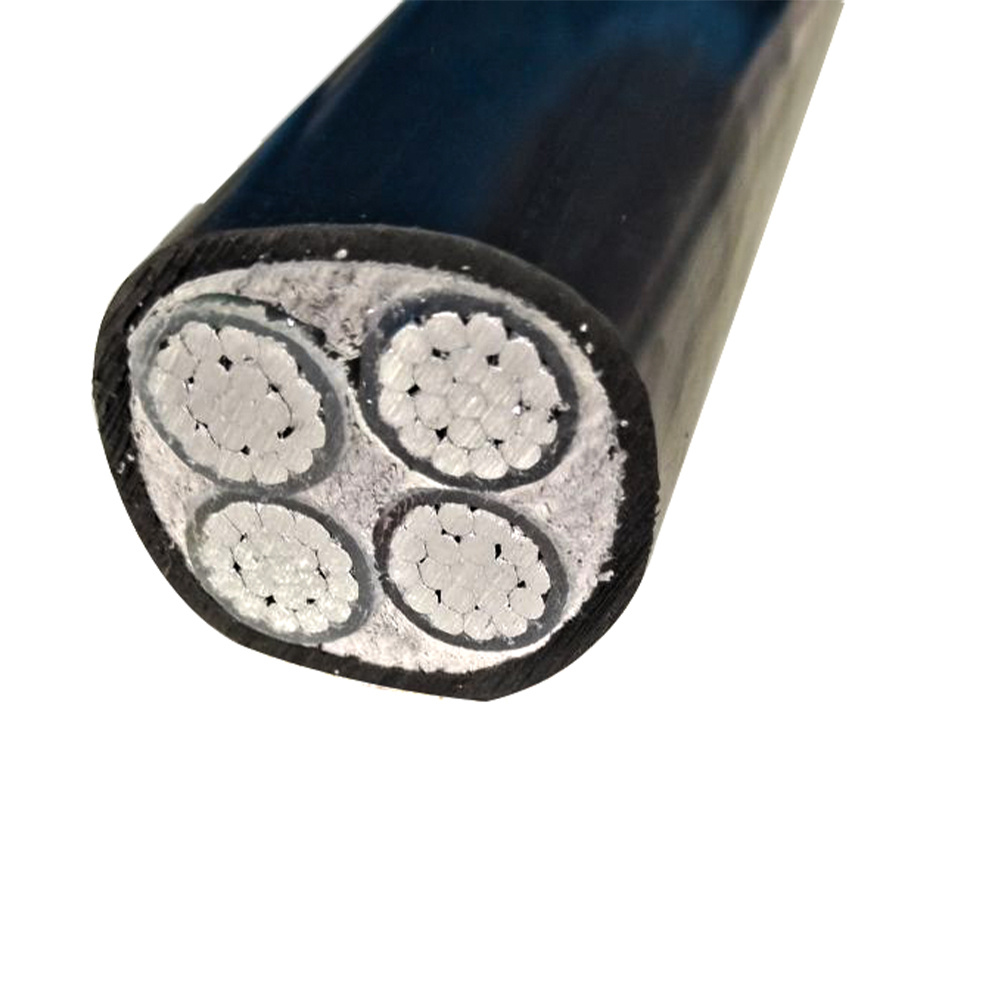

0.6/1kV-4 core aluminum conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor(20ºC)	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X10	0.7	1.8	18.6	300	3.08	50	66
4X16	0.7	1.8	21.0	400	1.91	65	85
4X25	0.9	1.8	24.9	570	1.20	87	110
4X35	0.9	1.8	28.3	710	0.868	105	130
4X50	1.0	1.8	28.4	850	0.641	130	160
4X70	1.1	2.0	33.1	1160	0.443	165	195
4X95	1.1	2.1	37.1	1520	0.320	205	235
4X120	1.2	2.2	40.8	1898	0.253	240	265
4X150	1.4	2.4	45.2	2369	0.206	270	300
4X185	1.6	2.6	52.1	2925	0.164	315	340
4X240	1.7	2.8	57.8	3700	0.125	375	395
4X300	1.8	3.0	63.5	4580	0.100	435	445
4X400	2.0	3.3	70.9	5800	0.0778	510	510

Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi . our factory established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100,000 square meters, including 50,000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third .our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity

Our factory has advanced equipment of 20 sets production lines and 25 sets testing machinas, The production capacity is more than 12 million kilometers. We have skillful staff over 20-year experience,before starting working, every worker need to be trained professionally. Therefore, we can promise the product will be 100% quantified.

In our factory, every roll wire need to be test strictly, We wil test resistance, insulation thickness, the tension, stretch and so on. Before packing, every cable need to be test quantified, and we can make promise the 100% quantified.

Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas

FAQ
Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance,70% T/T balance before shipment
