XLPE Stranded 78 44 4 Aramid Yarn 4mm PV Solar Cable Rpvu90

XLPE Stranded 78 44 4 Aramid Yarn 4mm PV Solar Cable Rpvu90 image

Get Latest Price Request a quote

Product Details

Model NO.

RPVU90 cable

Sheath Material

Crosslinking

Insulating Material

XLPE

Conductor Type

Stranded

Brand

Huatong Cables

Certification

cUL

Wire Core Material

Bare Copper Wire

Transport Package

Rolls

Specification

14AWG 12AWG 10AWG 2AWG 500MCM 750MCM 2/0AWG 4/0AWG

Trademark

Huatong Cables

Origin

China

HS Code

8544492100

Production Capacity

12 Containers Per Month

Product Description

1000/2000V Type RPVU90 Photovoltaic Cables

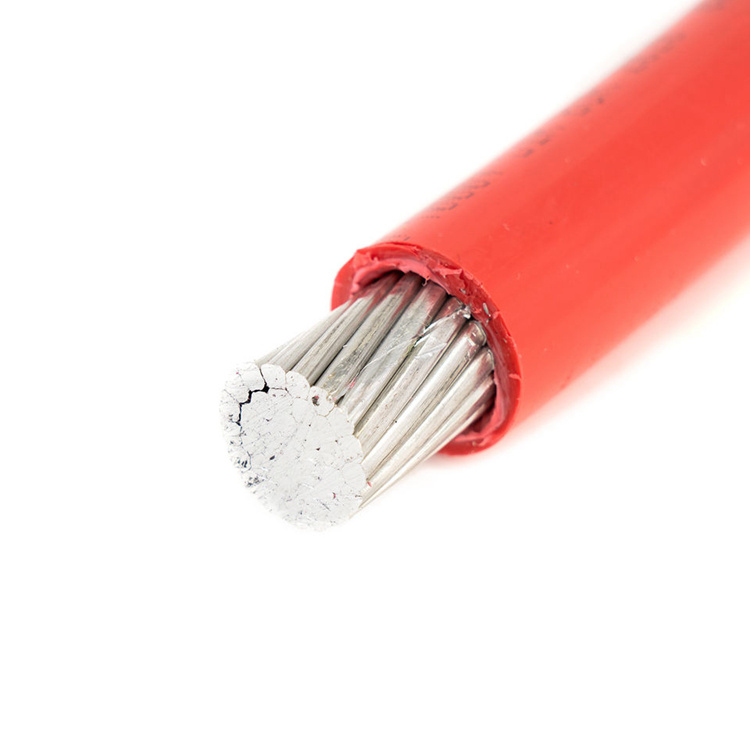

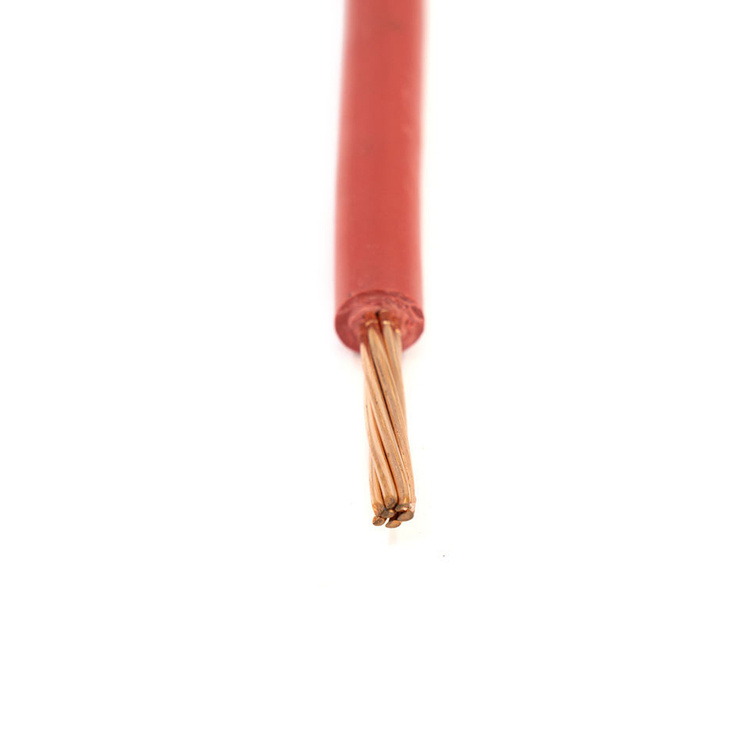

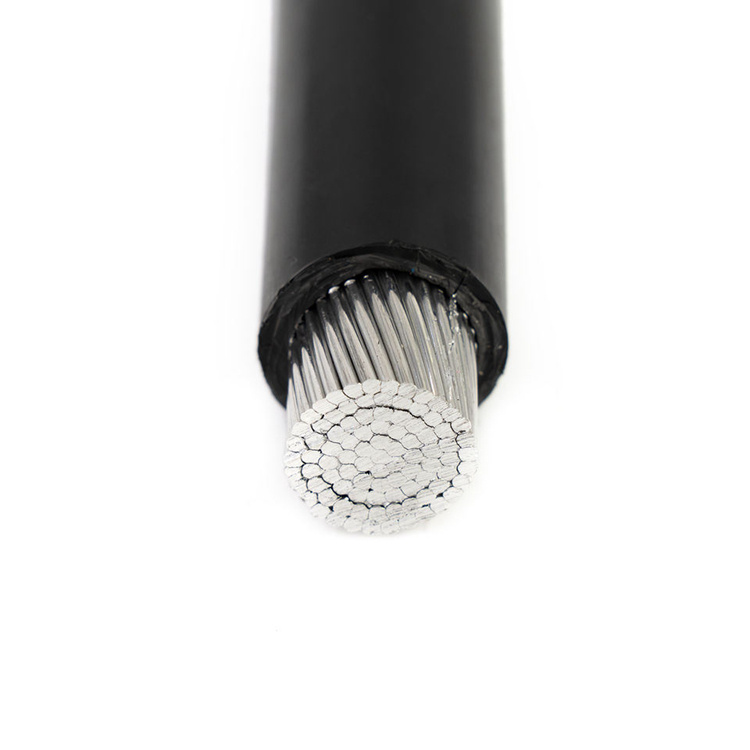

Conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B.
Insulation: Heat and moisture resistant, low temperature Cross-Linked Polyethylene (XLPE)

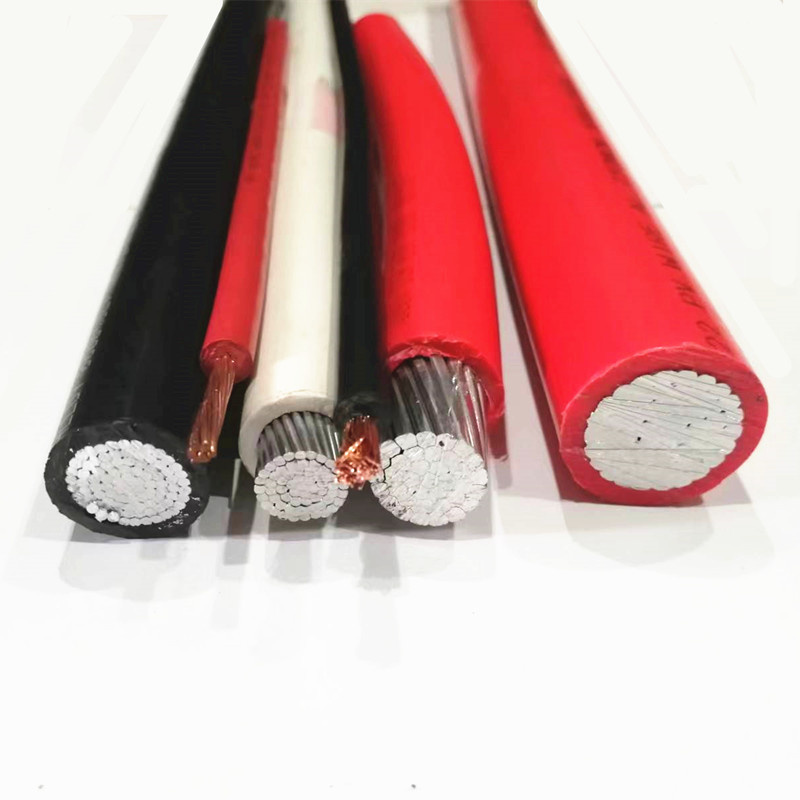

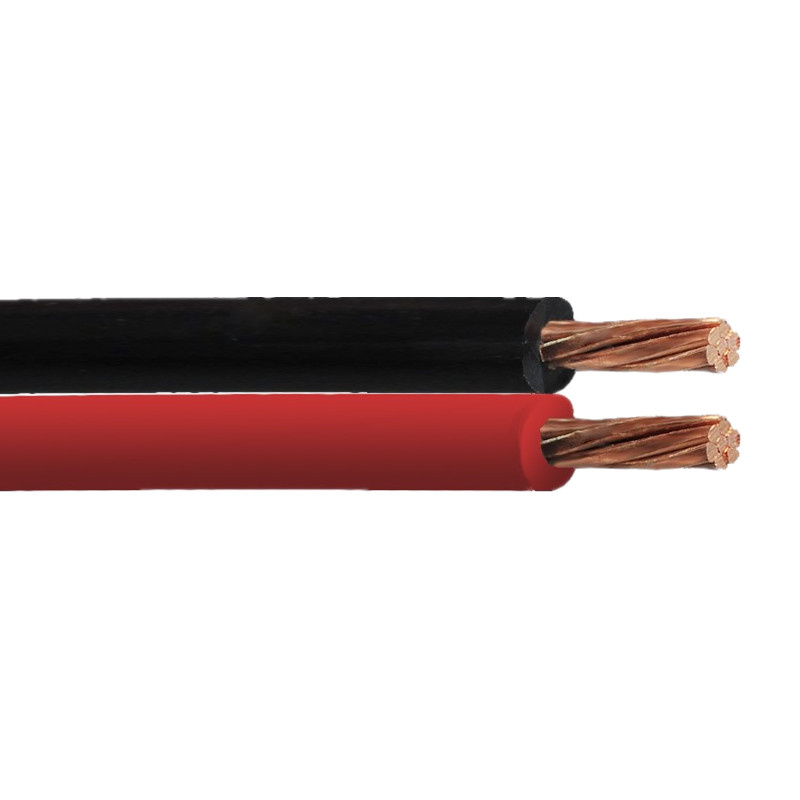

Color: Black or red, other colours available upon request.

Application:

For exposed wiring and raceways for interconnection of solar photovoltaic systems as per CEC Part I Section 64-210; For exposed wiring and raceways (including Tray Cable as per CEC Part I Section 64-210) in wet and dry locations.For direct earth burial (with protection as required by inspection)

Standard: CSA–Standard C22.2 No.38 and C22.2 No. 271

Working temperature: -40ºC to +90ºC

Voltage: 1000V, 2000V

Conductor			Insulation thickness	Approx. OD
AWG/kcmil	Nos of strands(CU)	Nos of strands(AL)	mm	mm
1X14	7	/	1.52	4.9
1X12	7	/	1.52	5.3
1X10	7	/	1.52	5.9
1X8	7	7	2.03	7.7
1X6	7	7	2.03	8.7
1X4	7	7	2.03	9.9
1X2	7	7	2.03	11.4
1X1/0	19	18	2.41	14.2
1X2/0	19	18	2.41	15.4
1X3/0	19	19	2.41	16.5
1X4/0	19	19	2.41	18.0
1X250	37	36	2.79	20.1
1X350	37	36	2.79	22.7
1X400	37	36	2.79	23.7
1X500	37	36	2.79	26.0
1X750	61	58	3.18	31.3

Package:

By coils or drums, according to clients’ requirement.

Largest manufacturer of UL&cUL approved cables in China!

Pls contact us for details! Fast quotation& Free samples!
