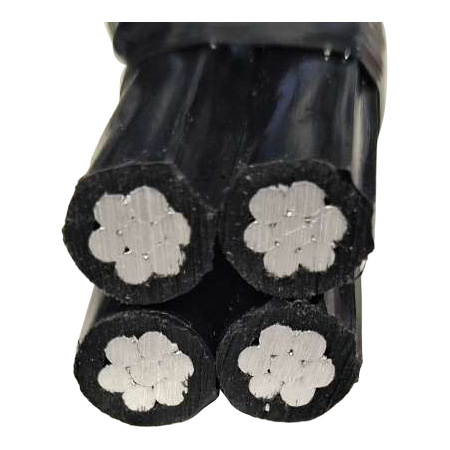

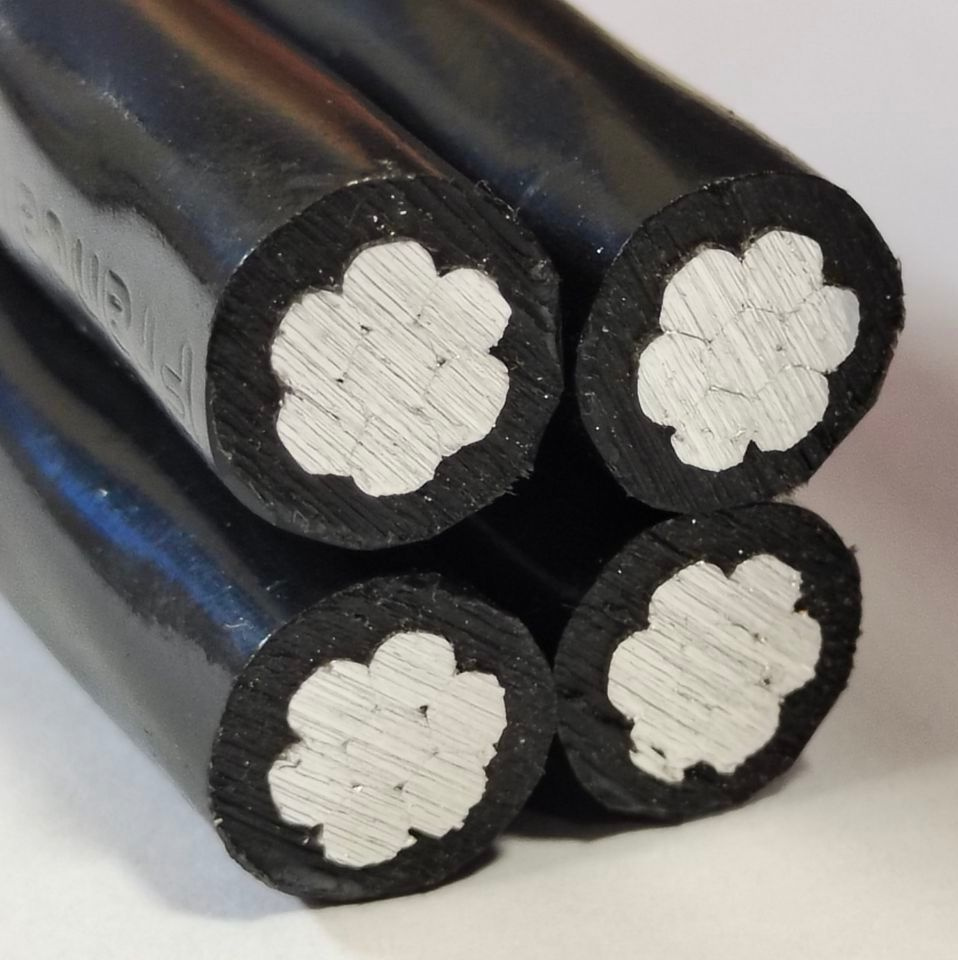

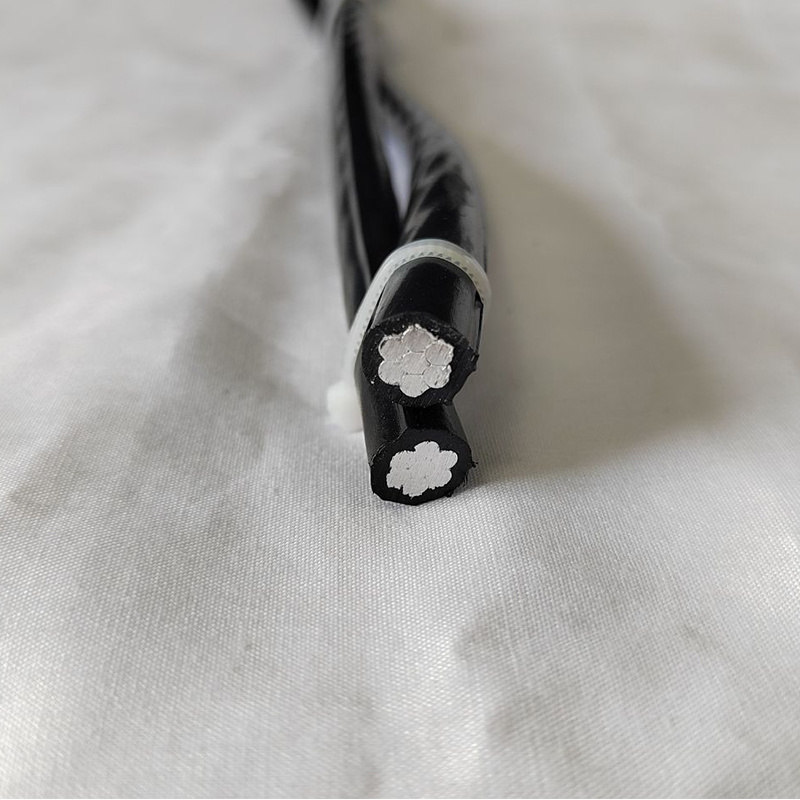

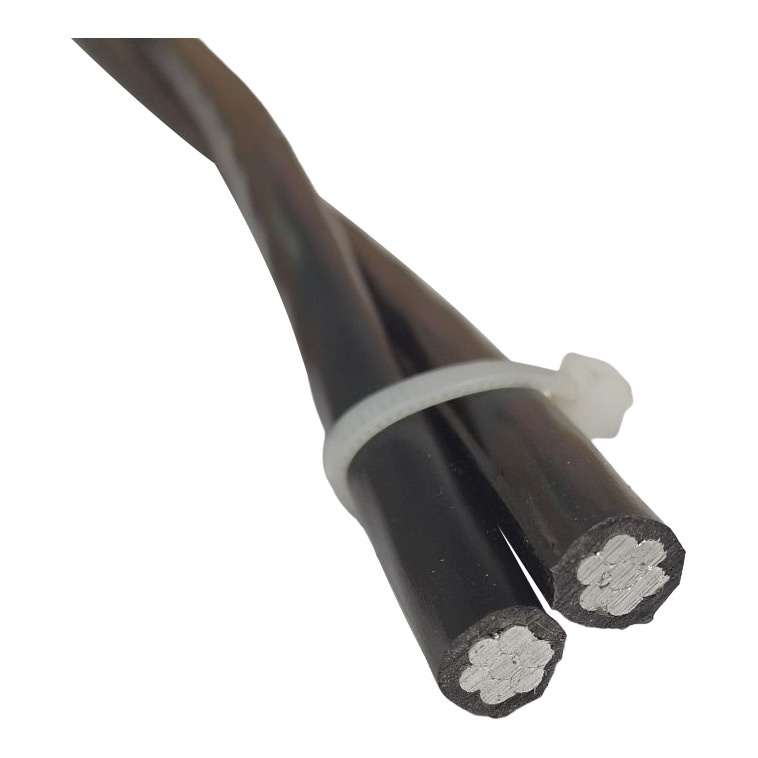

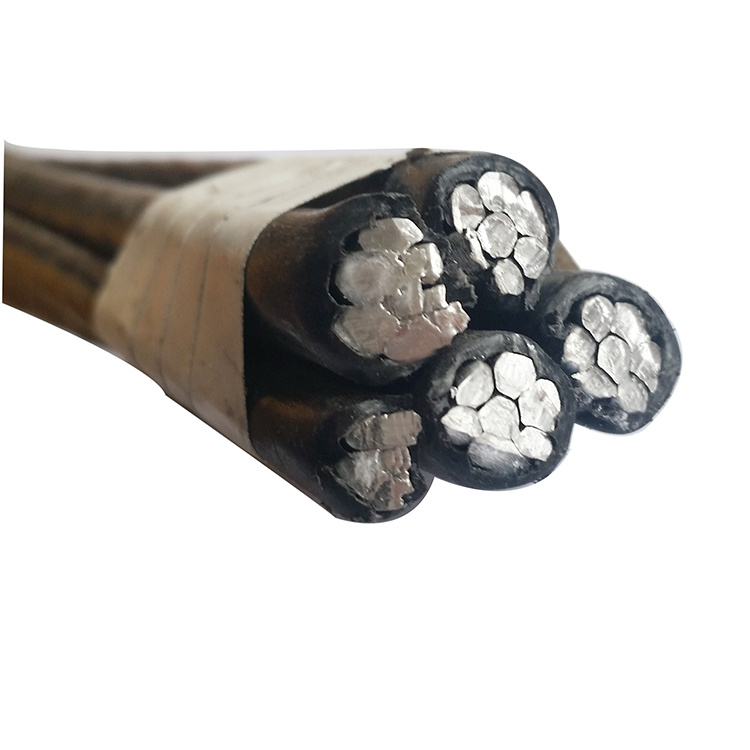

XLPE Aluminium 50mm2 Aluminum ABC Cable Price Overhead Conductor Cables

XLPE Aluminium 50mm2 Aluminum ABC Cable Price Overhead Conductor Cables image

Get Latest Price Request a quote

Product Details

Model NO.

ABC-NFC

Current

DC & AC

Insulation Material

XLPE

Sheath Material

XLPE

Material Shape

Round Wire

Wire Core Material

Aluminium Conductor

Certification

NFC Standard

Model

ABC Overhead Insulated Cable

Brand

Huadong

Product Name

Aerial Bundled ABC Cable

Rated Voltage

0.6/1kv

Cores

2-5 Cores

MOQ

1000m

Transport Package

by Wooden Drum

Specification

by meters

Trademark

huadong

Origin

China

HS Code

8544492100

Production Capacity

15 Million Km

Product Description

NFC French standard aluminium conductor xlpe insulated overhead abc aerial bundle power cable

APPLICATION
XLPE insulated Aerial Bundled Cables For distributive low overhead network in the city, pros urban and rural areas. For supply of remote facilities and villages of temporary and permanent character.For above-ground house connections.

CONSTRUCTION

Phase conductor: Circular compacted Al rope, class 2
Neutral conductor: Circular compacted Al or Al. Alloy rope, class 2
Insulation: XLPE compound

NFC 33-209 Standard ABC Cable Product Parameters:

Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2×10 RM	12.8	93	3.08	1.5	38
4×10 RM	15.4	183	3.08	1.5	38
2×16 RM	14.8	129	1.91	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.910/12.100	2.3	72
4×16 RM	17.8	257	1.91	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.910/12.100	2.3	72
2×25 RM	18	202	1.2	3.8	107
2×25 RM + 2×1.5 RE	18	249	1.200/12.100	3.8	107
4×25 RM	21.7	404	1.2	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.200/12.100	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868/12.100	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868/12.100	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641/12.100	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630/1.200	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630/1.200/1.910	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630/0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630/0.868/1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630/0.868/1.200	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630/0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630/0.641/1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630/0.641/1.200	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33	950	0.630/0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37	1014	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630/0.443/1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37	1048	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630/0.443/1.200	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630/0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630/0.320/1.910	13.5/2.3	240/72

1.You are manufacturer or trader ?

We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.

2.How can I get the quotation of the products ?

Pls send inquiry to us,we will reply you within 12 hours.

3.What does your company do regarding quality control?

1) All raw materials we selected are the highest quality.

2) Professional and skillful workers care every details in handling the producing.

3) Quality control department is specially responsible for quality checking in each process.

4.Do you provide OEM project service?

Yes,OEM & ODM order is warmly welcomed.

Our technical engineers can give you the professional suggestions.

5.Can I get the sample?

Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.

We are China XLPE Aluminium 50mm2 Aluminum ABC Cable Price Overhead Conductor Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
