Water Resistant Armoured Electrical Cable for Underwater Applications

Water Resistant Armoured Electrical Cable for Underwater Applications image

Get Latest Price Request a quote

Product Details

Model NO.

CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 mm2

Current

AC Cable

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CCC, CE, RoHS, VDE

Model

Yjv32

Brand

Shanghai Shenghua

Armored

Galvanized Steel Wire

Conductor

Straned Copper

Insulation

XLPE

Insulation Color

Red,Black,Yellow,Green

Jacket

PVC

Inner Sheath

PVC

Rated Voltage

600/1000V

Standard

IEC60502

Bending Radius

12X Cable O.D

Test Voltage

3.5kv/5mins

Sample

Free

Apply

Power Station

Working Temp

90 ºC

Certificate

Kema

Dia of Swa

2.5mm

Transport Package

500m/Reel

Specification

3x185+1x95

Trademark

SHAN CABLE

Origin

Shanghai China

HS Code

8544492100

Production Capacity

9853km/Week

Product Description

Steel Wire Armored XLPE Insulated Electrical Powwr Cable CU/XLPE/SWA/PVC-0.6/1KV 3×185+1×95 mm2

Construction:

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation      : XLPE(cross-linked polyethylene) rated at 90^OC

Inner covering : PVC

Armoring       : Galvanized steel wire

Sheath         : PVC type ST₂ to IEC 60502, black

Code Designation:

YJ: XLPE insulation

V: PVC sheath

32: Galvanized steel wire armoring

ZR: Flame resistant
Applications:
Apply to shafts,water and soil,able to bear the larger positive pressure.
Standards:
International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical Data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250ºC) conditions.

Min. Ambient Temp.  0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D
Certificates:
CE, RoHS, CCC, KEMA and more others at request

Detail Specifications:

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ºC)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm			mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
2 × 1.5	1/1.38	0.7	1.0	0.9	1.8	15.0	330	12.1	3.5	20	27
2 × 2.5	1/1.78	0.7	1.0	0.9	1.8	16.0	376	7.41	3.5	26	35
2 × 4	1/2.25	0.7	1.0	0.9	1.8	17.0	554	4.61	3.5	34	45
2 × 6	1/2.76	0.7	1.0	0.9	1.8	18.2	633	3.08	3.5	43	57
2 × 10	7/1.38	0.7	1.0	1.25	1.8	21.0	797	1.83	3.5	60	77
2 × 16	7/1.78	0.7	1.0	1.60	1.8	23.5	1124	1.15	3.5	83	105
2 × 25	7/2.14	0.9	1.0	1.6	1.8	26.0	1417	0.727	3.5	105	125
2 × 35	7/2.52	0.9	1.0	1.6	1.8	30.5	1694	0.524	3.5	125	155
2 × 50	10/2.52	1.0	1.0	1.6	1.8	27.0	1787	0.387	3.5	160	185
2 × 70	14/2.52	1.1	1.0	1.6	2	30.0	2181	0.268	3.5	200	225
2 × 95	19/2.52	1.1	1.2	1.6	2.1	34.0	2768	0.193	3.5	245	270
2 × 120	24/2.52	1.2	1.2	2.0	2.2	36.5	3500	0.153	3.5	285	310
2 × 150	30/2.52	1.4	1.2	2.0	2.4	42.0	4233	0.124	3.5	325	345
2 × 185	37/2.52	1.6	1.2	2.0	2.5	45.0	4979	0.0991	3.5	375	390
3 × 1.5	1/1.38	0.7	1.0	0.9	1.8	15.8	359	12.1	3.5	20	27
3 × 2.5	1/1.78	0.7	1.0	0.9	1.8	16.8	415	7.41	3.5	26	35
3 × 4	1/2.25	0.7	1.0	0.9	1.8	18.0	611	4.61	3.5	34	45
3 × 6	1/2.76	0.7	1.0	0.9	1.8	19.0	718	3.08	3.5	43	57
3 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	937	1.83	3.5	60	77
3 × 16	7/1.78	0.7	1.0	1.60	1.8	24.5	1318	1.15	3.5	83	105
3 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	1707	0.727	3.5	105	125
3 × 35	7/2.52	0.9	1.0	1.6	1.8	32.5	2071	0.524	3.5	125	155
3 × 50	10/2.52	1.0	1.0	1.6	1.9	33.0	2405	0.387	3.5	160	185
3 × 70	14/2.52	1.1	1.0	1.6	2.0	37.0	3084	0.268	3.5	200	225
3 × 95	19/2.52	1.1	1.2	1.6	2.1	43.0	4126	0.193	3.5	245	270
3 × 120	24/2.52	1.2	1.2	2.0	2.3	45.0	4901	0.153	3.5	285	310
3 × 150	30/2.52	1.4	1.4	2.0	2.4	51.0	6365	0.124	3.5	325	345
3 × 185	37/2.52	1.6	1.4	2.0	2.6	56.0	7555	0.0991	3.5	375	390
3 × 240	48/2.52	1.7	1.4	2.5	2.8	62.0	9284	0.0754	3.5	440	450
3 × 300	61/2.52	1.8	1.6	2.5	3.0	67.0	11226	0.0601	3.5	505	515
3 × 400	61/2.97	2.0	1.6	2.5	3.2	74.0	15714	0.0470	3.5	570	575
4 × 4	1/2.25	0.7	1.0	0.9	1.8	18.0	699	4.61	3.5	34	45
4 × 6	1/2.76	0.7	1.0	1.25	1.8	19.0	820	3.08	3.5	43	57
4 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	1233	1.83	3.5	60	77
4 × 16	7/1.78	0.7	1.0	1.6	1.8	24.5	1550	1.15	3.5	83	105
4 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	2036	0.727	3.5	105	125
4 × 35	7/2.52	0.9	1.0	2.0	1.9	32.5	2501	0.524	3.5	125	155
4 × 50	10/2.52	1.0	1.0	2.0	2.0	33.0	3064	0.387	3.5	160	185
4 × 70	14/2.52	1.1	1.0	2.0	2.1	37.0	3974	0.268	3.5	200	225
4 × 95	19/2.52	1.1	1.2	2.0	2.3	43.0	5032	0.193	3.5	245	270
4 × 120	24/2.52	1.2	1.2	2.5	2.5	45.0	6327	0.153	3.5	285	310
4 × 150	30/2.52	1.4	1.4	2.5	2.7	51.0	7765	0.124	3.5	325	345
4 × 185	37/2.52	1.6	1.4	2.5	2.8	56.0	9205	0.0991	3.5	375	390
4 × 240	48/2.52	1.7	1.4	2.5	3.0	62.0	11444	0.0754	3.5	440	450
4 × 300	61/2.52	1.8	1.6	2.5	3.2	67.0	13830	0.0601	3.5	505	515
4 × 400	61/2.97	2.0	1.6	3.15	3.5	74.0	19673	0.0470	3.5	570	575
5 × 4	1/2.25	0.7	1.0	1.25	1.8	20.0	783	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.0	1.25	1.8	22.4	946	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.0	1.6	1.8	25.8	1398	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.0	1.6	1.8	29.0	1784	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.0	1.6	1.8	34.2	2378	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.0	1.6	1.9	37.8	3237	0.524	3.5	125	155
5× 50	10/2.52	1.0	1.2	2.0	2.1	43.2	3994	0.387	3.5	160	185
5× 70	14/2.52	1.1	1.2	2.0	2.3	49.0	5514	0.268	3.5	200	225
5× 95	19/2.52	1.1	1.4	2.5	2.5	55.0	6816	0.193	3.5	245	270
5 × 120	24/2.52	1.2	1.4	2.5	2.6	61.0	8174	0.153	3.5	285	310
5 × 150	30/2.52	1.4	1.4	2.5	2.8	67.8	9859	0.124	3.5	325	345
5 × 185	37/2.52	1.6	1.6	2.5	3.0	74.3	11805	0.0991	3.5	375	390
5 × 240	48/2.52	1.7	1.6	3.2	3.3	83.0	15706	0.0754	3.5	440	450
3 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	18.7	624	4.61	3.5	34	45
3 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	0.9	1.8	20.0	752	3.08	3.5	43	57
3 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	23.3	1154	1.83	3.5	60	77
3 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	1.25	1.8	25.8	1456	1.15	3.5	83	105
3 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	30.0	1905	0.727	3.5	105	125
3 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.8	33.0	2259	0.524	3.5	125	155
3 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.0	1.6	1.9	35.5	2705	0.387	3.5	160	185
3 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.0	2.0	2.0	41.0	3729	0.268	3.5	200	225
3 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.1	46.0	4732	0.193	3.5	245	270
3 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.2	2.0	2.3	51.0	6071	0.153	3.5	285	310
3 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2.5	2.4	56.5	7198	0.124	3.5	325	345
3 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.4	2.5	2.6	62.0	8558	0.0991	3.5	375	390
3 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.4	2.5	2.8	68.0	10580	0.0754	3.5	440	450
3 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.6	2.5	3.0	75.0	12742	0.0601	3.5	505	515
3 × 4+ 2 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	18.7	735	4.61	3.5	34	45
3 × 6+ 2 × 4	1/2.76+1/2.25	0.7	1.0	1.25	1.8	21.0	879	3.08	3.5	43	57
3 × 10+ 2 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	24.2	1263	1.83	3.5	60	77
3 × 16+ 2 × 10	7/1.78+7/1.38	0.7	1.0	1.6	1.8	27.5	1616	1.15	3.5	83	105
3 × 25+ 2 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	32.5	2142	0.727	3.5	105	125
3 × 35+ 2 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.9	35.5	2492	0.524	3.5	125	155
3 × 50+ 2 × 25	10/2.52+7/2.14	1.0	1.0	2.0	2.2	40.0	3408	0.387	3.5	160	185
3 × 70+ 2 × 35	14/2.52+7/2.52	1.1	1.0	2.0	2.4	45.6	4338	0.268	3.5	200	225
3 × 95+ 2 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.6	50.0	5374	0.193	3.5	245	270
3 × 120+ 2 × 70	24/2.52+14/2.52	1.2	1.2	2.5	2.7	56.9	7145	0.153	3.5	285	310
3 × 150+ 2 × 70	30/2.52+14/2.52	1.4	1.4	2.5	2.9	62.4	8076	0.124	3.5	325	345
3 × 185+ 2 × 95	37/2.52+19/2.52	1.6	1.4	2.5	3.0	67.6	9779	0.0991	3.5	375	390
3 × 240+ 2 × 120	48/2.52+24/2.52	1.7	1.4	2.5	3.2	73.8	12024	0.0754	3.5	440	450
3 × 300+ 2 × 150	61/2.52+30/2.52	1.8	1.6	3.15	3.4	83.0	14366	0.0601	3.5	505	515
4 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	0.9	1.8	20.0	752	4.61	3.5	34	45
4 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	1.25	1.8	21.5	913	3.08	3.5	43	57
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	1.25	1.8	25.0	1323	1.83	3.5	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	1.6	1.8	28.6	1691	1.15	3.5	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	1.6	1.8	33.5	2256	0.727	3.5	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	1.6	1.9	36.0	2957	0.524	3.5	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.2	2.0	2.2	42.0	3643	0.387	3.5	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.2	2.0	2.4	47.0	4614	0.268	3.5	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2.0	2.6	51.2	6140	0.193	3.5	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.4	2.5	2.8	59.0	7544	0.153	3.5	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2.5	3.0	64.0	8733	0.124	3.5	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.6	2.5	3.1	71.0	10597	0.0991	3.5	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.6	2.5	3.3	78.0	13029	0.0754	3.5	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.6	3.15	3.5	88.0	17172	0.0601	3.5	505	515

Packing and Packing Photo

500m/wooden drum or 1000m/wooden drum.

We are China Water Resistant Armoured Electrical Cable for Underwater Applications manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Get Latest Price Request a quote

Tags: Armored Power Cable, Ltd., Shanghai Shenghua Cable Co., Swa Electrical Power Cable

Water Resistant Armoured Electrical Cable for Underwater Applications

You May Like

Composite Optical Ground Wire G657b3 Fiber Optic Drop ADSS Cable

The Largest Cable Manufacturer Directly Acwu Cable Aluminum Conductor for Canadian Market

Factory Stranded Ht Cables Black 2kv Aluminum Cable Rpv90 Photovoltaic PV Rpvu90

Flame Resistant PVC XLPE or Silicone Rubber Insulated Solar PV Cable

3X2AWG AAC/XLPE+ACSR Duplex Triplex Quadruplex ACSR 2AWG Service Drop Wire

1.5 mm 2.5 mm 10mm Twin and Earth Electrical Wire and Cables PVC Insulation 4mm Flat 3 Core 6mm 16mm Active Circular Electric China Copper Power

0.6/1kv N2xsy N2xsey Yjv Yjlv Yjv22 Yjlv22 XLPE Insulation Steel Tape Armored Sta Power Cable

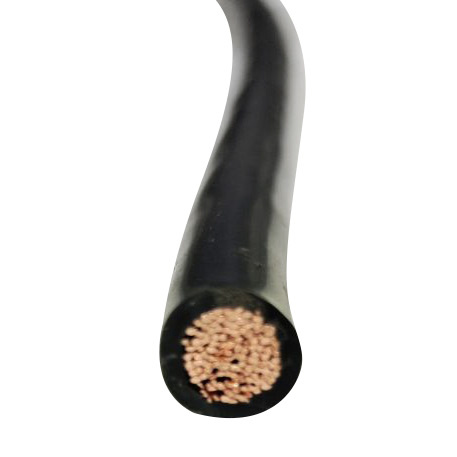

China Factory Manufacture 4 AWG Silicone Rubber Insulated Copper Welding Power Cable
