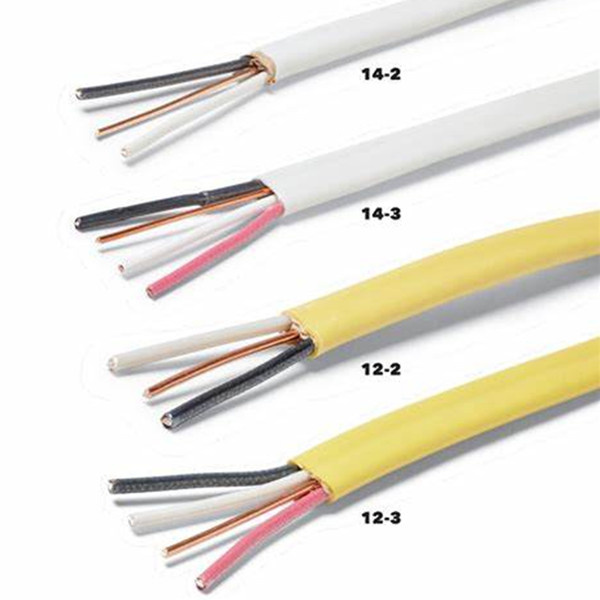

UL719 Standard NM-B Cable for Building Homes
Standards: UL719, UL83
UL file No.: E487898
ASSEMBLY:
- conductor construction has the insulated conductors laid parallel with a bare copper ground wire wrapped in fire-retardant paper and laid parallel between the insulated conductors. The entire assembly is wrapped with a paper separator before applying the PVC outer jacket. 3 and 4 conductor constructions may have the insulated conductors laid parallel or twisted together before applying.
STRUCTURE:
- Conductor: annealed copper, comply to ASTM B3
- Insulation: PVC, type THHN.
- Wrapping: kraft paper tape over the grounding conductor
- Core jacket: Nylon
- assembly: the conductor laid parallel, with kraft paper tape wrapped.
| Size (AWG) | Number of strands in the conductor | Insulation Thickness mm |
Min. Thickness of nylon (mm) | Size of grounding core (AWG) | Jacket thicknes (mm) | Color of jacket | Approx. OD L*H (mm) |
| 14/2 | 1 | 0.38 | 0.1 | 14 | 0.76 | white | 4.5*9.1 |
| 12/2 | 1 | 0.38 | 0.1 | 12 | 0.76 | yellow | 4.9*10.4 |
| 10/2 | 1 | 0.51 | 0.1 | 10 | 0.76 | Orange | 5.7*12.5 |
| 8/2 | 7 | 0.76 | 0.13 | 10 | 0.76 | black | 7.4*15.9 |
| 14/3 | 1 | 0.38 | 0.1 | 14 | 0.76 | White | 4.5*11.8 |
| 12/3 | 1 | 0.38 | 0.1 | 12 | 0.76 | Yellow | 4.9*13.4 |
