UL1277 Power and Control Tray Cable Type TC

Product Description

1 Applications:
Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC is also listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. Constructions with 3 or more conductors are listed for exposed runs ( TC-ER) per NEC 336.10. Conductors may be used at temperatures not to exceed 75° C in wet locations or 90° C in dry locations.

2 Standard:
Type TC Control Cable meets or exceeds the applicable requirements of the following standards and specifications:
• ASTM – (All applicable standards)
• UL 1277 – Electrical Power and Control Tray Cables
• UL 1581 – Electrical Wires, Cables and Flexible Cords
• ICEA S-58-679 – Control Cable Conductor Identification. (Method 1, Table 2 – colored compounds with tracer colors – excluding white and green)
• UL 1685 – UL Flame Exposure Test (70,000 BTU/hr)
• ICEA T-29-520 – Vertical Cable Tray Flame Test (210,000 BTU/hr)
• IEEE 1202 – Flame Testing of Cables for Use in Cable Tray in Industrial and Commercial Occupancies (70,000 BTU/hr)
• ICEA S-95-658 (NEMA WC 70) – Nonshielded 0 – 2 kV Cables, with testing frequencies based on UL requirements
• RoHS Compliant

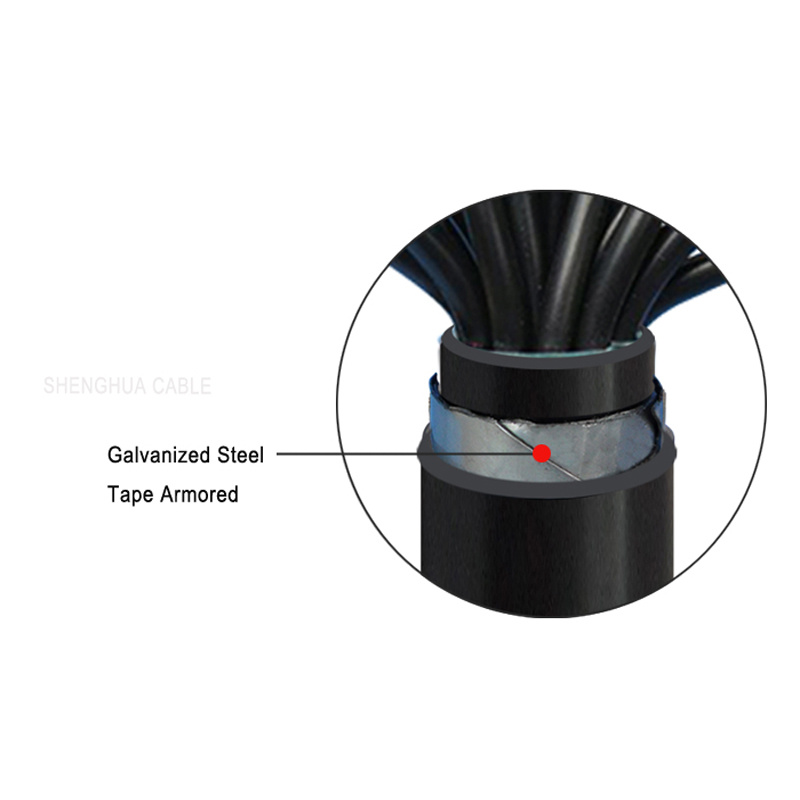

3 CONSTRUCTION
Type TC Control Cable is available in sizes 14 AWG through 10 AWG, with multi conductor constructions of two through 37 conductors. The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG .Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight resistant PVC. Non-halogen jacket available upon request.
