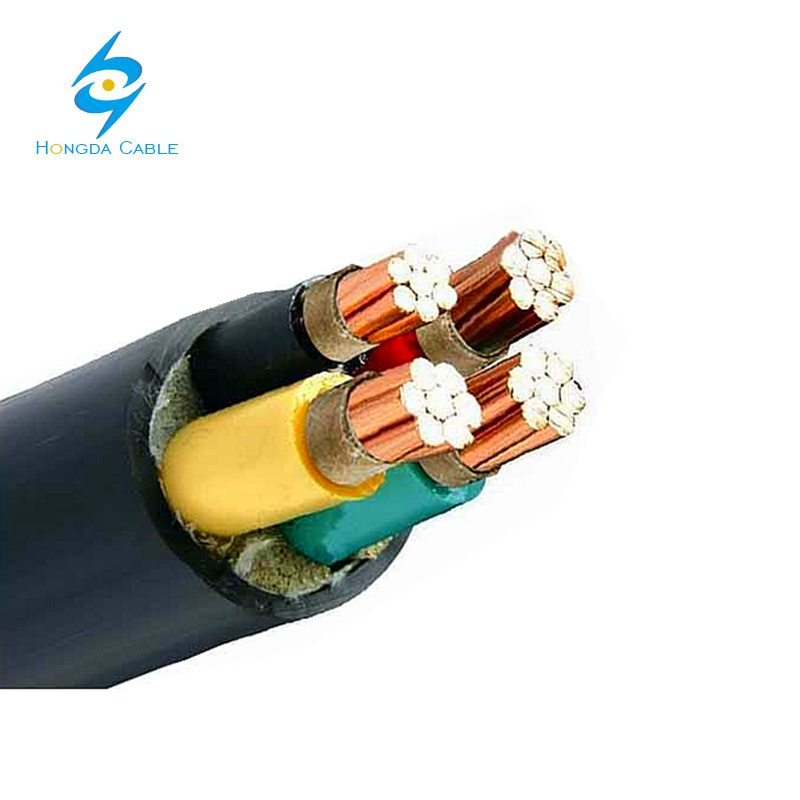

UL1277 600V 4/0 AWG 3 Conductor with Ground Vntc Underground Electrical Tray Cable

UL1072 Power Tray Cable/Type TC-ER Cable

Type TC-ER Cable
Type THHN/THWN Conductors
600V, 90°C

Power Tray Cable Construction:

• Conductors: Stranded Tinned Copper
  • 8 AWG – 2 AWG: Annealed, Class C
  • 1/0 AWG – 750 kcmil: Compressed, Class B
• Insulation: Polyvinylchloride (PVC) with Nylon Protective Coating
  • Black, numbered, per ICEA Method 4
• Jacket: Flame-Retardant PVC

Power Tray Cable Ratings and Approvals:

• UL 1277, Type TC
• UL 83
• Extended Run (ER) Rated
• UL Subject 1277 (70,000 BTU) Flame Test
• Type THHN/THWN Conductors
• Voltage Rating: 600V
• Temperature Rating: 90°C (75°C Wet)

Power Tray Cable Applications:

• Signal, control, power, lighting, or communication
• Installation in raceways, direct burial, or outdoors (sunlight resistant)
• Suitable for wet or dry locations, and in the presence of oil and most chemicals in accordance with NEC
• Acceptable for use in Class 1, Division 2 hazardous locations

Company information:

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.

 Packing :

FAQ:

(1)When can I get the price?

A: The payment term varies with different price level and total value of every contract.

The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
