UL-Approved Type W 2kv Portable Mining Cable

UL-Approved Type W 2kv Portable Mining Cable image

Get Latest Price Request a quote

Product Details

Model NO.

Type W

Application

Underground

Conductor Material

Copper

Sheath Material

CPE

Insulation Material

Epr

Material Shape

Round Wire

Range of Application

Mining

Certification

UL1650

Brand

Hebei Huatong

Production Name

Type W

Core

Multi Core

Transport Package

Standard Export Drums

Specification

8AWG-500mcm

Trademark

RENDA

Origin

Tangshan, Hebei Province

HS Code

8544492100

Production Capacity

500km/Month

Product Description

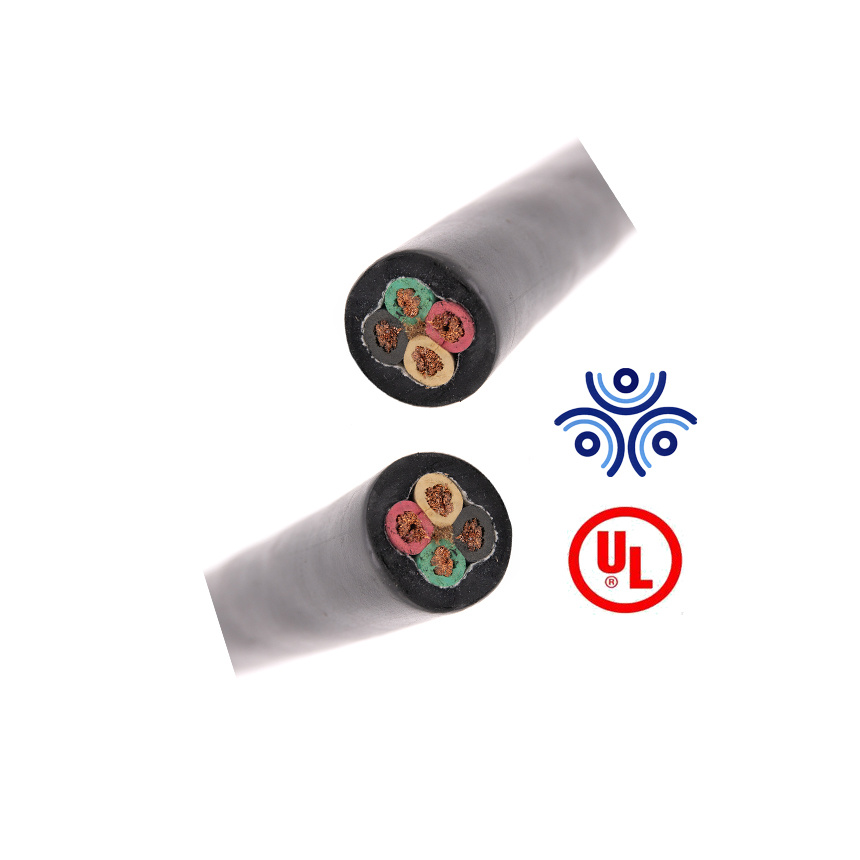

Type W Cables 2kv Mining Cable

For use in all stationary, underground, or surface mining applications. For use with drills and pumps, and as portable power and temporary power supply cables.

UL2806

1. Conductors:Annealed flexible stranded tin copper
2. Separator:Tape separator between conductor and insulation (if necessary)
3. Insulation:Ethylene-propylene rubber (EPR)
1-core black
2-cores black/white
3-cores black/white/green
4-cores black/white/green/red
5-cores black/white/green/red/orange
5. Assembly:Power and grounds cores cabled together to form a round core
6. Filler:rubber filled binder tape over core.
7. Jacket:Black heavy duty CPE thermosetting compound.

Voltage:

2000V

Performance:

Oil resistant;
UV resistant.

We are China UL-Approved Type W 2kv Portable Mining Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
