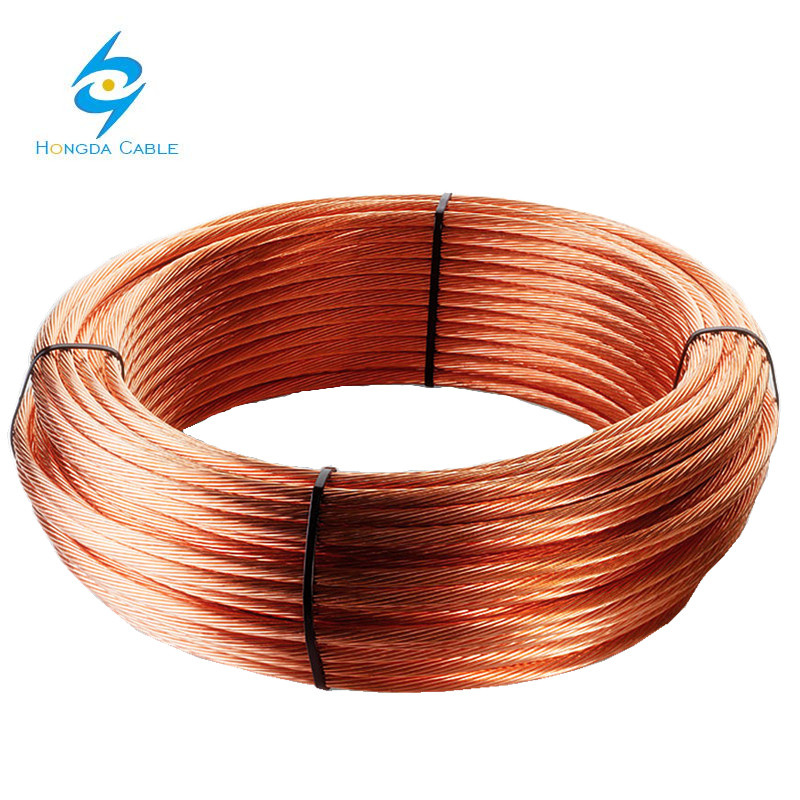

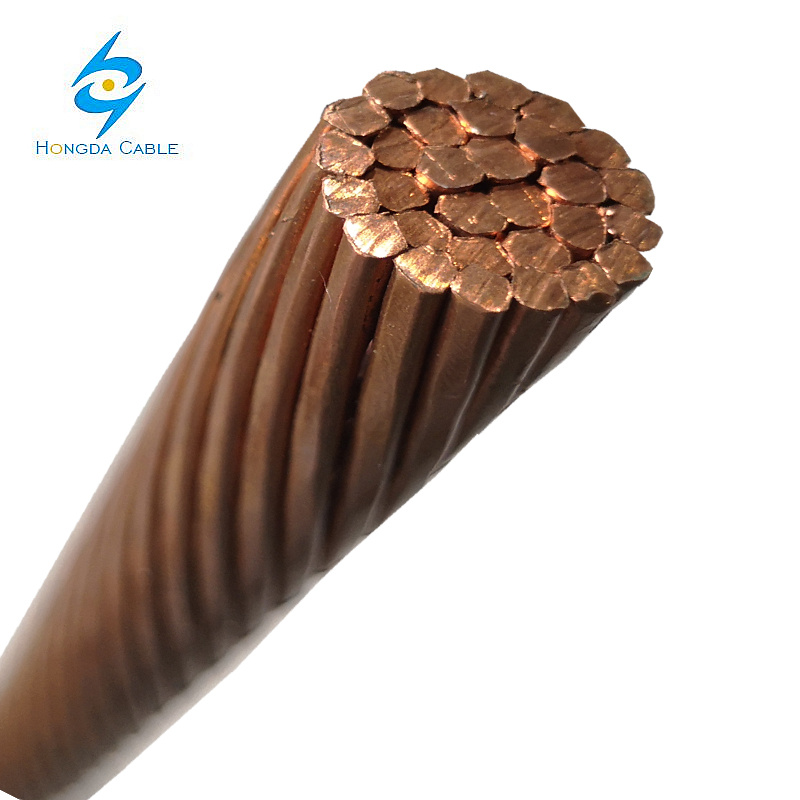

Stranded Bare Copper Earth Conductor 1/0 AWG 2/0AWG 4/0AWG
Stranded Bare Copper Earth Conductor 1/0 AWG 2/0AWG 4/0AWG image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Standard
ASTM B-1: Standard Specification for Hard-drawn Copper Wire
ASTM B-8: Standard Specification for Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard or Soft
|
ominal Area
|
Stranding/Wire Diameter
|
Approximate Overall Diameter
|
Nominal Mass
|
DCResistance at 20ºC
|
Minimum Breaking Load
|
|
mm2
|
mm
|
mm
|
Kg/Km
|
Ohm/Km
|
KN
|
|
10
|
7/1.35
|
4.05
|
89.82
|
1.8290
|
3.752
|
|
14
|
7/1.6
|
4.80
|
126.20
|
1.3030
|
5.267
|
|
16
|
3/2.65
|
5.72
|
148.30
|
1.1060
|
6.194
|
|
16
|
7/1.7
|
5.10
|
142.40
|
1.1540
|
5.946
|
|
25
|
7/2.1
|
6.30
|
217.30
|
0.7563
|
9.073
|
|
32
|
3/3.75
|
8.10
|
296.90
|
0.5520
|
12.40
|
|
32
|
7/2.45
|
7.38
|
298.20
|
0.5497
|
12.442
|
|
35
|
7/2.50
|
7.50
|
308.00
|
0.5337
|
12.860
|
|
50
|
7/3.00
|
9.00
|
443.50
|
0.3706
|
18.52
|
|
50
|
19/1.80
|
9.00
|
435.80
|
0.3819
|
17.70
|
|
70
|
7/3.55
|
10.65
|
621.10
|
0.2646
|
25.93
|
|
70
|
19/2.10
|
10.50
|
593.20
|
0.2806
|
24.09
|
|
95
|
19/2.50
|
12.50
|
840.70
|
0.1980
|
34.14
|
|
100
|
7/4.30
|
12.90
|
911.20
|
0.1810
|
36.54
|
Application
Bare Copper Conductor
These are standard circular bare copper conductors mainly used for :
a) Overhead transmission system
b) Overhead traction system
c)Transformer earthing (occasionally)
d) as conductor for the other cables, such as welding cable, power cable, control cable and so on.
Bare copper wire
The cable can be made according to the IEC, VDE, BS, Standards
We are China Stranded Bare Copper Earth Conductor 1/0 AWG 2/0AWG 4/0AWG manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
