South African Standard Sans Flexible Mining Trailing Cable Type 41 and Type 61 Cable 35mm 50mm 70mm

South African Standard Sans Flexible Mining Trailing Cable Type 41 and Type 61 Cable 35mm 50mm 70mm image
Get Latest Price Request a quote
You May Like
Product Details
Packaging & Delivery
Product Description

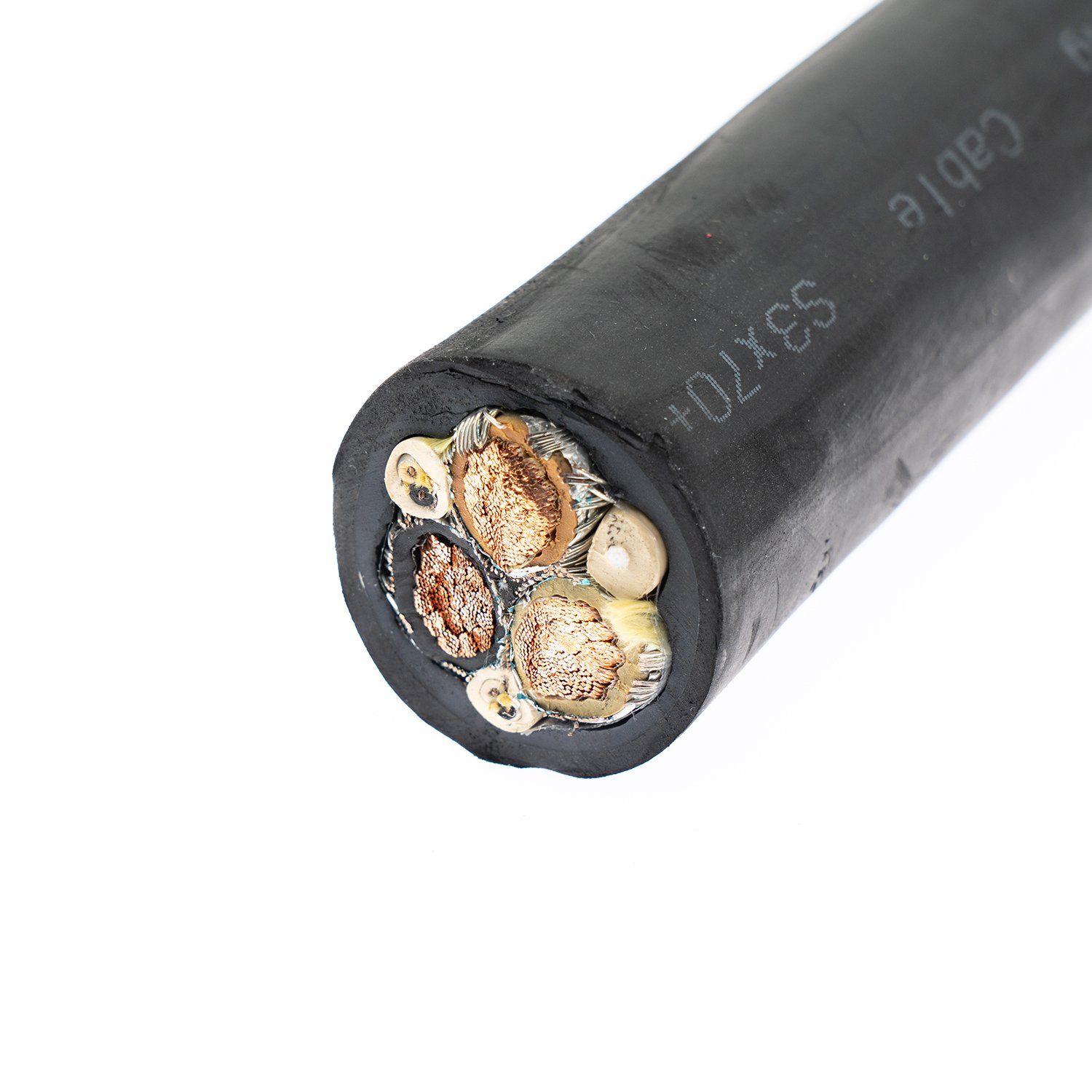

Type61 640/1100V Rubber Power Cable Tinned Copper Conductor Epr Insulation CPE or CR Sheath Mining Cable
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 1000MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD’S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY
Applications:
Specifications:
Features
Technical data
Physical Properties | ||||||||
Power cores | ||||||||
Conductor sizes (mm2) | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 |
Maximum wire diameter ( mm) | 0.41 | 0.41 | 0.41 | 0.51 | 0.51 | 0.51 | 0.51 | 0.51 |
Approx. conductor diameter ( mm) | 5.3 | 6.8 | 8.5 | 10.3 | 11.9 | 13.5 | 15.5 | 17.3 |
Maximum screen wire diameter (mm) | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
Braided screen filling factor (%) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Approx. summarized screen cross-section for power cores (weighing method) (mm2) |
22 | 25 | 27 | 32 | 37 | 43 | 47 | 52 |
Pilot cores | ||||||||
Conductor sizes ( mm2) | 10 | 10 | 16 | 16 | 16 | 16 | 16 | 16 |
Maximum wire diameter ( mm) | 0.41 | 0.41 | 0.41 | 0.41 | 0.41 | 0.41 | 0.41 | 0.41 |
Approx. conductor diameter ( mm) | 4.2 | 4.2 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
Lay Ratio (maximum) (x PCD) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Cable diameter | ||||||||
Approx. (mm) | 31 | 38 | 43 | 47 | 52 | 58 | 63 | 70 |
Cable mass (approx.) (kg/m) | 1.8 | 3.1 | 3.6 | 4.5 | 5.6 | 7.0 | 8.4 | 10.2 |
Minimum bending radius (mm) | 200 | 240 | 260 | 290 | 320 | 350 | 390 | 430 |
Maximum recommended tension (kN) | 0.7 | 1.1 | 1.6 | 2.3 | 3.2 | 4.3 | 5.4 | 6.8 |
Company profile
Huatong extremely focuses on doing R&D high-tech, new-type, advanced products, till now, we have obtained UL, CSA, TUV, CE, PSB, SABS, BV, KEMA certifications and ISO9001, ISO14001, ISO45001 system certifications. CNAS accredited national level laboratory.
Company name : Hebei Huatong Wires and Cables Group Co., Ltd
Establishment : 1993
Registered capital : CNY430.82 Million, equal to: US$62 Million
Plant size : 420,000SQM
Employees : 2000+
Production capacity: US$1000Million
Sub-factories : in South Africa, Tanzania, Kazakhstan, Cameroon, etc.
Main products : ESP cable, mining cable, power cable up to 46KV, control cable, lift cable, shipboard cable, housing wire, and many other special cables.
Address : No.111 Huatong Avenue Fengnan Industrlal Zone Tangshan,Hebei Province, China
1. 30 years production experience and 22 years export experience .
2.Products certification :CUL CSA UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
We are China South African Standard Sans Flexible Mining Trailing Cable Type 41 and Type 61 Cable 35mm 50mm 70mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
