Soft Packing, or as Your Request 300V Wire 150m Roll

Soft Packing, or as Your Request 300V Wire 150m Roll image

Get Latest Price Request a quote

Product Details

Model NO.

NMD90 wire

Sheath Material

PVC, Indoor, Construction, Building

Insulation Material

PVC

Material Shape

Flat Wire

Certification

ISO9001, CE, CCC, RoHS, VDE, Rneda

Voltage

300V

Standard.

cUL719

Product Name

Nmd90

Conductor

Copper

Insulation

PVC

Sheath

PVC

Color

Yellow, White

Transport Package

Soft Packing, or as Your Request

Specification

14/2 awg

Trademark

Hebei Huatong Cables

Origin

China. Hebei. Tangshan

HS Code

8544492100

Production Capacity

5000km Per Month

Product Description

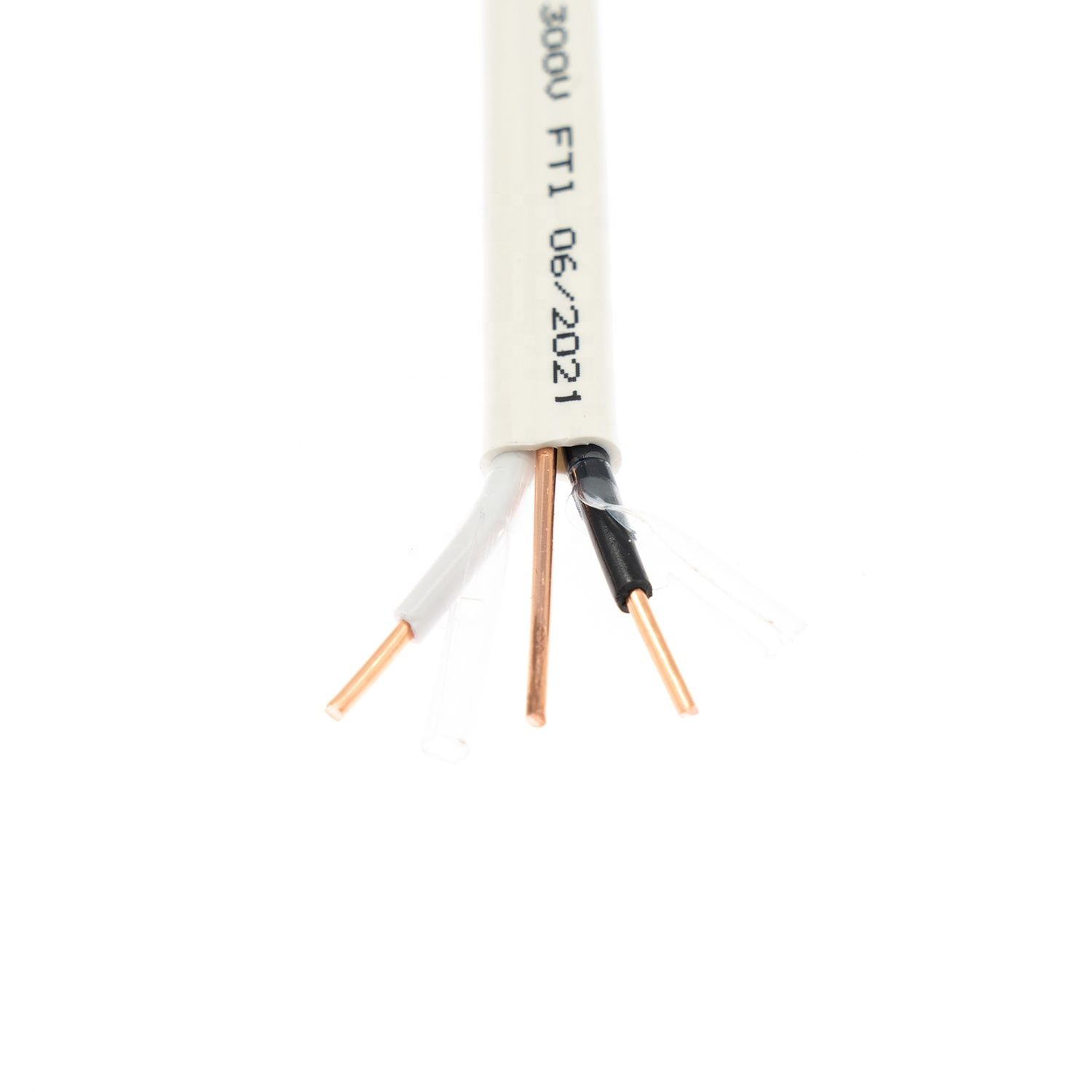

300V Canada standard NMD90 12/2 14/3 building wire CUL certified

TOP TEN CABLE MANUFACTURER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD’S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY

Applications:

NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.

The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further

information related to applications.

Codes / Standards

NMD90 cables meet or exceed the following requirements:

CONSTRUCTION

Canada standard C22.2 No. 48 (non-metallic sheathed cable)

Canadian Electrical Code1

NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is

manufactured using annealed (soft) copper conductors-compressed standing for stranded conductors; a

heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.

Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick identification in the Table below

JACKET COLOUR CODE – Typical Application Guide

•WHITE – General Residential Wiring

•RED – 2 Black and Red conductors – 208V-240V Circuits (no neutral)

•ORANGE – No. 10 AWG General Residential Wiring

•YELLOW – No. 12 AWG General Residential Wiring

•BLUE – No. 14 AWG – 2 black and white conductors – 120V Arc Fault Circuit Interupter Applications

CABLE PRINTING

12 AWG 2 CDRS BLACK/WHITE NMD90 NYLON 300 VOLTS FT1

NMD90 jackets which reduces the coefficient of friction, allowing cables to be installed without external

lubricants, resulting in reduced labour and materials costs.

PVC / NYLON INSULATION

PVC JACKET

GROUND CONDUCTOR COPPER CONDUCTOR PVC / NYLON INSULATION

PVC JACKET

Specification:

Size	Number of Conductors	Bonding Wire Size (Copper)	Insulation Thickness	Nylon Thicknes	Jacket Thickness	Approximate Overall Dimensions	Approximate Net Cable Weight	Ampacity 30°C Ambient
AWG		AWG	mm	mm	mm	mm	kg/km	A
14	2	14	0.76	0.1	0.76	4.9 x 9.9	99	15
12	2	14	0.76	0.1	0.76	5.3 x 10.7	127	20
10	2	12	0.76	0.1	0.76	5.9 x 12.2	181	30
						(diameter)
14	3	14	0.76	0.1	0.76	8.8	126	15
12	3	14	0.76	0.1	0.76	9.7	166	20
10	3	12	0.76	0.1	0.76	10.9	239	30
8	3	10	0.89	0.12	1.14	14.1	391	45
6	3	8	1.14	0.15	1.14	17.2	601	65
4	3	8	1.14	0.15	1.52	20.3	876	85
3	3	6	1.14	0.15	2.03	22.8	1136	105
2	3	6	1.14	0.15	2.03	24.4	1355	120

NMD90 Packing picture

Other cables we can offer in the North American market:

1. Service entrance cable

2. SEU/SER/SE

3. XHHW/RHW/RHH

4. MV 90/105 URD

5. THW/THHN/THWN

6. MC/AC/AC90/TECK series cables

7. Portable power cable( type SOOW, G, G-GC, SHD-GC)

8. welding cable

9. photo voltaic(PV) wire

10. diesel locomotive cable

11. power and control tray cable

12. bus drop cable

13. DG cable

14. shipboard cable

15. telecommunication cables

16. AC cables

17. AWM cables
